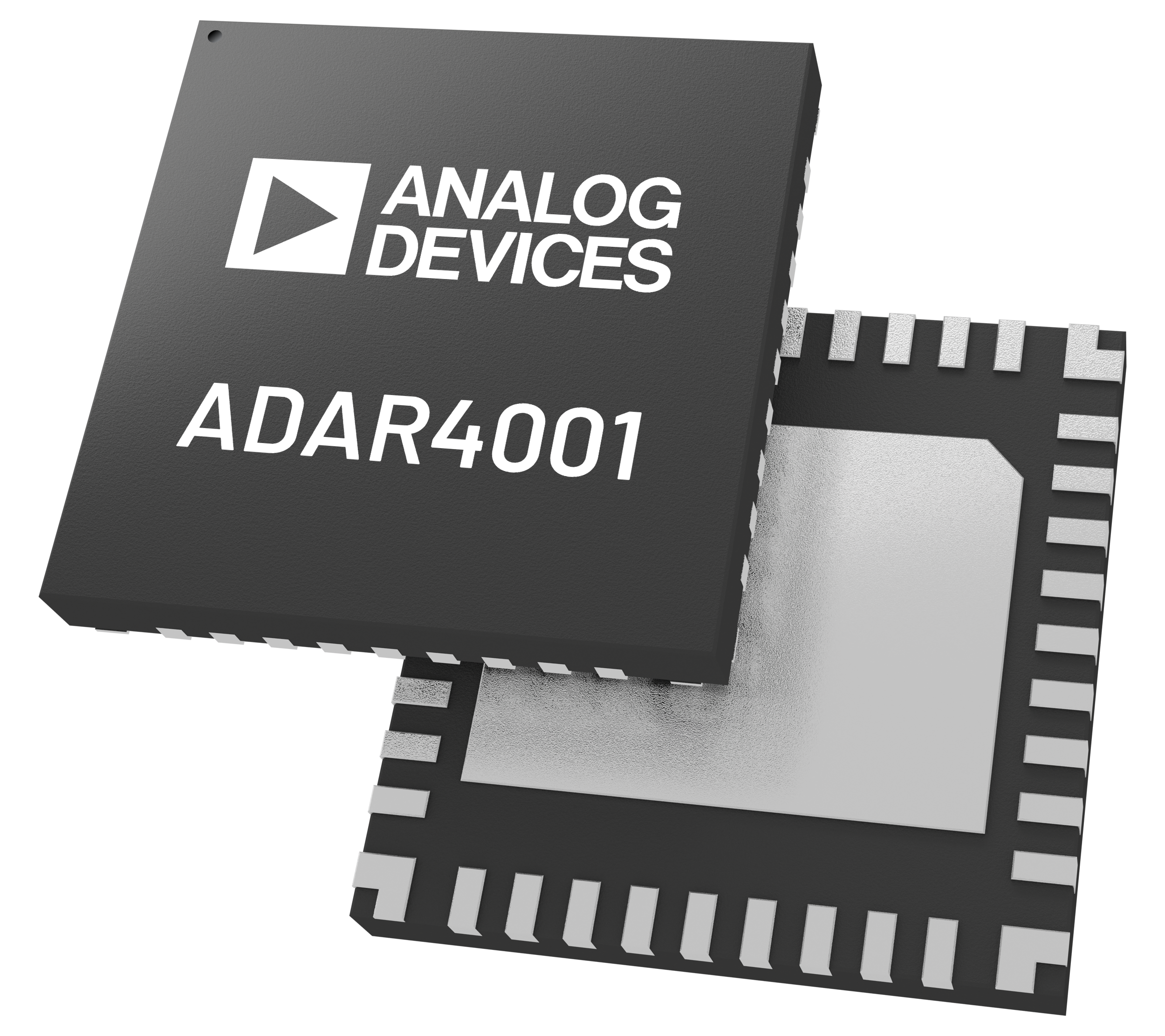

ADAR4001
推荐新设计使用2 GHz to 18 GHz 4 Channel/Single Beam Broadband Receive True Time Delay Unit
- 产品模型
- 2
产品详情
- 2 GHz to 18 GHz frequency range
- Programmable gain: 6-bit resolution
- 31.1 dB adjustment range
- 0.5 dB step size
- Programmable time delay: 7-bit resolution
- Programmable Time Delay Modes
- TD_Mode0 : 0 to 508ps range, 4ps resolution
- TD_Mode1 : 0 to 254ps range, 2ps resolution
- Programmable amplifier bias settings
- 3-wire and 4-wire SPI
- Package: 6 mm × 6mm LFCSP
ADAR4001 is a 2 to 18 GHz receiver that contains a true time delay unit (TDU) and a digital step attenuator (DSA). Each of the 4 RF paths provide a 31.1 dB gain adjustment range and up to 508 ps of time delay, with resolution of less than 0.5 dB and as little as 2 ps, respectively, via DSA and TDU blocks. The TDU has two programmable operating modes. TD_Mode0 offers 508ps of time delay range and 4ps resolution, while TD_Mode1 offers 254ps of time delay range and 2ps resolution. Control of all the on-chip registers is through a simple 3-wire or 4-wire serial port interface (SPI). In addition, four address pins allow SPI control of up to 16 devices on the same serial lines. The random access memory (RAM) has storage for up to 64 beamstates and the on-chip sequencer selects and advances the beamstate being sourced from either the RAM or the FIFO.
ADAR4001 is available in a 36-lead 6 mm × 6mm LFCSP package and is specified from −40°C to +85°C.
APPLICATIONS
- Multi-Function Arrays
- SATCOM
- RADAR
- Data Links
- Test Equipment
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| ADAR4001ACPZ | 36-Lead LFCSP (6 mm x 6 mm x 0.75 mm) | ||
| ADAR4001ACPZ-R7 | 36-Lead LFCSP (6 mm x 6 mm x 0.75 mm) |
