32-Channel, High Voltage, Matched Precision Resistor Divider

AD45336 32-Channel Matched Resistor Divider

数据手册 (Rev. 0) 产品选型表

产品模型: 2

Viewing:

产品详情

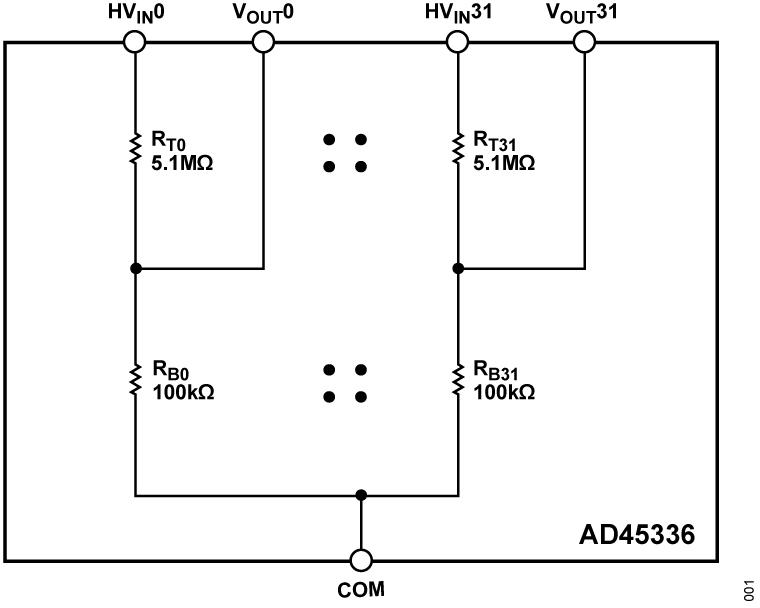

32-channel, matched precision resistor divider
Channel division: 52 typical
±10 ppm typical resistor matching ratio long-term drift per channel
5.2 MΩ total series resistance per channel
Up to a 225 V maximum input voltage

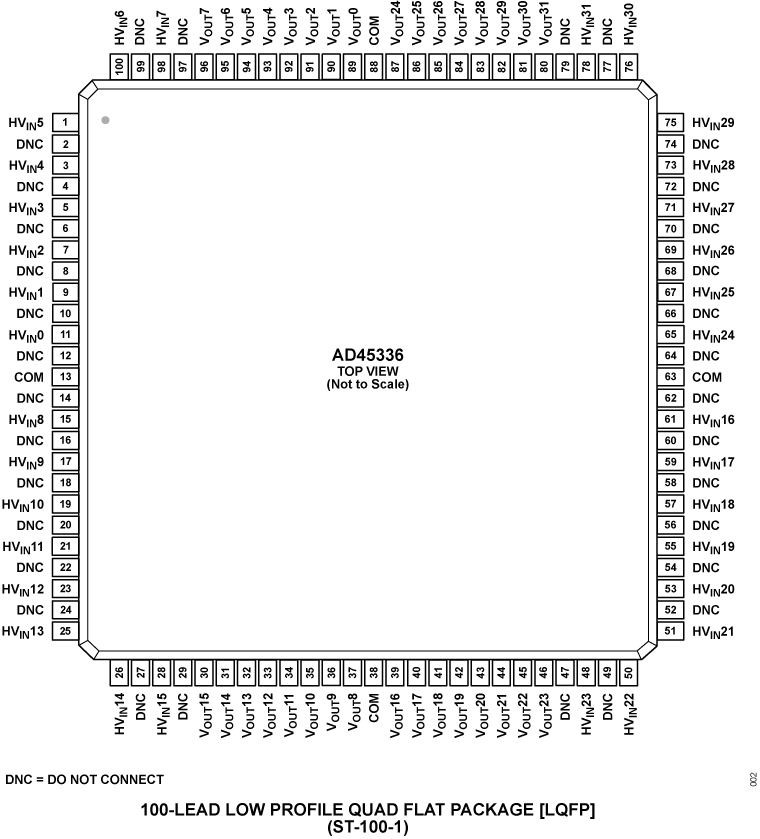

100-lead LQFP
−10°C to +85°C T_A range

产品模型: 2

参考资料

数据手册 1

AD45336: 32-Channel, High Voltage, Matched Precision Resistor Divider Data Sheet (Rev.0) 03/28/2025

用户手册 1

UG-2244: Evaluating the AD45336 32-Channel, High Voltage, Matched Precision Resistor Divider (Rev.0) 03/28/2025

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
AD45336KSTZ	100-Lead LQFP (14mm x 14mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD45336KSTZ-RL	100-Lead LQFP (14mm x 14mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

这是最新版本的数据手册

评估套件

Evaluating the AD45336 32-Channel, High Voltage, Matched Precision Resistor Divider

立即购买更多内容

特性和优点

A full-featured EVAL-AD45336EBZ evaluation board for the AD45336, which is a monitoring companion to the AD45335
Can operate in standalone mode or in companion mode with the EVAL-AD45335SDZ evaluation board, which must be purchased separately

产品详情

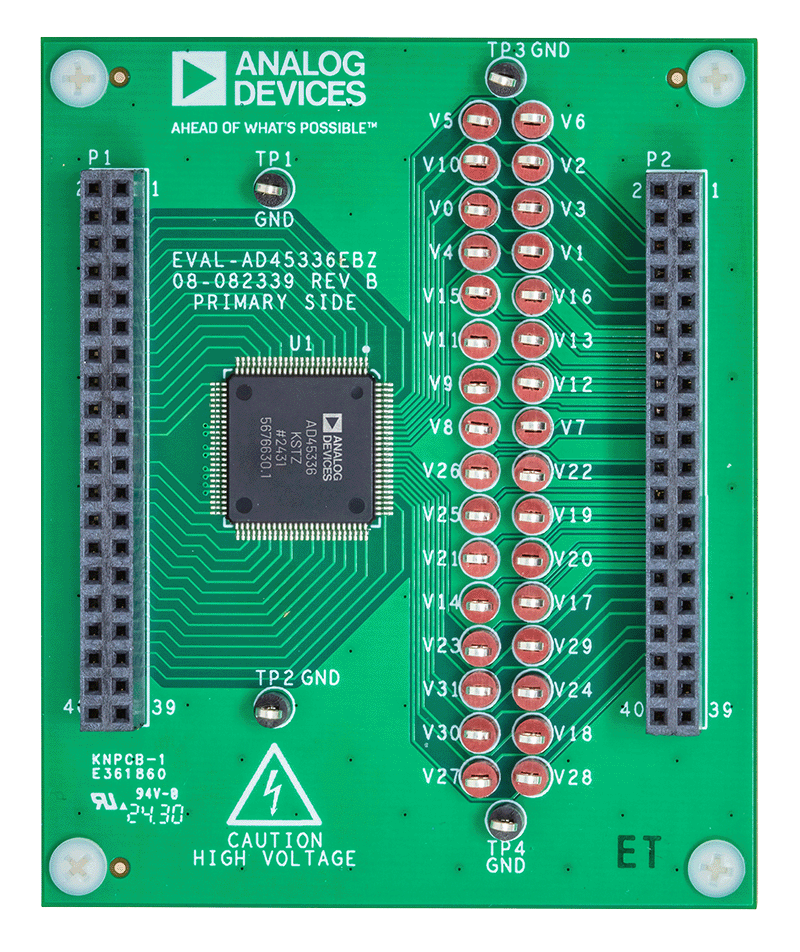

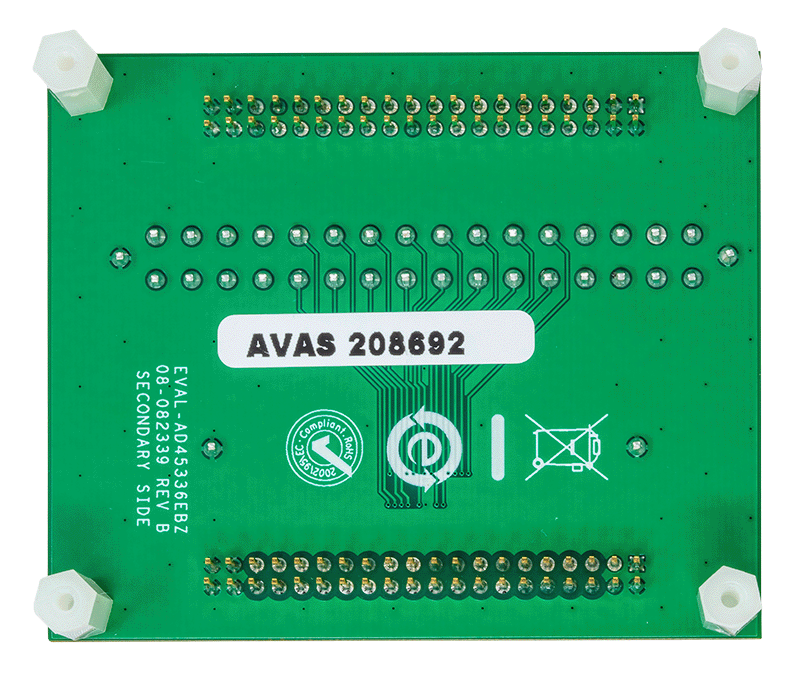

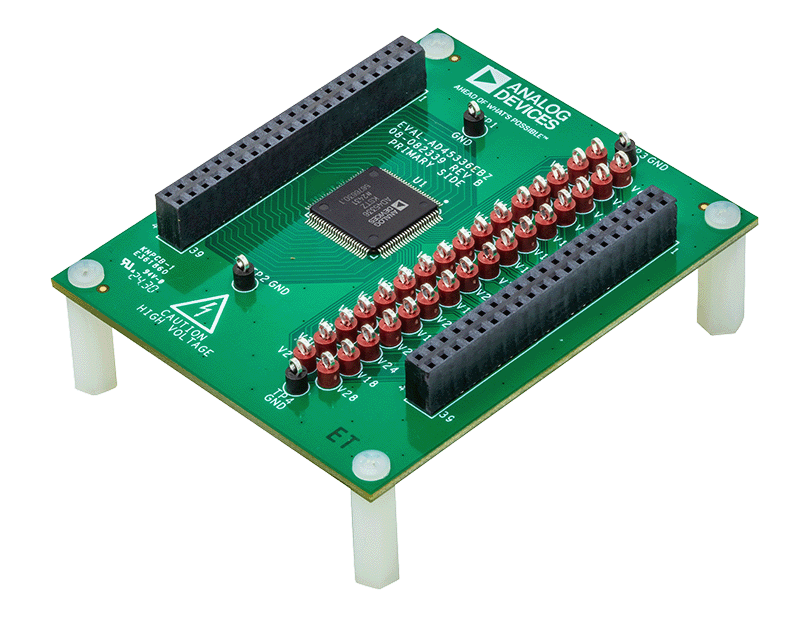

The EVAL-AD45336EBZ is a full-featured evaluation board for the AD45336, a 32-channel, high-voltage, matched precision resistor divider designed as a monitoring companion for the AD45335 high-voltage digital-to-analog converter (DAC).

The EVAL-AD45336EBZ is designed to help users quickly prototype AD45336 circuits, reducing design time. This board offers flexibility in operation because it can be used in standalone mode with custom input voltage supplies or in conjunction with the AD45335 DAC evaluation board (EVAL-AD45335SDZ), which is recommended.

For full details on the AD45335 and AD45336, see the AD45335 and AD45336 data sheets, which should be consulted in conjunction with this user guide when using these evaluation boards.
