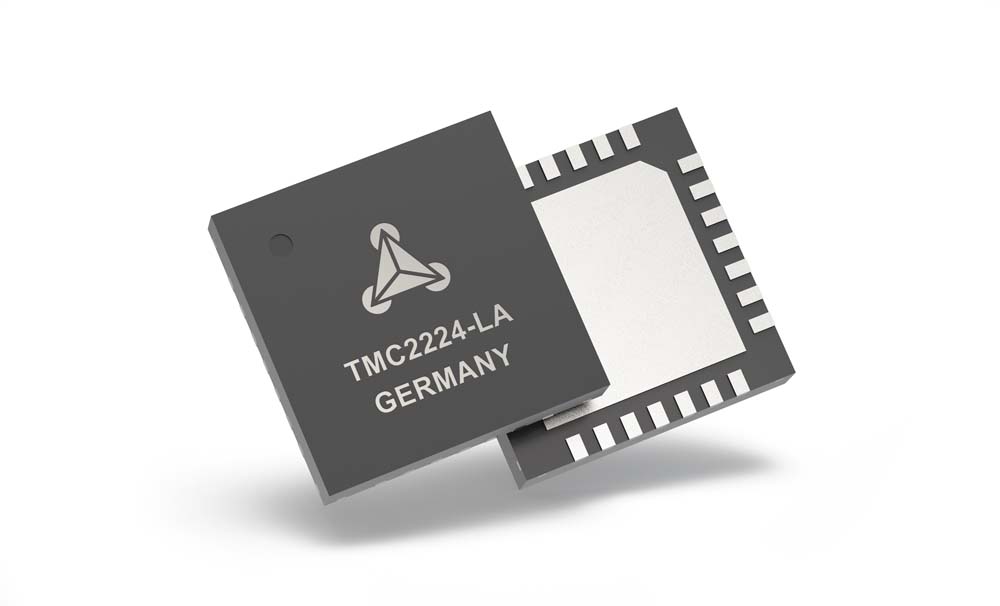

TMC2224

推荐新设计使用

Silent stepper motor driver 5 to 36V, up to 1.4A with S/D and UART Interface, 256 µSteps, SpreadCycle and Stealthchop

数据手册 (Rev. 1.14) 产品选型表
产品模型
2
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 2-phase stepper motors up to 2A coil current (peak)
  • STEP/DIR Interface with 2, 4, 8, 16 or 32 microstep pin setting
  • Smooth Running 256 microsteps by MicroPlyer™ interpolation
  • StealthChop2™ silent motor operation
  • SpreadCycle™ highly dynamic motor control chopper
  • Low RDSon LS 280mΩ & HS 290mΩ (typ. at 25°C)
  • Voltage Range 4.75 to 36V DC
  • Automatic Standby current reduction (option)
  • Internal Sense Resistor option (no sense resistors required)
  • Passive Braking and Freewheeling
  • Single Wire UART & OTP for advanced configuration options
  • Integrated Pulse Generator for standalone motion
  • Full Protection & Diagnostics
  • Choice of QFN and wettable QFN packages for best fit
TMC2224
Silent stepper motor driver 5 to 36V, up to 1.4A with S/D and UART Interface, 256 µSteps, SpreadCycle and Stealthchop
tmc2224-la tmc2224 tmc2224-v2
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 2

应用笔记 2

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

设计工具 1

评估套件

eval board
schematic 1
TMC2224-EVAL

Evaluation Board for TMC2224

立即购买 更多内容

特性和优点

  • SpreadCycle™
  • StealthChop2™
  • MicroPlyer™
  • 1 to 256 Microsteps
  • 1.35ARMS, 36V

产品详情

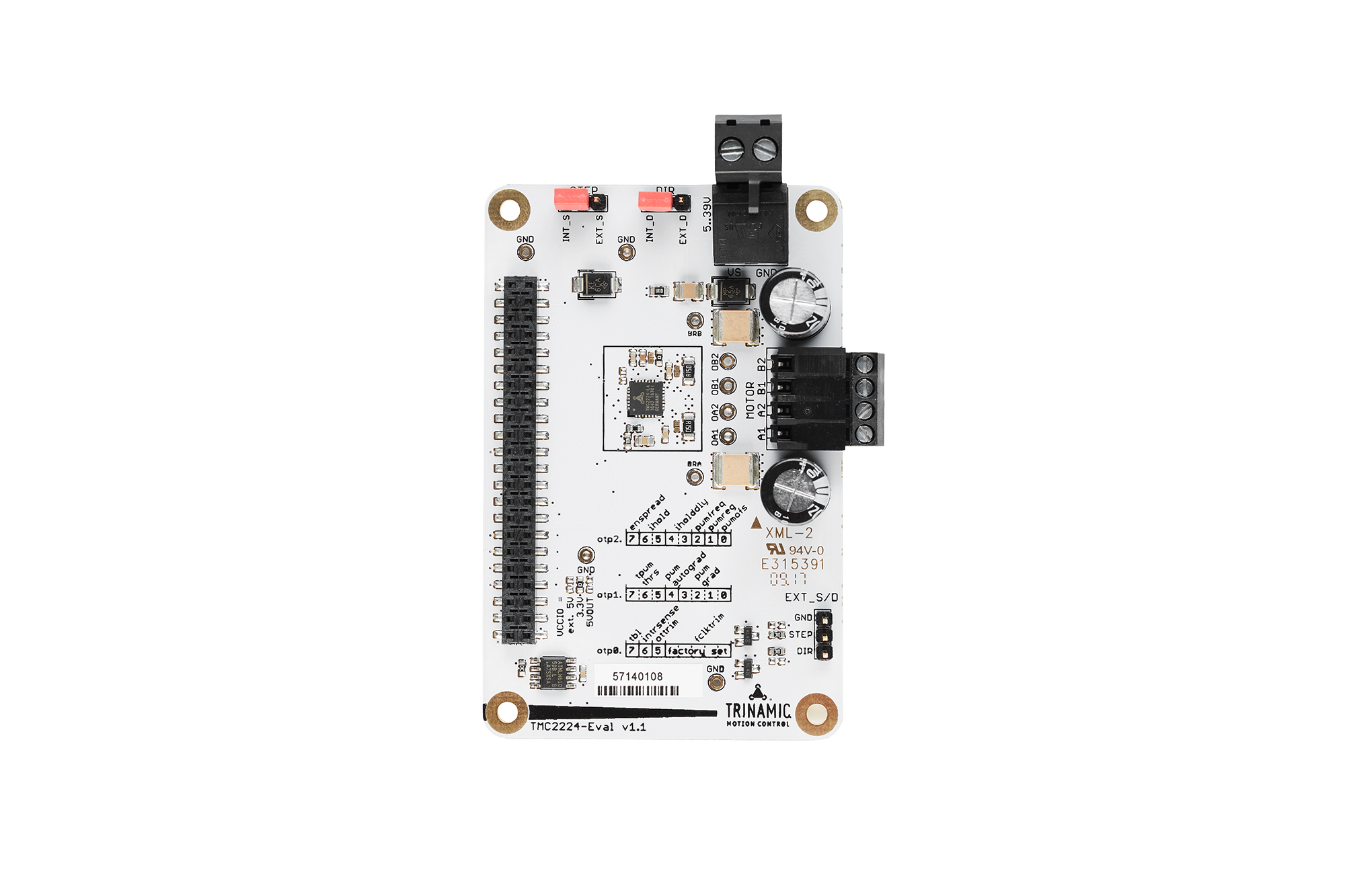

The TMC2224-EVAL allows you to explore all functions of the TMC2224-LA.

The TMC2224-EVAL-KIT is a set of one MCU board Landungsbruecke, a TMC22xx bridge board and one TMC2224-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For diagnosis, all signals between MCU and TMC2224 are accessible with probes on the bridge board. TMC2224-EVAL can be used with or without the Landungsbruecke MCU board.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.

More about the TMCL-IDE
TMC2224-EVAL
Evaluation Board for TMC2224
tmc2224-eval
