ADAR5001

推荐新设计使用

10 GHz to 40 GHz, 2-Way RF Splitter Combiner

数据手册 (Rev. 0) 产品选型表
产品模型
2
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 2-way RF splitter combiner
  • Frequency range: 10 GHz to 40 GHz
  • Insertion loss (excess of 3 dB):
    • −1 dB from 10 GHz to 18 GHz
    • −1.1 dB from 18 GHz to 27 GHz
  • Return loss (Port S1):
    • −15 dB from 10 GHz to 18 GHz
    • −12 dB from 18 GHz to 27 GHz
  • Isolation:
    • −20 dB at 10 GHz to 18 GHz
    • −23 dB from 18 GHz to 27 GHz
  • 1.460 mm × 1.460 mm × 0.500 mm, wafer level chip-scale package (WLCSP)
ADAR5001
10 GHz to 40 GHz, 2-Way RF Splitter Combiner
ADAR5001 Functional Block Diagram ADAR5001 Pin Configuration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

技术文章 1

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

S-参数 1

评估套件

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADAR5001

Evaluating the ADAR5001 10 GHz to 40 GHz, 2-Way RF Splitter Combiner

立即购买 更多内容

特性和优点

  • 4-layer, Rogers RO 4350B
  • 2.92 mm connectors
  • Microstrip traces
  • Through, open, and short calibration paths (depopulated)

产品详情

ADAR5001-EVALZ is a copper clad, 4-layer printed circuit board (PCB) fabricated from 0.254 mm (10 mil) thick, Rogers 4350B. The central core is prepreg, and there is an unused FR4 layer on the underside, which forms a nominal thickness of 1.574 mm (62 mils). The P1, P2, and SUM ports on the ADAR5001-EVALZ are populated with 2.92 mm, female coaxial connectors, and the corresponding microstrip RF traces have a 50 Ω characteristic impedance. To calibrate board trace losses, a through calibration path is provided between the J6 and J7 connectors. Open and short paths are provided on the J5 and J4 connectors. Connectors J4, J5, J6 and J7 are de-populated and must be added to use the calibration traces. Refer to Table 1 and Figure 3 for the through calibration path performance.

For full details on the ADAR5001, see the ADAR5001 data sheet, which must be consulted in conjunction with this user guide when using the ADAR5001-EVALZ.


EVAL-ADAR5001
Evaluating the ADAR5001 10 GHz to 40 GHz, 2-Way RF Splitter Combiner

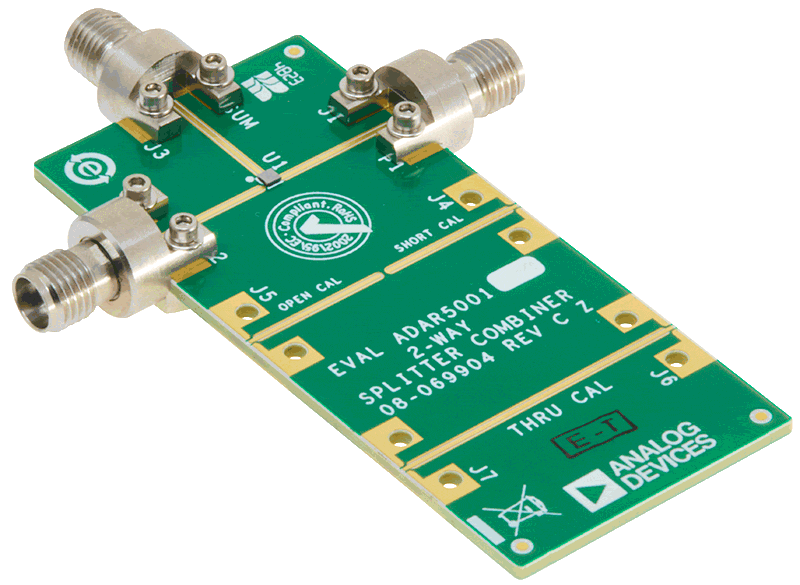

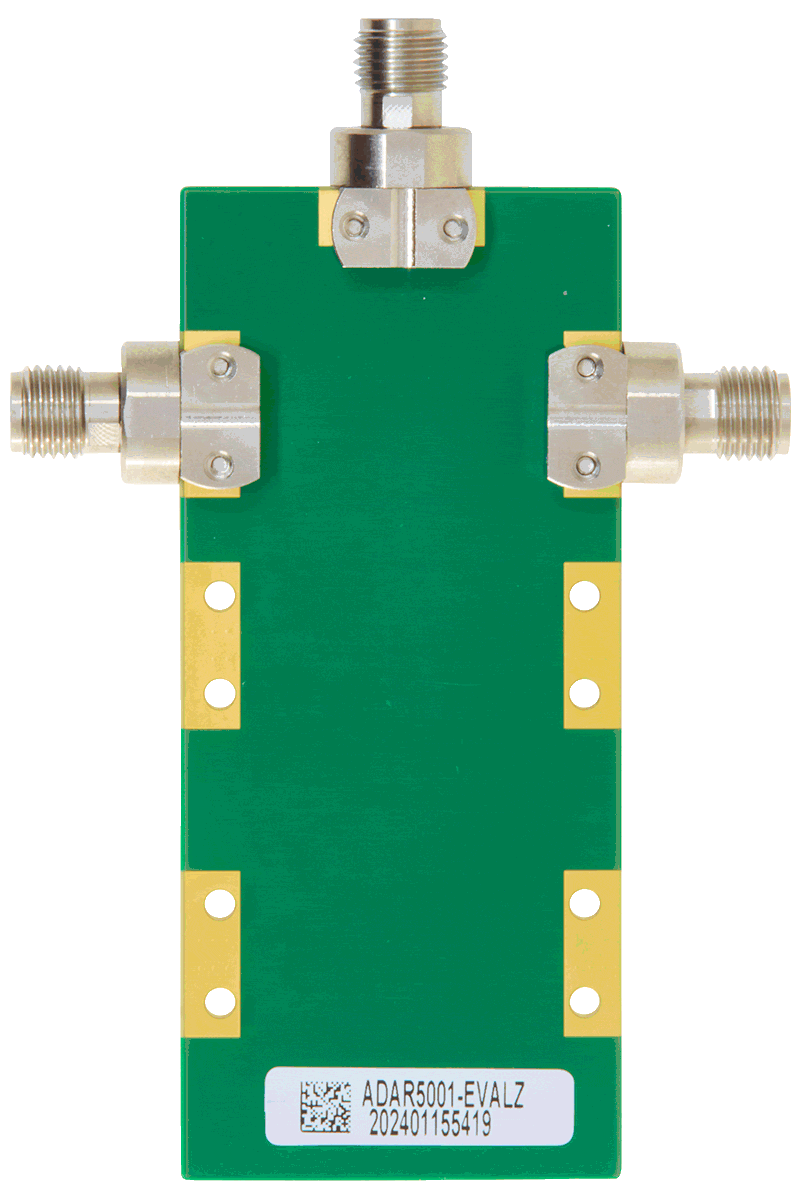

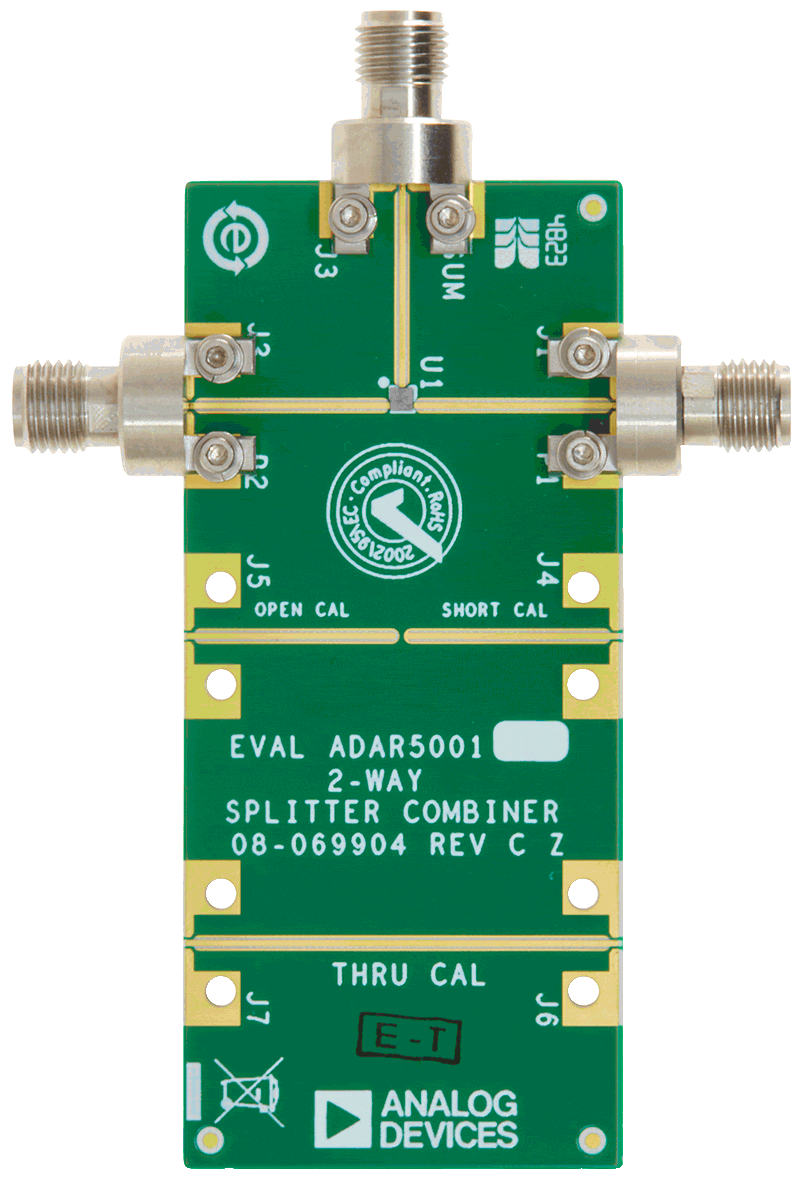

EVAL-ADAR5001 Board Photo Angle View EVAL-ADAR5001 Board Photo Top View EVAL-ADAR5001 Board Photo Bottom View
