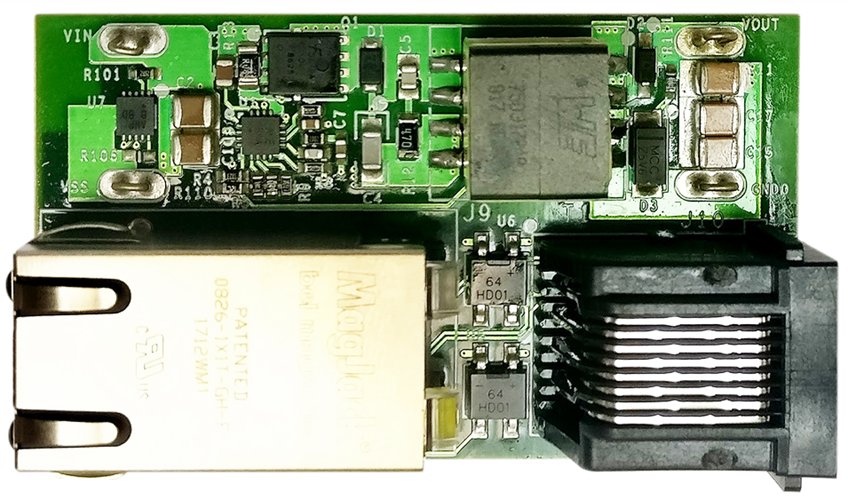

MAXREFDES1175

説明

Power over Ethernet (PoE) is a technology that allows network cables to deliver power to a powered device (PD) through power-sourcing equipment (PSE) or midspan, and has many advantages over traditional methods of delivering power. PoE allows power and data to be combined, removing the need for altering the AC mains infrastructure and can be installed by non-electricians. PoE is an intelligent system designed with protection at the forefront, preventing overload, underpowering, and installation errors, while allowing simple scalability and reliability.

The MAX17690 implements an innovative algorithm to accurately determine the output voltage by sensing the reflected voltage across the primary winding during the flyback time interval. By sampling and regulating this reflected voltage when the secondary current is close to zero, the effects of secondary-side DC losses in the transformer winding, the PCB tracks, and the rectifying diode on output voltage regulation can be minimized. The MAX17690 also compensates for the negative temperature coefficient of the rectifying diode.

機能と利点

• IEEE 802.3af/at Compliance
• Thermally Enhanced, 3mm × 3mm, 10-Pin TDFN Package (MAX5969B)
• 30V to 60V Input Voltage Range
• Programmable Switching Frequency from 50kHz to 250kHz
• Programmable Input Enable/UVLO Feature
• Programmable Input Overvoltage Protection
• Adjustable Soft-Start
• 2A/4A Peak Source/Sink Gate Drive Capability
• Hiccup Mode Short-Circuit Protection
• Fast Cycle-by-Cycle Peak Current Limit
• Thermal Shutdown Protection
• Space-Saving, 16-Pin, 3mm × 3mm TQFN Package
• -40°C to +125°C Operating Temperature Range
