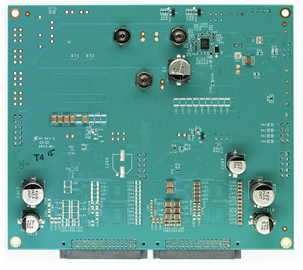

MAX16610-W5EVKIT

機能と利点

• High-Density Optimized Design
  • 3x3 Low RDS_ON Power MOS
  • 12-Layer Layout
  • Hot Swap and Bias Power Supply Already Implemented
• Highly Efficient Solution
  • Low-Profile Inductors Optimized for STC Resonant Application
  • No Transformers Required
  • Resonant ZCS (Zero-Current Switching) with Adaptative Algorithm
• Cost-Effective Solution
  • Low-ESR, Low-Cost Capacitors (No Low-Value, Low-Tolerance U2J Ceramic Capacitors have been used)
  • Integrated Gate Driving
  • Integrated Floating Power Supply for All 10 Power FETs
  • No Heat Sink is Required (Air Flow Only for Higher TDP)
• Protection Features
  • Input Peak Overcurrent Protection
  • Output Overvoltage Protection with SOAR Mitigation
  • Input Overvoltage Protection
  • Bias and Gate Driving Undervoltage Lockout
  • Fault Flag Open Collector Signal Pin
  • Power-Good Signal
• High-Current Output Connector Compatible with Maxim Second Stage Solution EV Kit
• Output Adapter Board Available for a Stand-Alone Test Bench Use
• Proven PCB Layout
• Fully Assembled and Tested
