EVAL-HMC8410
HMC8410 Evaluation Board
トップへ
製品概要
製品概要

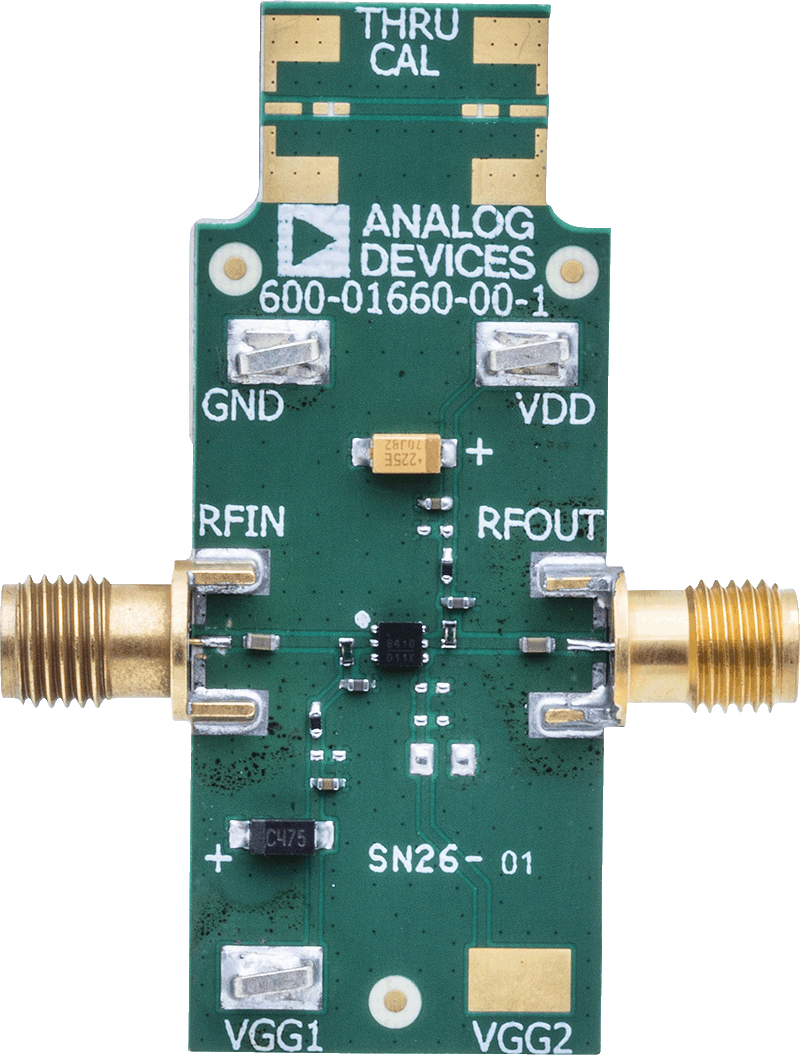

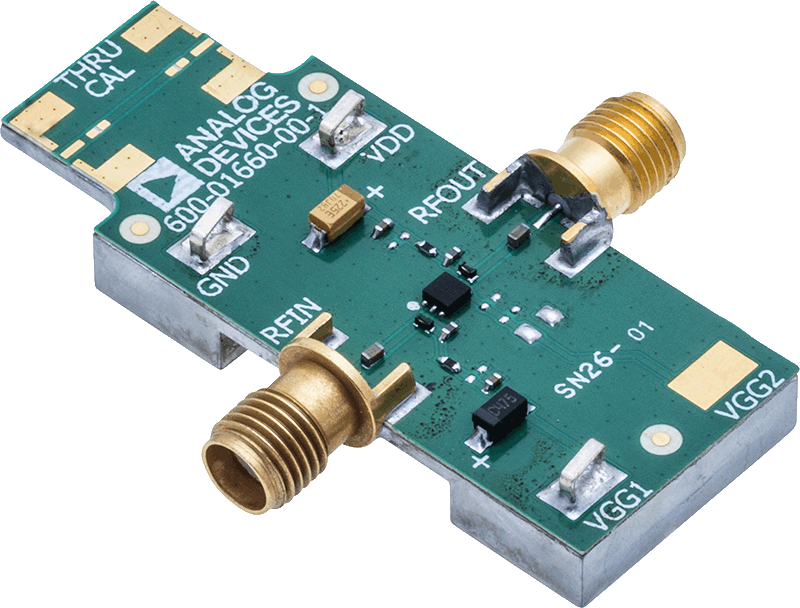

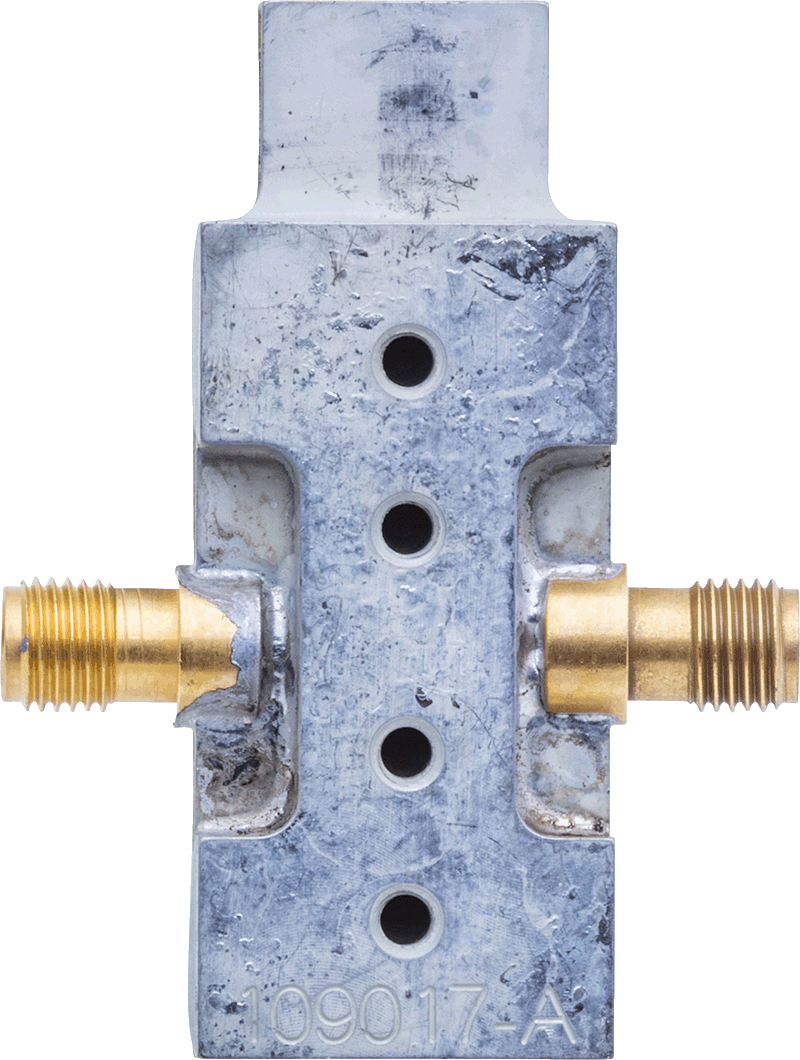

The HMC8410 evaluation board is a 4-layer board fabricated using a Rogers 4350 and the best practices for high frequency RF design. The RF input and RF output traces have a 50 Ω characteristic impedance.
The HMC8410 evaluation board and populated components operate over the −40°C to +85°C ambient temperature range.
関連資料
-
HMC8410 Gerber Files2016/07/28ZIP3M
