EVAL-HMC8191
HMC8191 Evaluation Board
トップへ
製品概要
製品概要

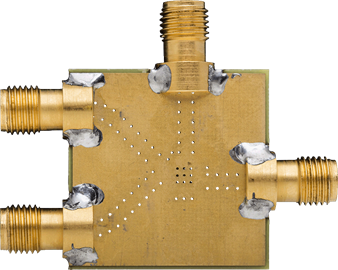

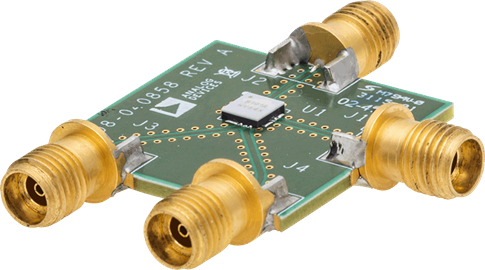

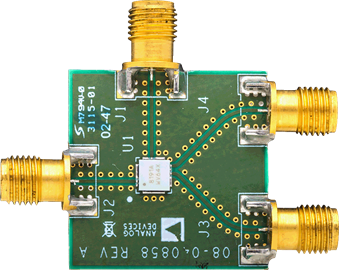

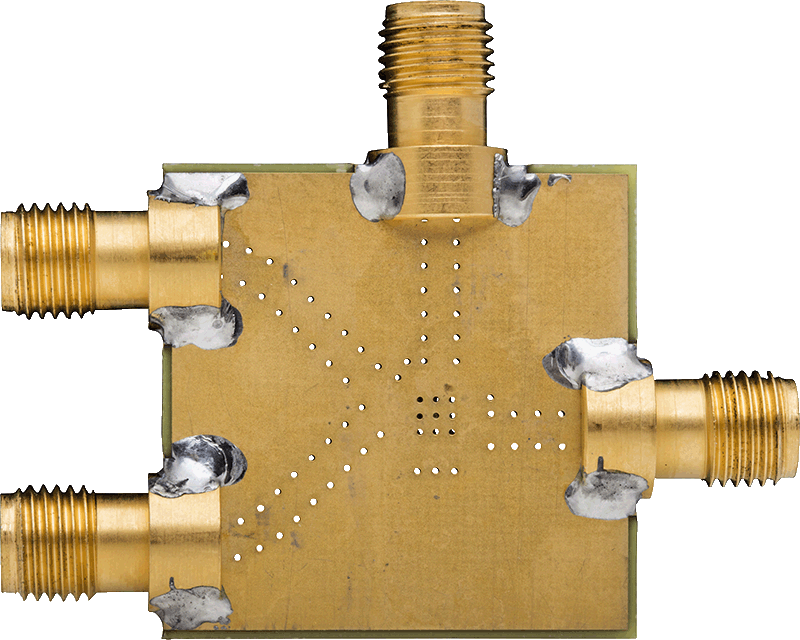

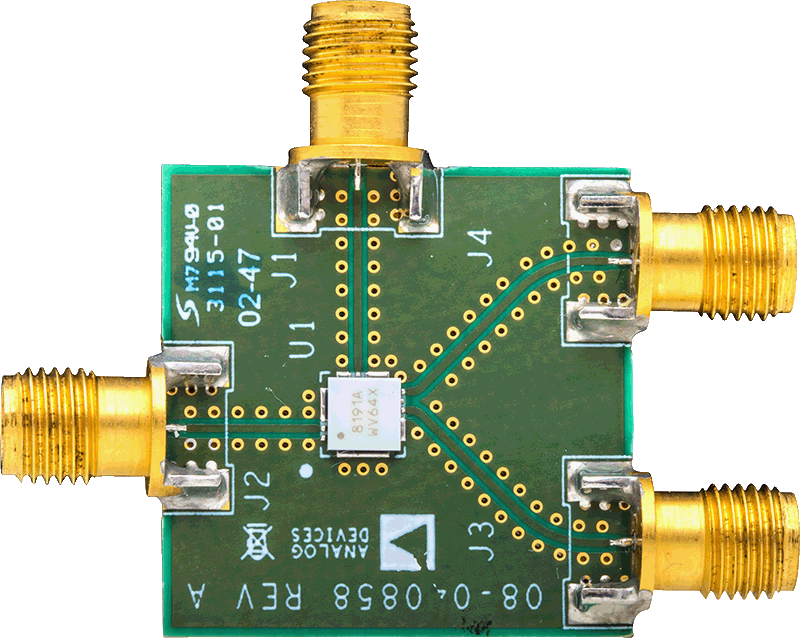

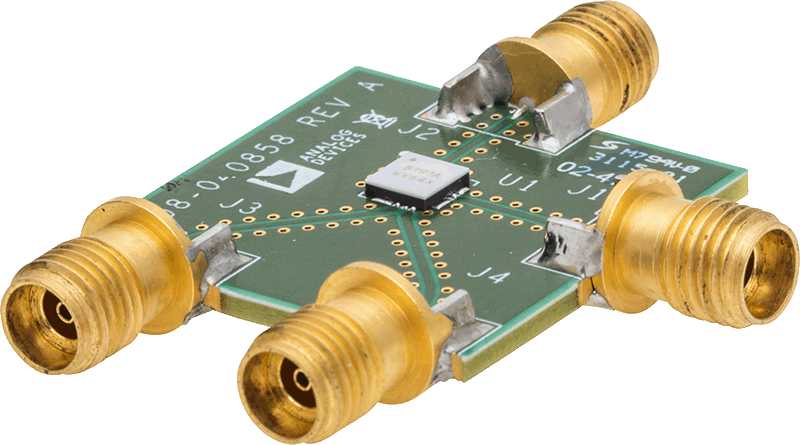

The EV1HMC8191LC4 evaluation board PCB is 4 layers Rogers 4350B. It designed as application support for the HMC8191. The signal lines are 50 Ω impedance for connection and matching to the package.
The board does not require any power supply or USB connection.
関連資料
-
Land Pattern File2021/12/07ZIP27 K
-
HMC8191 Gerber Files2017/07/10ZIP191 K
