製品概要

機能と利点

  • Resolution: 1024×1024 TOF sensor
  • Illumination: FOI 81°x81° - 940nm VCSEL
  • Field of view: FOV 75°x75°
  • Operating range: 0.4 to 4m @ 15% reflectance (native)
  • Depth Noise: <15mm
  • Accuracy: ± 3mm depth error

製品概要

The EVAL-ADTF3175D-NXZ time of flight (ToF) evaluation kit is showcasing the ADTF3175 module with ADI's depth ISP, the ADSD3500. The kit supports ethernet over USB connectivity to a PC for real-time visualization, capture and post processing of depth data. The kit includes host PC software (Windows) and an open source multi-platform SDK for custom application development.

マーケット＆テクノロジー

対象となる製品

パッケージの内容

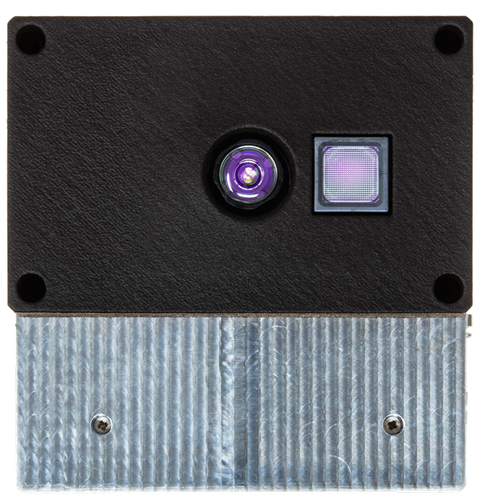

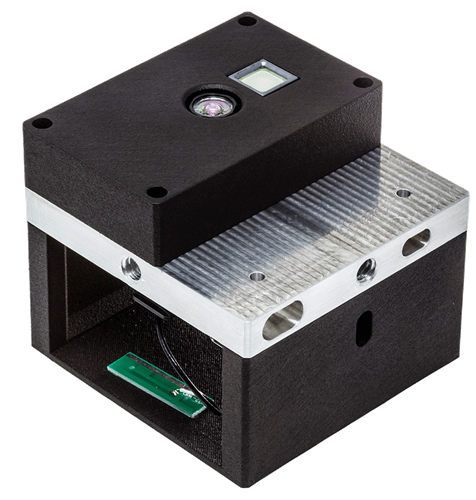

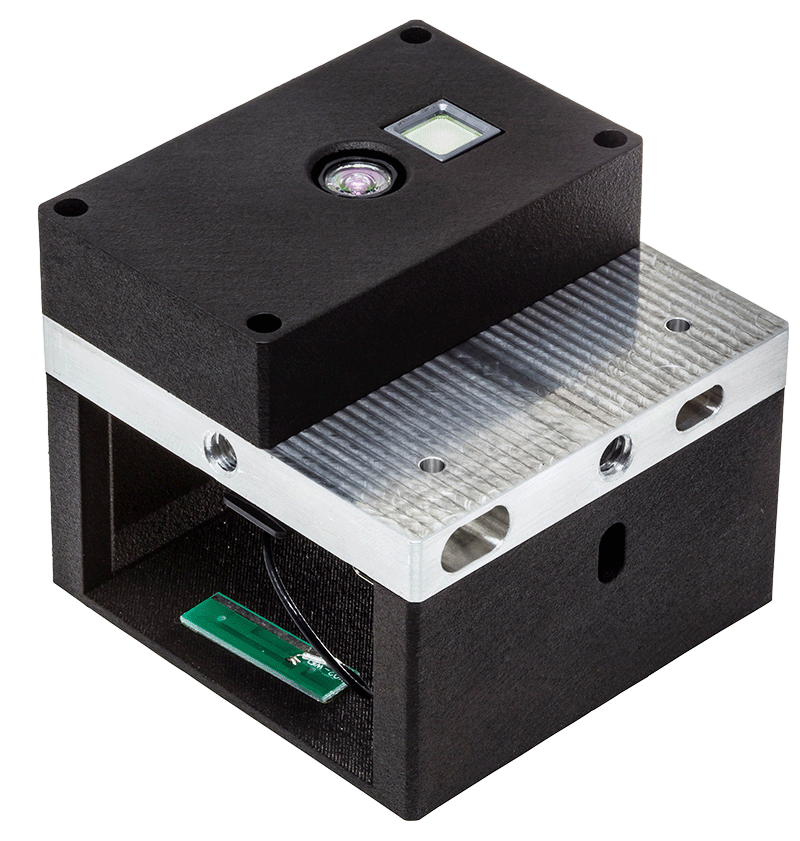

  • ADTF3175D Evaluation Module

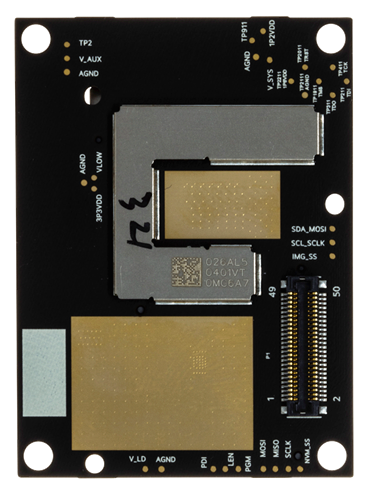

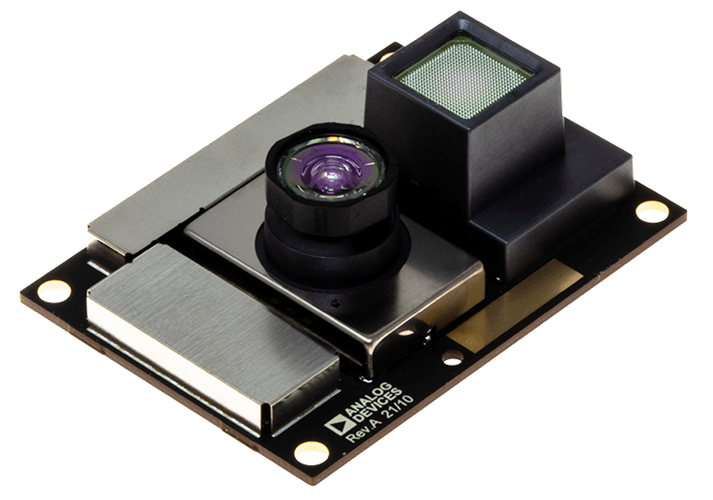

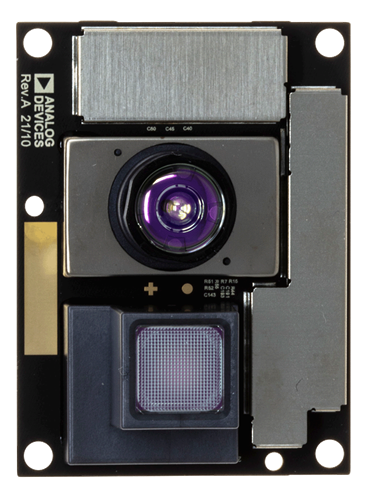

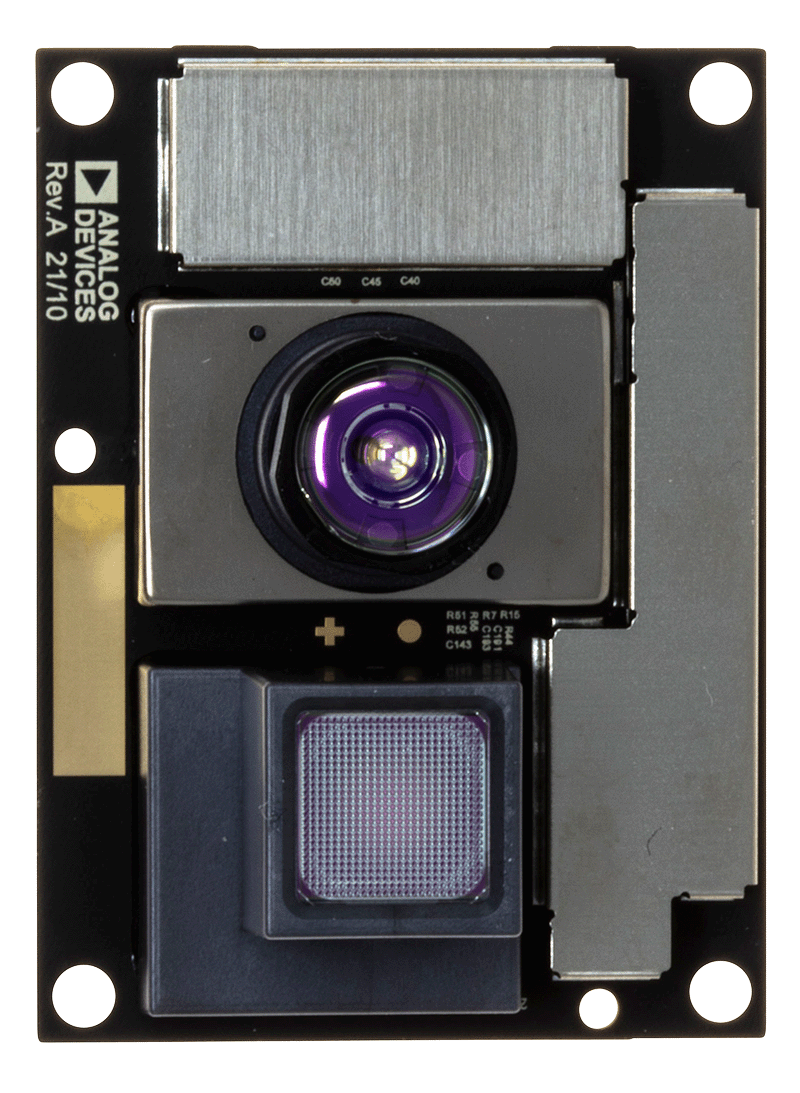

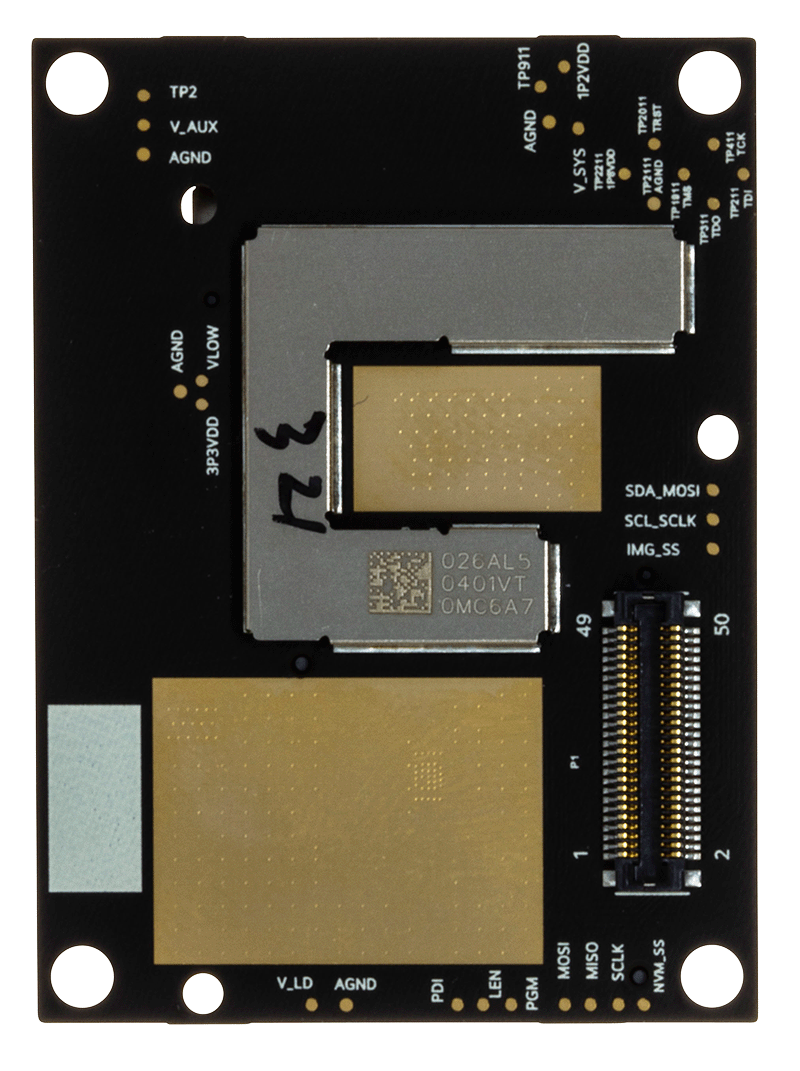

    • ADTF3175 Module
    • i.MX8 M Plus SOM (SolidRun)
    • Camera Interface Board
    • ADSD3500 Interposer board
  • 16GB flashed microSD card (Inserted in module sd card slot)
  • USB-C to USB-C cable. Supports PD 2.0, and USB 3.1

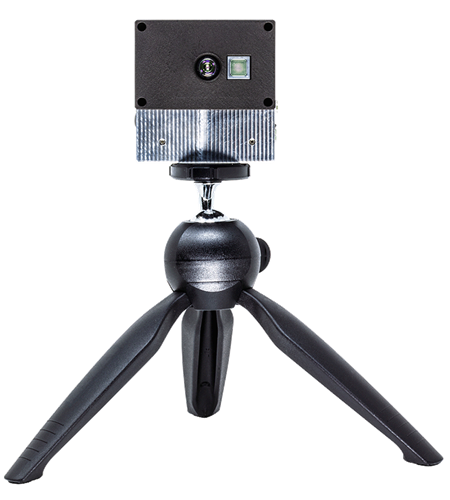

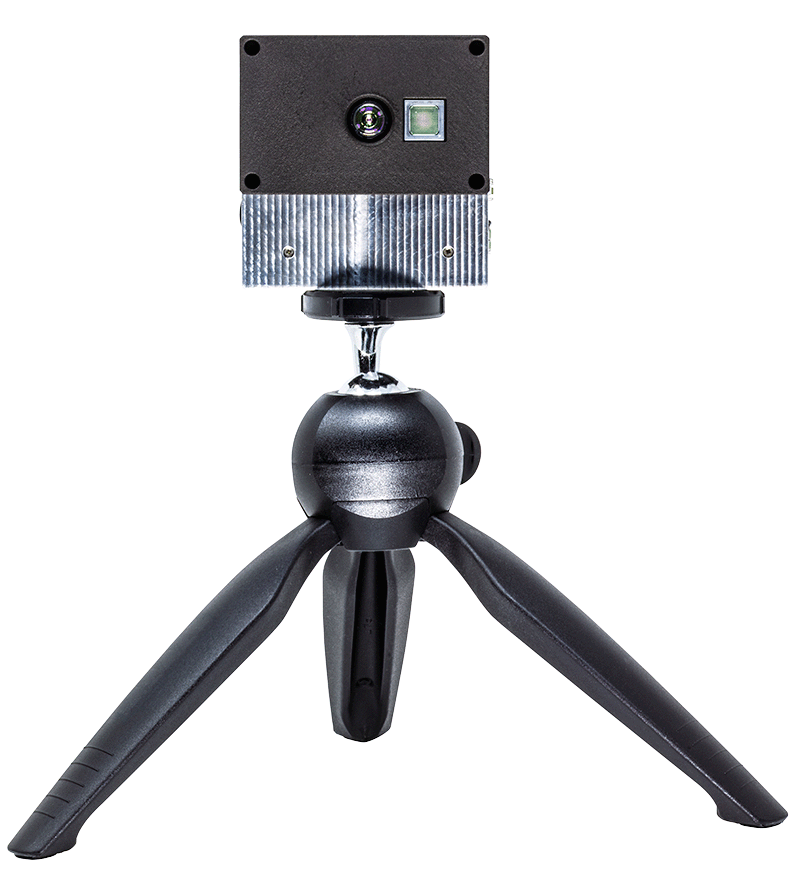

  • Tripod
