EVAL-AD8351
AD8351 Evaluation Board
トップへ
製品概要
製品概要

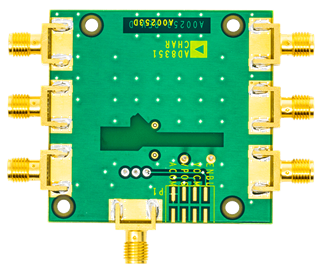

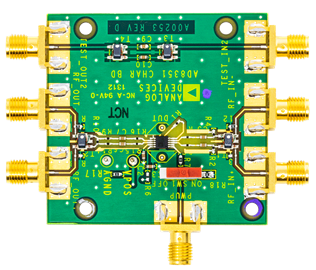

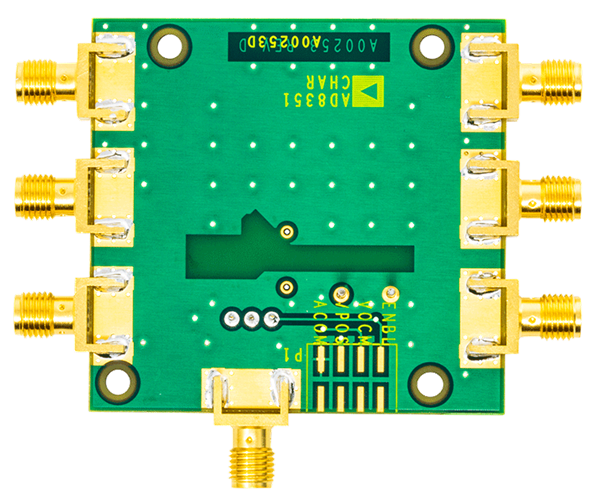

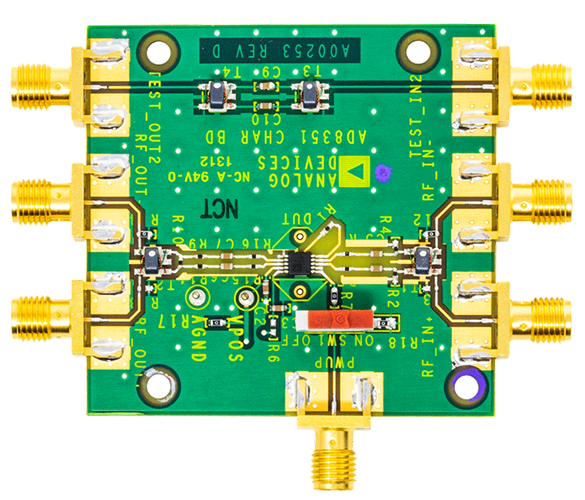

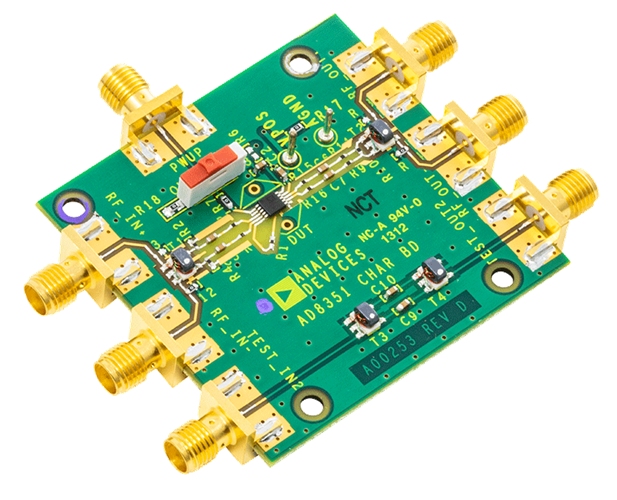

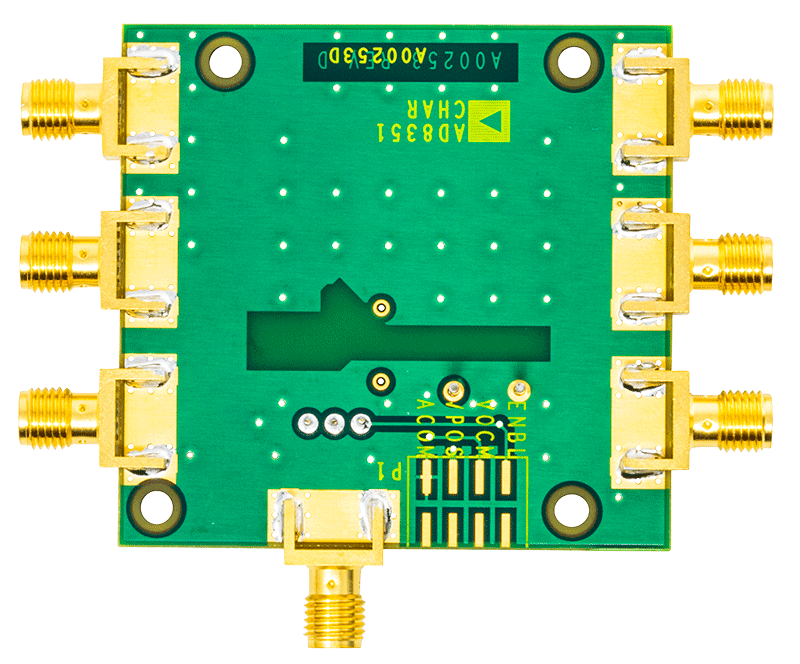

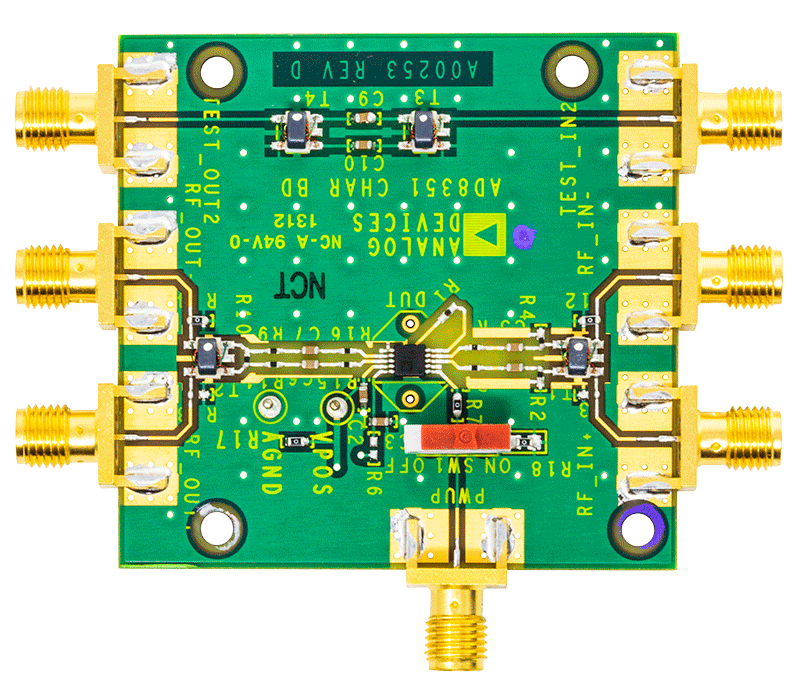

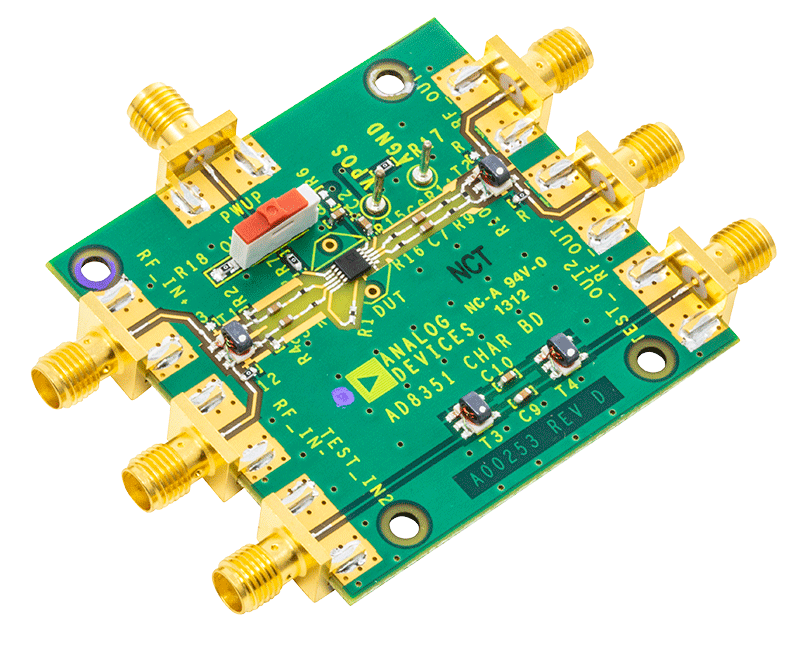

AD8351-EVALZ is a fully populated, 4-layer, FR4-based evaluation board designed to allow easy evaluation of all features of the AD8351. The evaluation board integrates bypassable transformers to allow single ended or differential inputs and output, place holders for an impedance matching network and the evaluation board requires only a single supply within the range of 3.0 V to 5.5 V.
関連資料
-
AD8351: 差動アンプ、低歪み、RF/IF用 (Rev. A)2008/09/10PDF537 kB
-
EVAL-ADDIFFAMP: Differential Driver Evaluation Board Data Sheet (Rev. A)2000/01/01PDF103 kB
-
AD8351 Gerber Files2011/09/11ZIP187 kB
