EVAL-AD7190
OBSOLETE: AD7190 Evaluation Board
トップへ
製品概要
製品概要
This evaluation board is obsolete and no longer recommended. The replacement board is the EVAL-AD7190ASDZ.

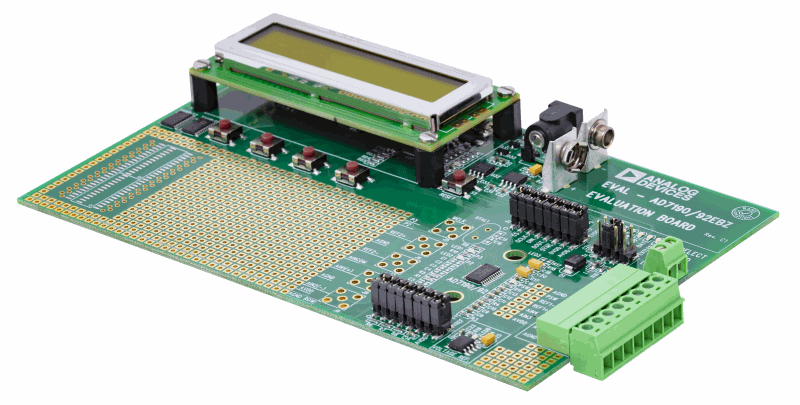

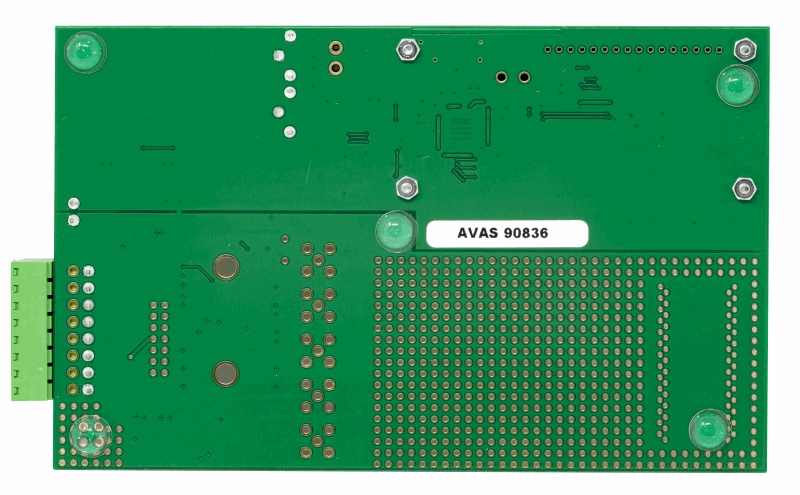

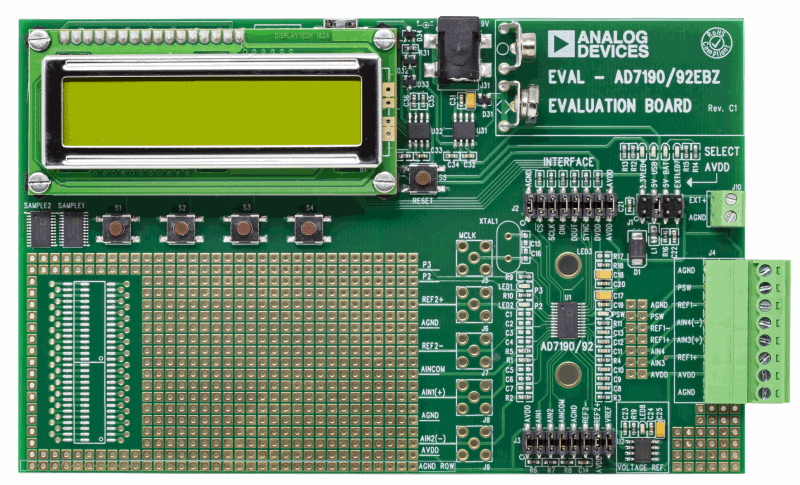

The EVAL-AD7190EBZ is a fully featured evaluation board for the AD7190. The evaluation board can be operated in standalone mode (either battery-powered or with external power supply) or connected to a PC via a standard USB interface. When operated with a PC, software is provided enabling the user to perform detailed analysis of the ADC's performance.
Please note: This Evaluation software does not run on Windows 8 or Windows 10 (USB driver is non-compliant with OS >Windows 7).
関連資料
-
Evaluation Software2011/02/21ZIP
-
Evaluation Board Schematic2011/02/21PDF
-
Gerber Files2011/02/21ZIP
