DC330A
LT1761ES5-BYP/SD Demo Board | 2 Circuits: Low Output Noise and Low Current Shutdown, 2.3V ≤ VIN ≤ 20V, VOUT = 1.22/1.8/2.0/2.5/2.8/3.0/3.3/5.0V @ 100mA
トップへ
製品概要
製品概要
Demonstration circuit DC330 comprises two low noise micropower voltage regulators using the 100mA output LT1761 in the 5-lead SOT-23 package. The demo board includes two circuits: one using the LT1761-BYP which allows the internal reference to be bypassed to reduce output voltage noise, and the other using the LT1761-SD which has a low current shutdown feature. Both circuits accept a 2.3V to 20V input and have a jumper-selectable 1.22V/1.5V/1.8V/2.5V/2.8V/3.0V/3.3V/5.0V/Adj output.
関連資料
-

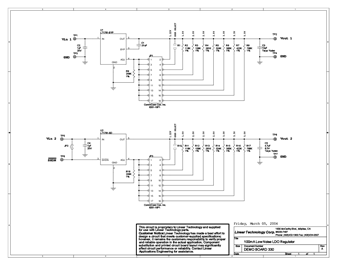

DC330A - Schematic2009/09/24PDF85K
-
DC330A - Demo Manual2009/09/24PDF188K
-
DC330A - Design File2009/09/24ZIP440K
