DC2430A
DC2430A Linduino SPI 1:8 Expander Demonstration Board (DC2026 Included)
トップへ
製品概要
製品概要
Demonstration circuit 2430A is a Linduino® SPI 1:8 Expander Shield. The DC2430A shield routes SPI and I2C signals from one DC2026 to one of eight selectable QuikEval™ connector sites. When a DC2430A QuikEval connector site is selected, an LED will illuminate next to the active site.
関連資料
-

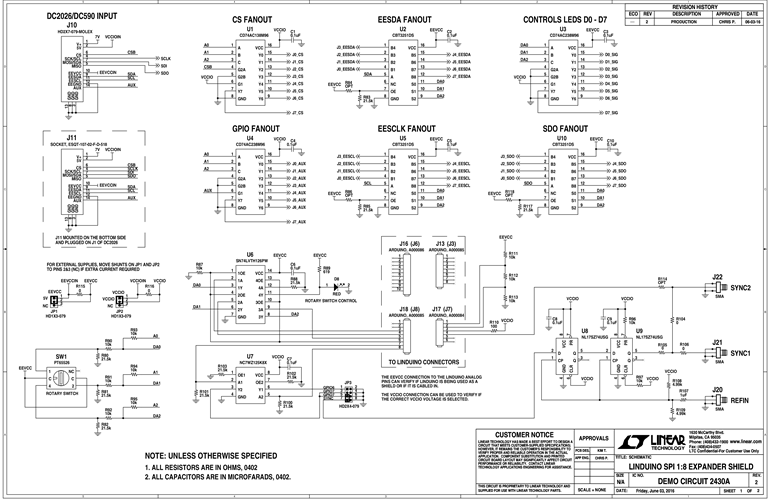

DC2430A - Schematic2016/09/01PDF65K
-
DC2430A - Demo Manual2016/09/01PDF1M
-
DC2430A - Design Files2016/09/01ZIP1M
