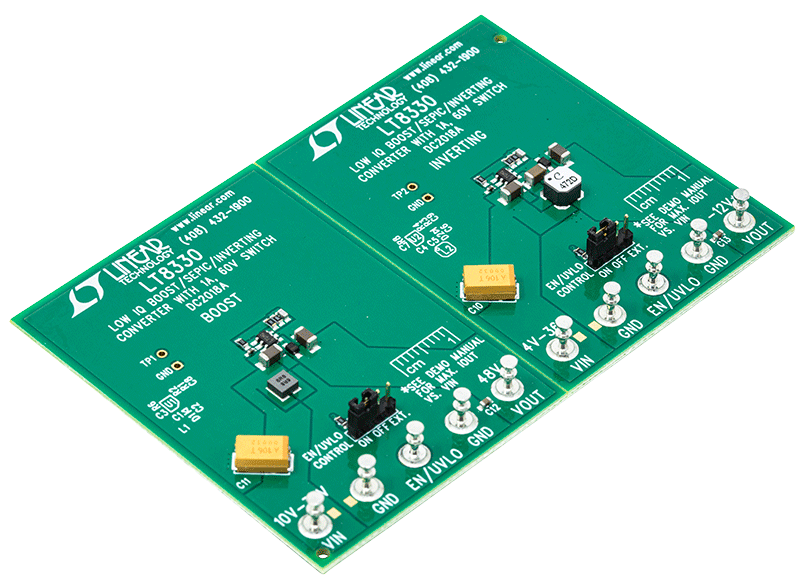

DC2018A
LT8330 Demo Board | Dual circuits. 1) 10V to 36V input to 48V at 135mA & 2) 4V to 36V input to -12V at 270mA
トップへ
製品概要
製品概要
Demonstration circuit 2018A features the LT8330, a low IQ boost/SEPIC/inverting converter with a 1A, 60V switch.
The LT8330 allows higher input and output voltages than comparable converters and also significantly reduces input current at light loads and no load. The LT8330 regulates either positive or negative outputs and has an internally programmed switching frequency of 2MHz.
関連資料
-

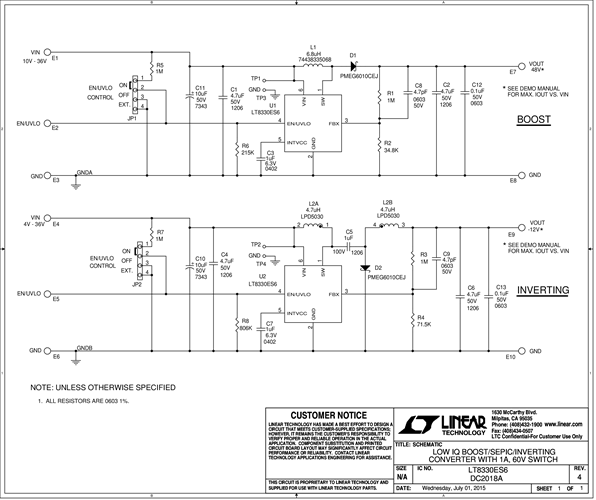

DC2018A - Schematic2015/09/04PDF28K
-
DC2018A - Demo Manual2015/09/04PDF291K
-
DC2018A - Design Files2015/09/04ZIP849K
