DC1694B
LT3748EMS Isolated Demo Board | No-Opto Flyback, 22V ≤ VIN ≤ 75V; VOUT = 12V @ 2.5A
トップへ
製品概要
製品概要

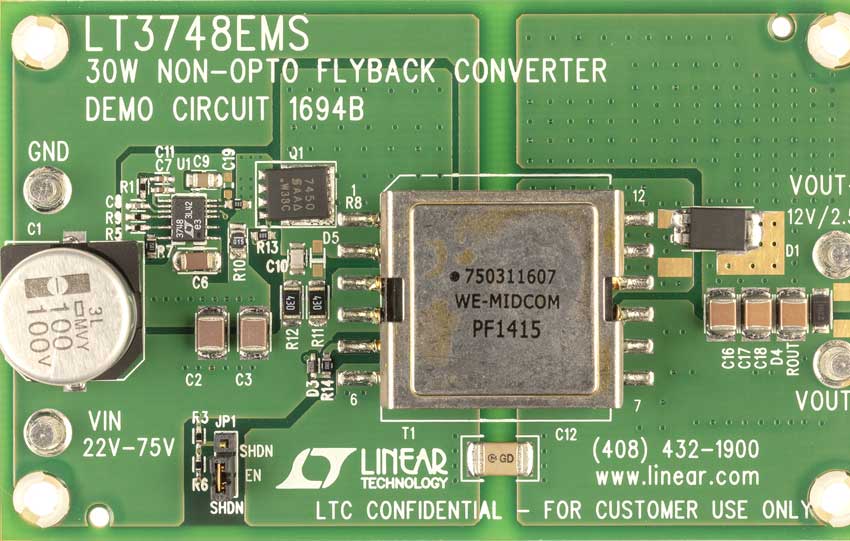

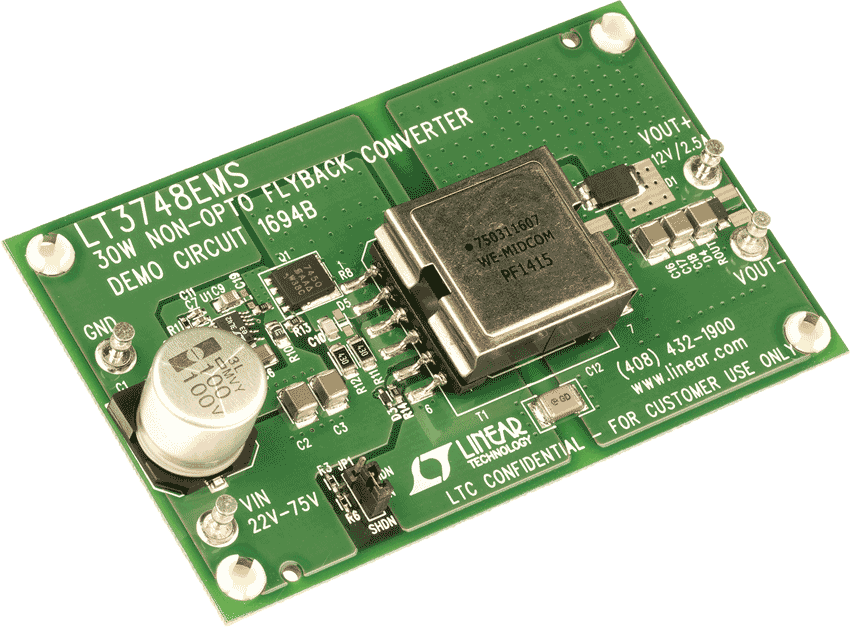

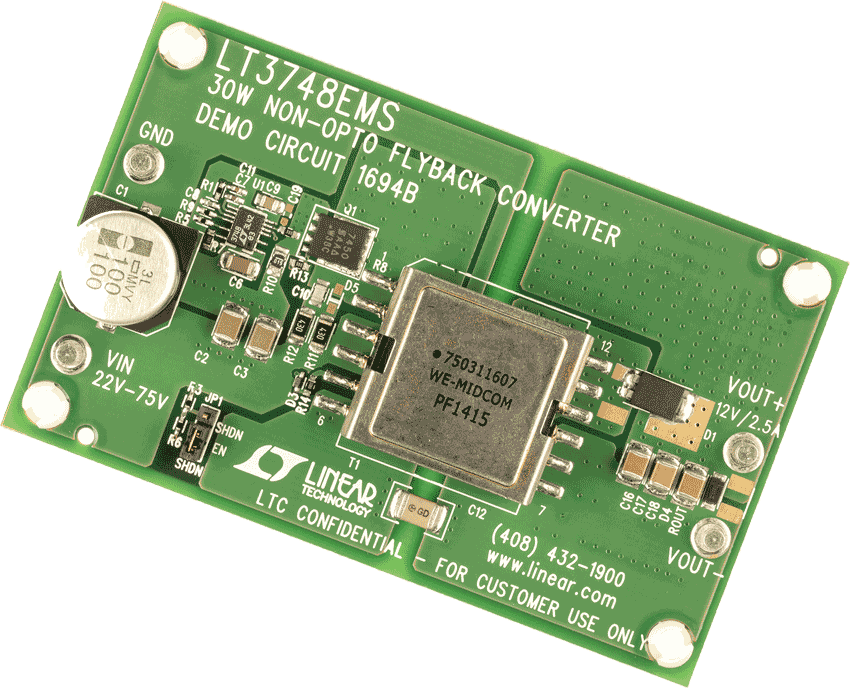

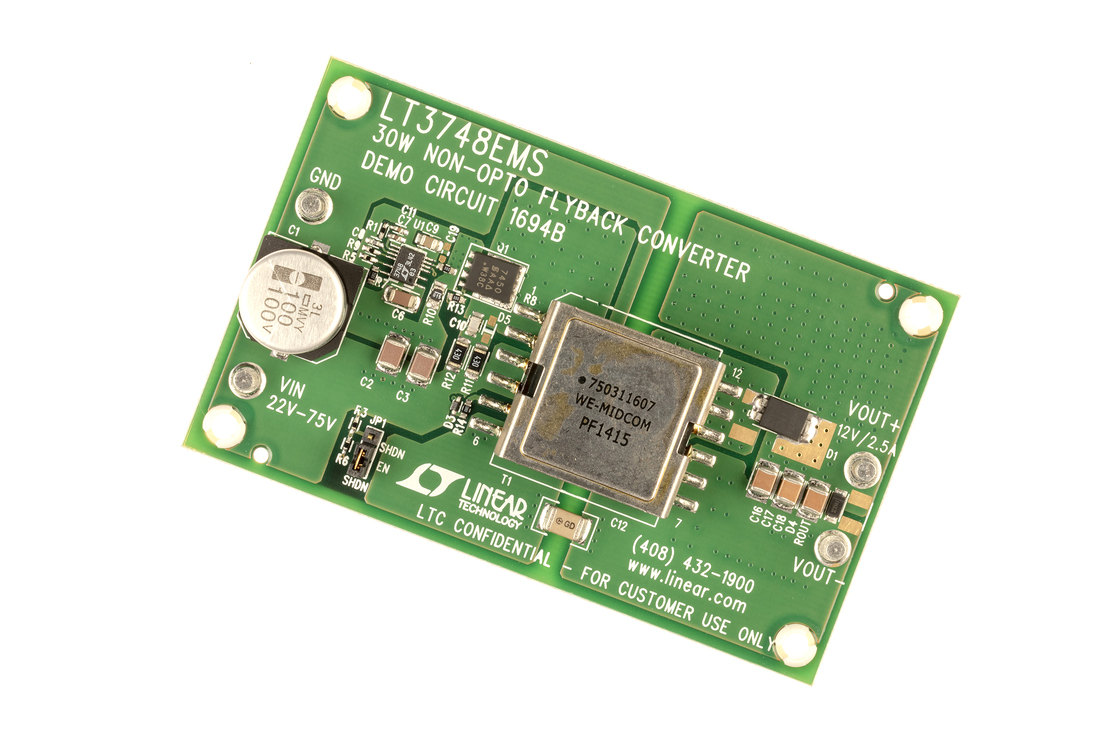

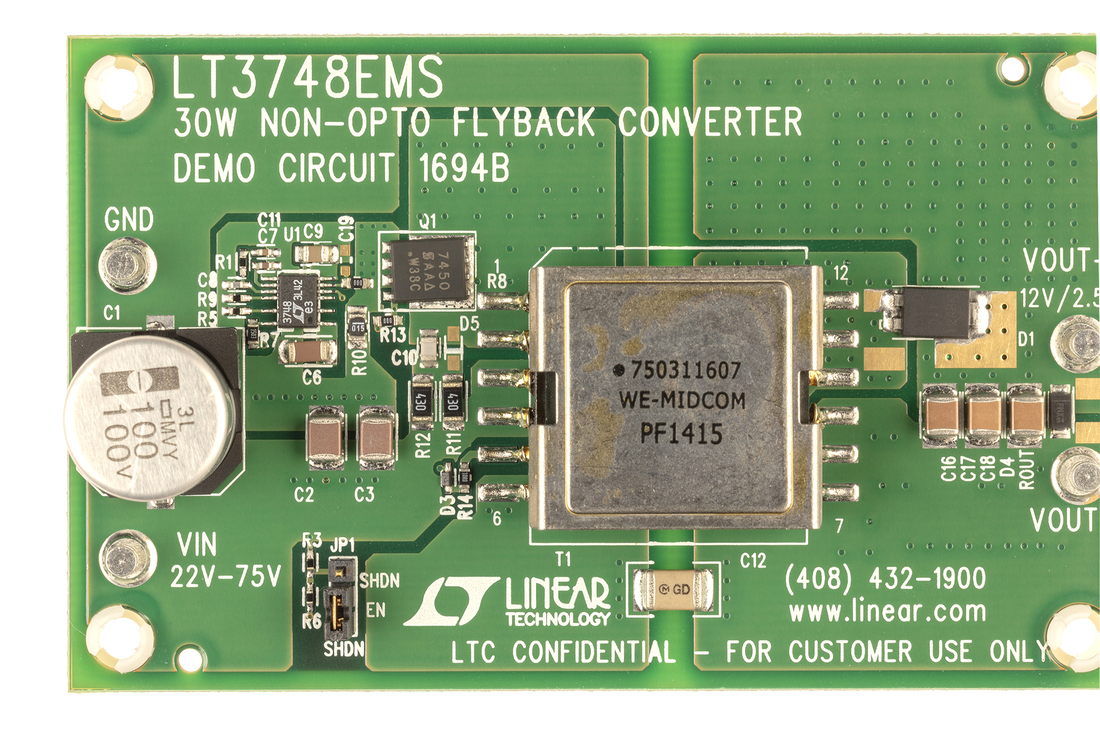

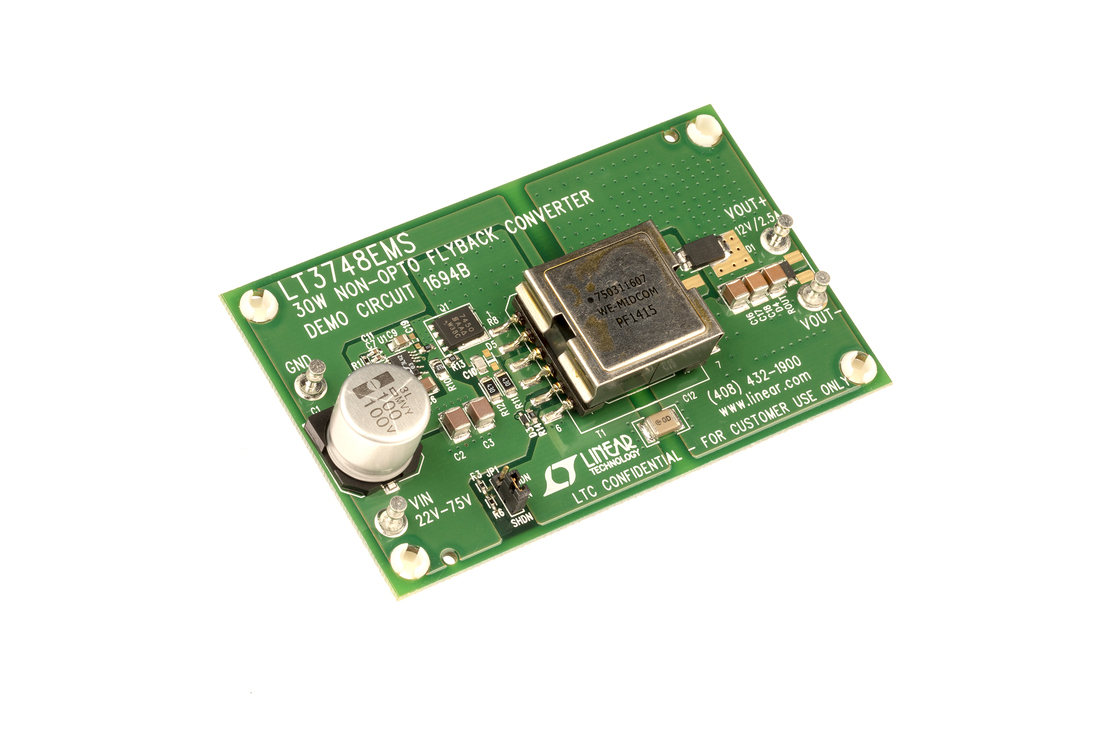

Demonstration circuit 1694B is an isolated flyback converter featuring the LT3748. The demo circuit is designed for a 12V output from a 22V to 75V DC input. The output current is up to 2.5A. The part senses the isolated output voltage directly from the primary side flyback waveform during the off time of the power switch. No third winding, opto-coupler, or signal transformer is required for regulation. A minimum load of approximately 2% of maximum load is required on the output to maintain regulation.
関連資料
-

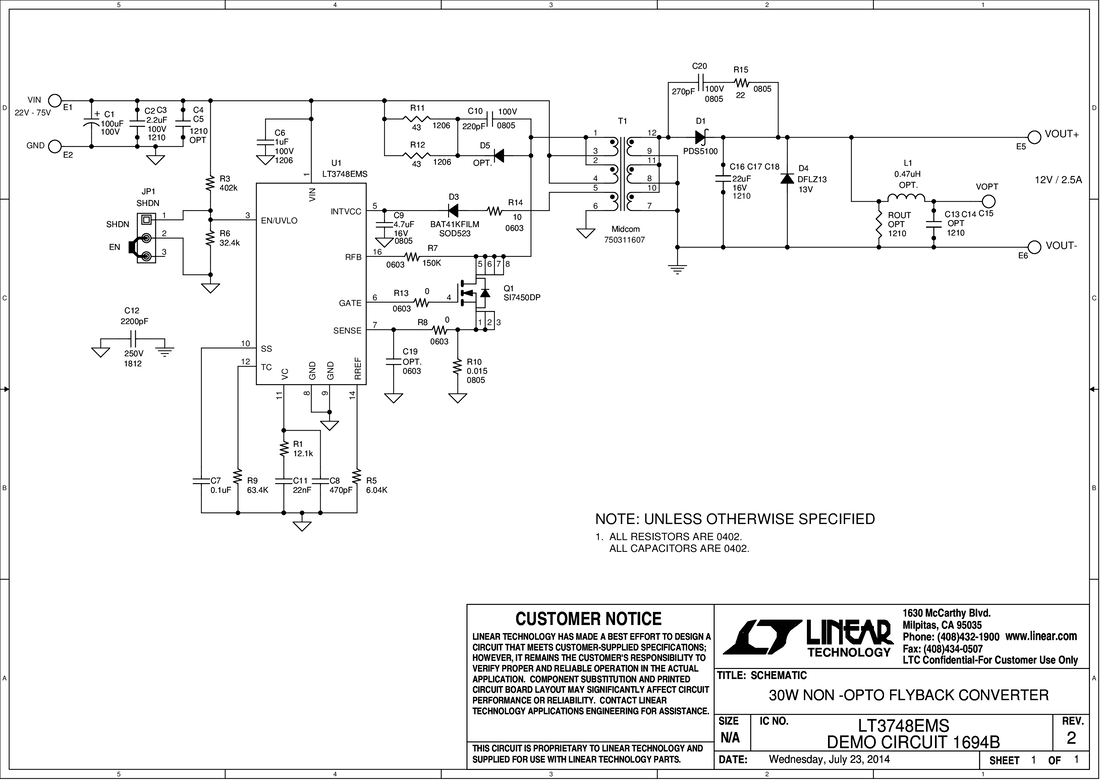

DC1694B - Schematic2014/11/18PDF32K
-
DC1694B - Demo Manual2014/11/18PDF239 K
-
DC1694B - Design Files2014/11/18ZIP863K
