EVAL-2148X-EZKIT
21489 EZ-Board for the ADSP-2148x SHARC Family
トップへ
製品概要
機能と利点
- ADSP-21489: 176-pin LQFP package, 25 MHz CLKIN oscillator
- Flash Memory: 4 M x 8-bit, Numonyx
- SDRAM Memory: 16Mb x16 bit, Micron MT48LC16M16A2P-6A
- Asynch SRAM: 1M x16 bit, ISSI IS61WV102416BLL-10TLI
- SPI Memory: 16 Mbit
- Analog Audio: AD1939 Codec
- SPDIF: RCA phone jacks
- UART: ADM3202 RS-232 line driver/receiver
- Power Supply: 5V @ 3.6 Amps
- LEDs: 11 LEDs: 1 power (green), 1 board reset (red), 1 temperature limit (amber), and 8 general purpose (amber)
- Push Buttons: (5) push buttons: (1) reset, (2) connected to DAI, (2). IRQ/Flag
- SHARC Expansion Interface II: AMI, Flags/IRQs, DAI, DPI, PWR_IN, 3.3V, GND
- Other Features: Standalone Debug Agent Interface, WDT (Watch Dog Timer) system reset implementation, MP JTAG IN and OUT Connectors, 0-ohm resistors for DSP current measurement, CE compliant
製品概要

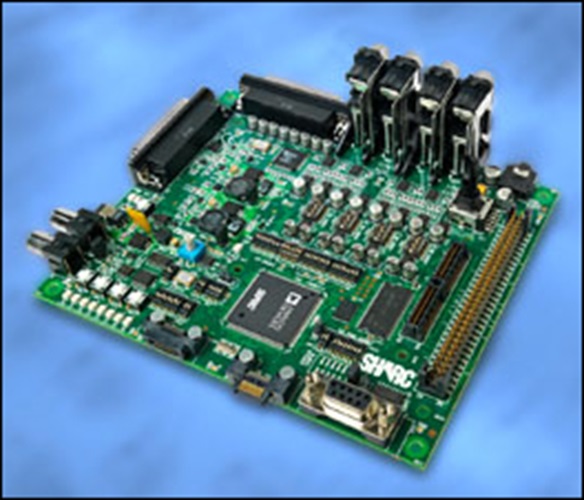

The SHARC® 21489 EZ-Board™ evaluation board provides developers with a low-cost platform for initial evaluation of the 2148x SHARC processors via an external JTAG emulator or standalone debug agent board.
Note: To debug you must have a Debug Agent Board or Emulator. The EZ-Board has an expansion interface that allows for modularity with different EZ-Extender boards
Ordering Information:
Part number: ADZS-21489-EZBRD
an external JTAG emulator or standalone debug agent board.
CROSSCORE® Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support
推奨システム動作環境
- Windows® 2000 SP4, Windows XP SP2, Windows Vista™ or (from update 7) Windows 7 Business/Enterprise/Ultimate editions
- Intel Pentium® processor (x86 compatible), 1 GHz or faster
- 512 MB RAM and 2 GB available hard disk space
- VisualDSP++ 5.0 Update 8
関連資料
-
SHARC プロセッサ ソフトウェア＆ツール2015/02/10
-
ADSP-21489 EZ-KIT Lite® Evaluation System Manual (Rev. 1.1)2010/04/04PDF633 kB
-
HPUSB, USB, and HPPCI Emulator User’s Guide (Rev. 3.2)2009/11/11PDF746 kB
