ADAU1962A

The Analog Devices USBi “USB Interface” (EVAL-ADUSB2EBZ) board is the interface between your PC's USB port and SigmaDSP hardware's data input pins. This interface can be used with any evaluation board which includes an External SPI/I²C header (Aardvark Header). The EVAL-ADUSB2EBZ board is capable of both SPI and I²C communication (which is user selectable) and can supply IOVDD of either 3.3V or 1.8V.The USBi interface is powered from the computer's USB port.

Using USBi in SigmaStudio:

To communication between SigmaStudio and the USBi board, a communication channel block must be added to the Schematic design. To locate the block, select the Hardware Configuration Tab, in the ToolBox or Tree ToolBox window choose the “Communication Channels” category, and select the USBi block.

This block provides connections for multiple processors (ICs / DSPs), allowing you to use multiple processors in a single design. This block allows you to explicitly specify both the communication protocol (SPI or I²C) and the part's address, I²C address or SPI catch line. The DSP hardware's address must match the block's selected address for communication to function properly. See the parts data sheet for more information about addressing (e.g. ADR_SEL, ADDR0, or ADDR1 pins). The default USBi protocol is I²C, to enable SPI, you must first select an SPI address in the block's drop down menu and then perform three write operations (e.g. press the write button the Register Read/Write Window 3 times). The USBi hardware has LEDs which indicate the current mode, I²C or SPI.

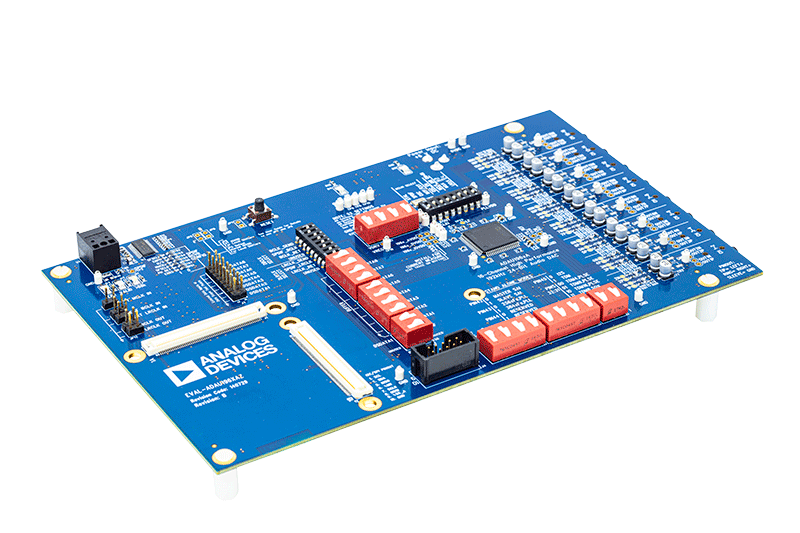

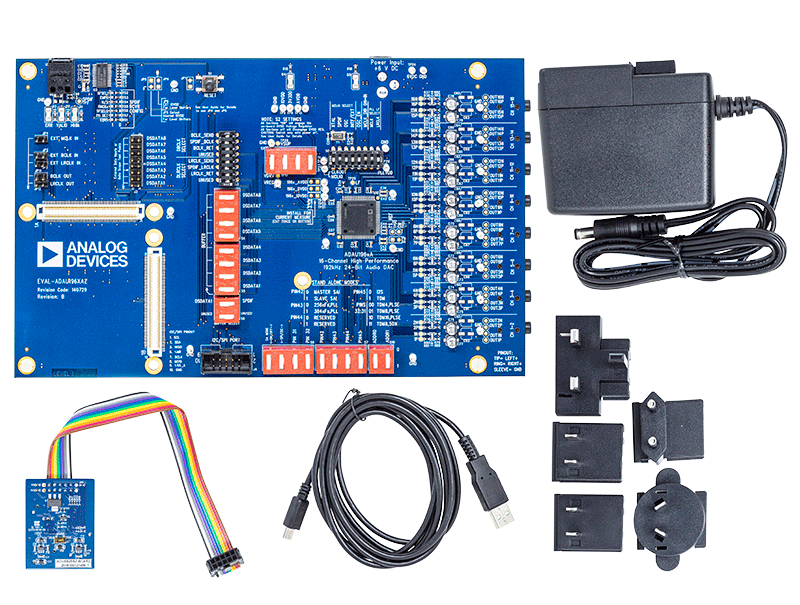

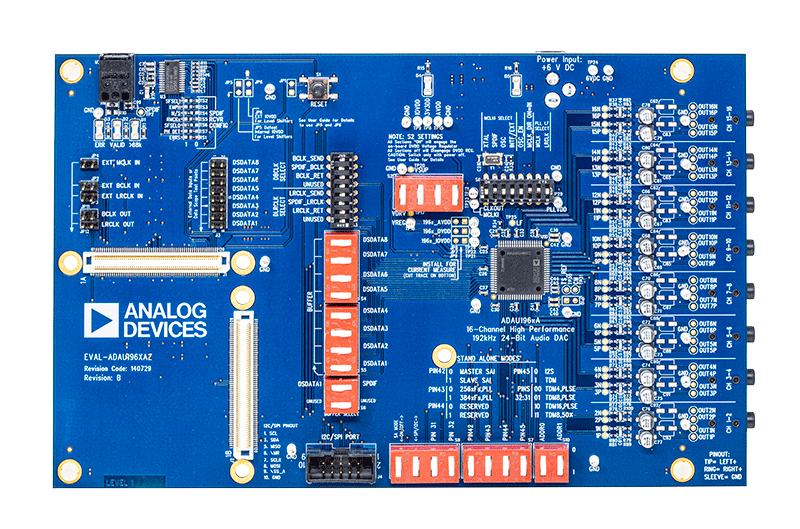

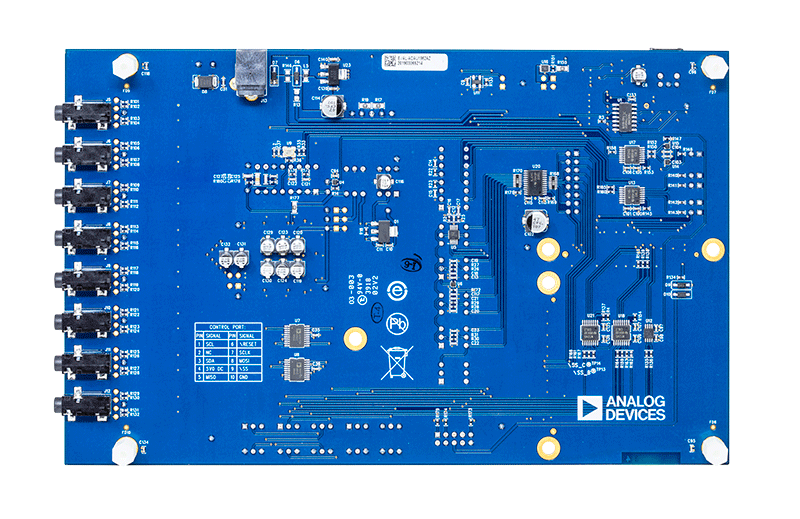

The EVAL-ADAU196xAZ evaluation boards allow the user to evaluate the ADAU1962A, 12 channel Digital to analog converter (DAC) or the ADAU1966A, 16 channel DAC. The evaluation board will supply bit clock, LR clock and master clock and will except either 6 or 8 dual channel I2S data streams or multiple TDM (Time Division Multiplexed) data streams.

The board has an S/PDIF receiver with RCA and optical connectors, as well as a discrete serial audio interface. Analog outputs are accessible via 8 stereo TRS Mini jacks.

 The ADAU196xA can be controlled through either an I²C or SPI interface. A small external interface board EVAL-ADUSB2EBZ, also called USBi, connects to a PC USB port and provides either I²C or SPI access to the evaluation board through a ribbon cable. A graphical user interface (GUI) program, the Automated Register Window Builder, is provided for easy programming of the chip in a Microsoft^® Windows^® PC environment. The evaluation board allows demonstration and performance testing of most ADAU196xA features, including high performance DAC operation.

• ADSP-SC584 349-pin 19x19mm BGA
• 2Gb DDR3 Memory
• 128 Mb SPI Flash
• Ethernet (10/100 &  GigE)
• ADAU1977 quad ADC
• ADAU1979 quad ADC
• ADAU1962A 12 channel 24-bit DAC
• AD2410 Automotive Audio Bus (A2B)
• SPDIF in/out, optical & coax
• UART
• 2 CAN transceivers + RJ11 connectors
• USB OTG
• HADC
• EI3 Expansion Interface
• EZLITE includes ICE-1000 JTAG emulator and a permanent CrossCore^® Embedded Studio license for use with the EZLITE via ICE-1000

The ADSP-SC584 EZ-KIT Lite and EZ-Board^® are evaluation systems for the ADSP-SC58x family of SHARC^® processors. The ADSP-SC584 processor is based on the SHARC+^™ core dual processor with the arm^® Cortex-A5^™ processor core and is designed for a wide array of markets, from automotive and pro-audio to industrial-based applications that require high floating-point performance. The EZ-Board is shipped with all of the necessary hardware—you can start the evaluation immediately. The package contains the standalone evaluation board, CE-approved power supply, and USB cable. The EZ-KIT Lite^® version ships with two 180 day licenses for CrossCore^® Embedded Studio (CCES) and the ICE-1000 emulator, while the EZ-Board version requires the customer to provide an ICE-1000 or ICE-2000 emulator.

Expansion Interface III connectors are provided for interfacing with additional extender boards to provide LCD, camera, video, and audio. Traditional mechanical switches for changing the board's factory setup have been removed in favor of I2C controlled software switches. The only remaining mechanical switches are the boot mode switch, JTAG configuration switches, and push buttons.

The evaluation board is designed to be used in conjunction with the CrossCore^® Embedded Studio (CCES) development tools to test capabilities of the ADSP-SC58x processors. The development environment aids advanced application code development and debug, such as:

• Create, compile, assemble, and link application programs written in C++, C, and assembly
• Load, run, step, halt, and set breakpoints in application programs
• Read and write data and program memory
• Read and write core and peripheral registers

• ADSP-SC589 529-pin 19x19mm BGA
• 4Gb DDR3 Memory
• 128 Mb SPI Flash
• 2 x Ethernet (1x 10/100, 1x GigE)
• ADAU1979 quad ADC
• ADAU1962A 12 channel 24-bit DAC
• SPDIF in/out, optical & coax
• UART
• 2 CAN transceivers + RJ11 connectors
• USB OTG
• USB HS
• PCIe
• SD/MMC memory connector
• HADC
• EI3 Expansion Interface
• EZLITE includes ICE-1000 JTAG emulator and a permanent CrossCore^® Embedded Studio license for use with the EZLITE via ICE-1000

The ADSP-SC589 EZ-KIT Lite and EZ-Board^® are evaluation systems for the ADSP-SC58x family of SHARC^® processors. The ADSP-SC589 processor is based on the SHARC+^™ core dual processor with the arm^® Cortex-A5^™ processor core and is designed for a wide array of markets, from automotive and pro-audio to industrial-based applications that require high floating-point performance. The EZ-Board is shipped with all of the necessary hardware—you can start the evaluation immediately. The package contains the standalone evaluation board, CE-approved power supply, and USB cable. The EZ-KIT Lite^® version ships with an EZ-Kit license for CrossCore^® Embedded Studio (CCES) and the ICE-1000 emulator, while the EZ-Board version requires the customer to provide an ICE-1000 or ICE-2000 emulator. The EZ-Kit license gives the user a full, subscription based license to use CCES with only the ADSP-SC589 EZ-KIT Lite evaluation board.

Expansion Interface III connectors are provided for interfacing with additional extender boards to provide LCD, camera, video, and audio. Traditional mechanical switches for changing the board's factory setup have been removed in favor of I2C controlled software switches. The only remaining mechanical switches are the boot mode switch, JTAG configuration switches, and push buttons.

The evaluation board is designed to be used in conjunction with the CrossCore^® Embedded Studio (CCES) development tools to test capabilities of the ADSP-SC58x processors. The development environment aids advanced application code development and debug, such as:

• Create, compile, assemble, and link application programs written in C++, C, and assembly
• Load, run, step, halt, and set breakpoints in application programs
• Read and write data and program memory
• Read and write core and peripheral registers
