Circuit Description

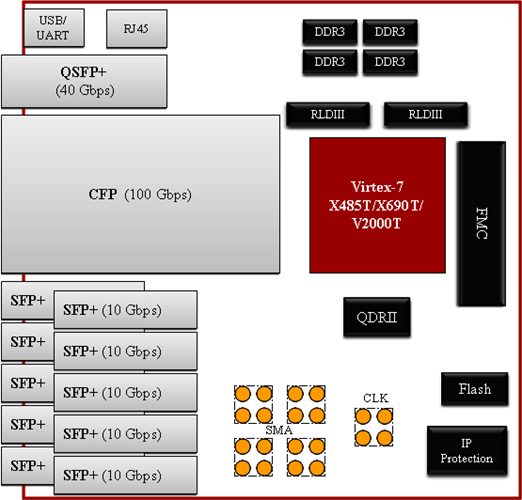

HiTech Global's HTG707, populated with the Xilinx Virtex-7 X485T, X690T, or V2000T FPGA, is a development platform that delivers the most fundamental functional blocks required for building 10G/40G/100G subsystems.
| Rail / Function | Part Number | General Description of Part |
| 1V: VCC_CORE | LTM4620 |
Dual 13A or Single 26A DC/DC μModule Regulator |
| 1.5V, 2.5V, 3.3V: System Power 1.2V: GTX_AVTT |
LTM4627 | 15A DC/DC µModule regulator |
| 1.0V: GTX_AVCC, BRAM | LT3070 |
5A, Low Noise, Programmable Output, 85mV Dropout Linear Regulator |
| 1.8V: GTX_AUX, AUX, AUX_IO | ||
| 1.2V, 1.35V: System Power | LTM4628 | Dual 8A or Single 16A DC/DC μModule Regulator |
| 1.8V, 3.3V: System Power | ||
| 1.5V: VADJ_FMC | LTM4618 | 6A DC/DC µModule Regulator with Tracking and Frequency Synchronization |
| Clock for µModule Regulators | LTC6900 | Low Power, 1kHz to 20MHz Resistor Set SOT-23 Oscillator |
