Overview
Features and Benefits
- StallGuard2™
- CoolStep™
- SpreadCycle™
- MicroPlyer™
- 1 to 256 Microsteps
- 2.8ARMS, 26V/36V/48V
Product Details

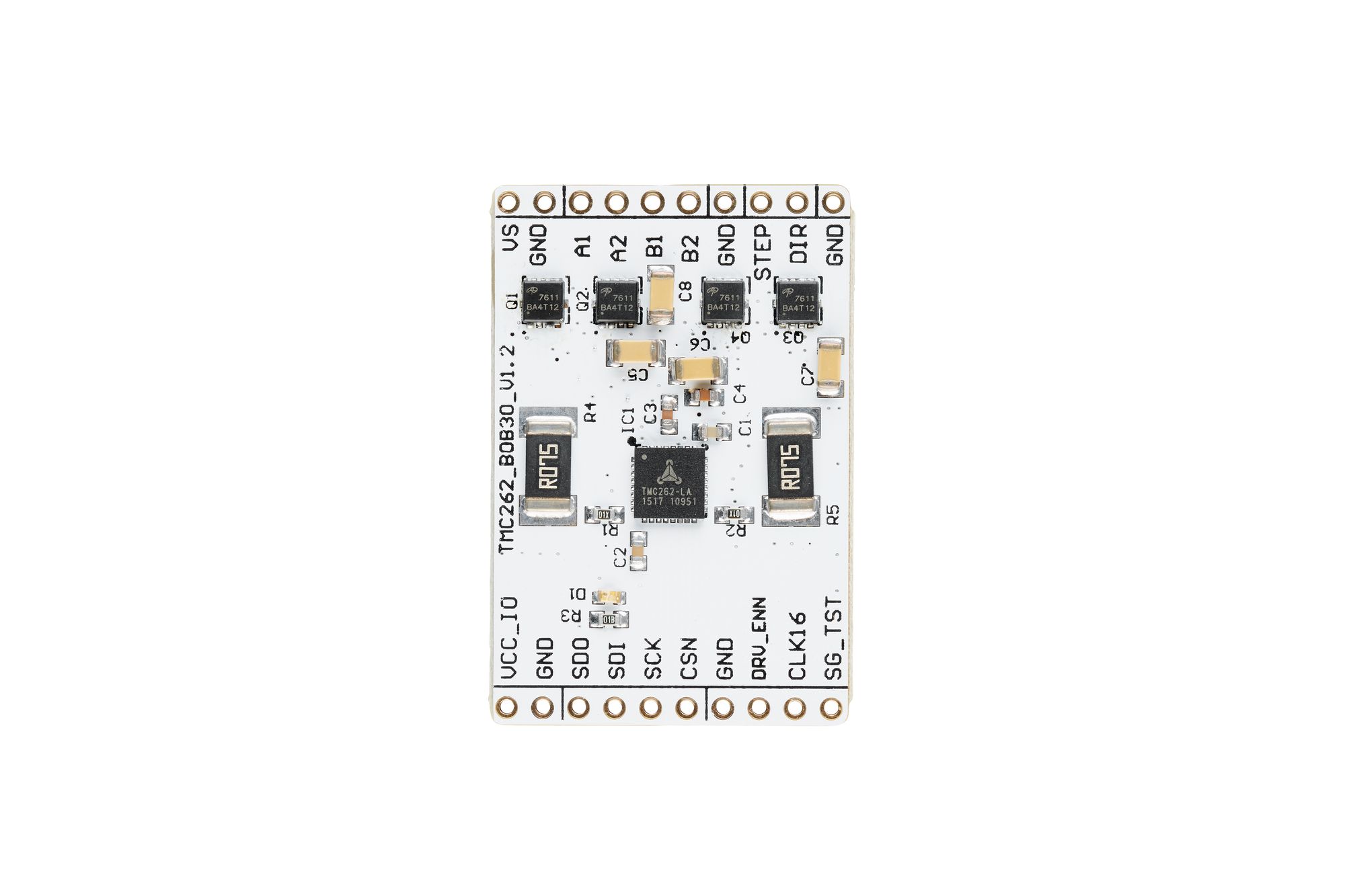

The TMC262 breakout board is a development board with the dedicated TMC262-LA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
Technical Details
TMC262-BOB30 | TMC262-BOB40 | TMC262-BOB60 | |
Status | Active | Active | Active |
Motor Supply | 9 to 26V | 9 to 36V | 9 to 486V |
Phase Current, RMS | 2.8A | 2.8A | 2.8A |
SPI | ✓ | ✓ | ✓ |
Step/Dir | ✓ | ✓ | ✓ |
StallGuard2™ | ✓ | ✓ | ✓ |
CoolStep™ | ✓ | ✓ | ✓ |
SpreadCycle™ | ✓ | ✓ | ✓ |
Applicable Parts
Documentation & Resources
-
TMC262C Data Sheet (Rev. 1.02)2/24/2022PDF1M
-
