MAX77958EVKIT-2S3 Evaluation Board

Overview

Features and Benefits
Product Details

Features and Benefits

High Voltage V_BUS Range
Short to V_BUS Protection on CC Pins
Type-C Support and USB-PD Support
- Mode configuration: DFP/UFP/DRP
- Type-C rev1.3 and PD3.0 Compatible
- Cable Orientation and Power Role Detection
- Integrated V_CONN Switch with OCP
- Support Try.Snk State
- Support Audio
- Support Debug Accessory Sink/Source Mode
- FRS (Fast Role Swap) Initial Sink Support
- PPS (Programmable Power Supply) Sink Support
Support BC1.2 Legacy/Proprietary Charger Detection
- Integrated D+/D- Switches
MTP Memory for Storing Custom Configuration
Moisture Detection and Corrosion Prevention
Customization Script
I²C Programmable Configuration
I²C Master to Control External Charger or DC-DC Converter IC
9 Configurable GPIOs (GPIO6 for SID)
- External SuperSpeed Mux/Detection/IRQ
- EN/DISABLE External Power or FETs
On-Board I²C Interface
Windows 10 Compatible
Proven PCB Layout
Fully Assembled and Tested

Product Details

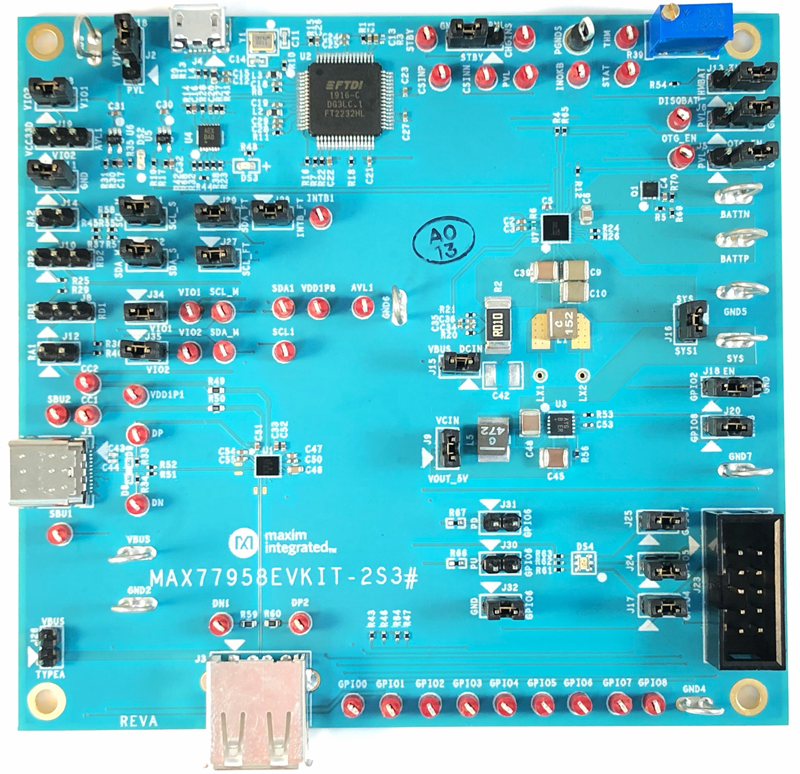

The MAX77958 evaluation kit (EV kit) is a fully assembled and tested printed circuit board (PCB) that demonstrates the MAX77958 Standalone USB Type-C and Power Delivery Controller.

The EV kit enables easy evaluation of the following features:

USB Type-C Detection/PD Communication (See Table 1 for Acronyms)
- Power Role (Sink and Source), Data Role (UFP and DFP) detection
- PD Adapter Detection and PD Communication
- Integrated V_CONN Switch with OCP
- Power/Data Role Swap
- PPS (with PD Adapter Supporting PPS)
- Audio and Debug Accessory Sink/Source Mode
- Vendor Defined Message
BC1.2 Legacy Charger Detection: SDP, CDP, DCP and DCD Timeout
I²C Master to Control Companion IC.
9 Configurable GPIOs

The EV kit contains a MAX77962 charger to demonstrate the I²C master feature of the MAX77958. The MAX77962 is a buck-boost charger for 2S Li+ battery application and is capable of 3.5V to 23V input voltage, with a maximum programmable fast charging current of 3.2A.

The MAX16904 a buck converter is installed on the EV kit to provide 5V to V_CONN pin. The MAX77958 uses GPIO2 to enable the buck converter when the MAX77958 is in SOURCE Power Role.

A Micro-B USB cable is included in the package to serve as the interface from a USB port on a Windows^® PC to the slave I²C port on the MAX77958. A Windows based software provides a user-friendly interface to exercise the features of the MAX77958.
