Overview

Features and Benefits

  • Evaluates the MAX38912 in an 8-pin (2mm x 2mm) TDFN Package
  • 1.7V to 5.5V Input Range
  • 0.8V to 5.0V External Feedback Resistor Configuration
  • Up to 500mA Output Current
  • Jumper-Selectable Operating Modes
  • Proven 2-Layer 1oz Copper PCB Layout
  • Demonstrates Compact Solution Size
  • Fully Assembled and Tested

Product Details

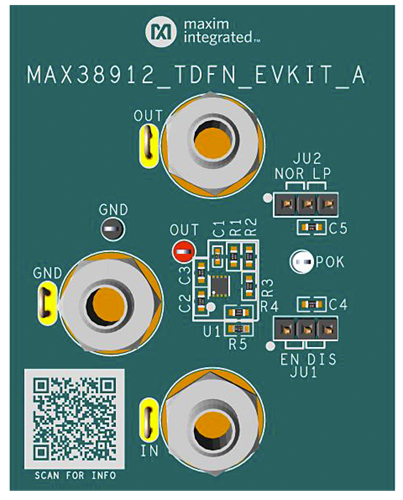

The MAX38912 TDFN evaluation kit (EV kit) evaluates the MAX38912 in a TDFN package. The MAX38912 is a low-noise, high-PSRR pMOS linear regulator. The MAX38912 TDFN EV kit operates over an input range of 1.7V to 5.5V, provides an output-voltage range from 0.8V to 5.0V, and can deliver up to 500mA of current. The EV kit comes with the MAX38912ATA+ installed.

Applications

  • Digital Camera and Audio Devices
  • High-Performance Sensors for Portable Applications
  • Imaging and High-Frequency Sensors
  • IoT Sensors
  • Mobile Phones
  • Portable and Battery-Powered Equipment
