MAX33048ESHLD
MAX33048E Shield Evaluation Kit
Top
Overview
Features and Benefits
- Easy Evaluation of the MAX33048E
- I/O Interface Compatibility from 1.71V to 5.5V
- Proven PCB Layout
- Arduino®/Arm® Mbed™ Platform Compatible
- Fully Assembled and Tested
Product Details

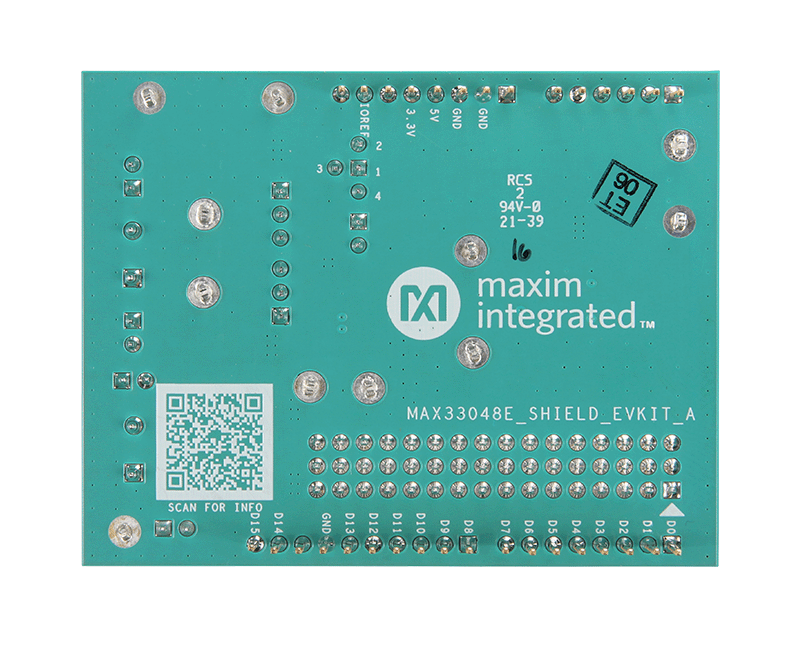

The MAX33048E Shield evaluation kit (EV kit) is a fully assembled and tested printed circuit board (PCB) that demonstrates the functionality of the MAX33048E, a 20Mbps full-duplex RS-485 transceiver with ±25V fault protection, extended -7V to +12V common-mode range, and ±40kV ESD Human Body Model (HBM) for A/B and Y/Z data lines. The shield features a digital isolator which is used as a level translator between the RS-485 transceiver and the controller interface.
System Requirements
- MAX33048E Shield
- 3.3V or 5V, 500mA DC power supply
- Signal/function generator that can generate a 10MHz square wave signal
- Oscilloscope
Documentation & Resources
-
MAX33048ESHLD: MAX33048E Shield Evaluation Kit Data Sheet (Rev. 0)4/25/2023PDF606 K
