MAX31343SHLD Evaluation Board

Overview

Features and Benefits
Product Details

Features and Benefits

Easy Evaluation of the MAX31343
+1.6V to +5.5V Single-Supply Operation
Proven PCB Layout
Fully Assembled and Tested
Arduino^®/Mbed^® Platform Compatible

Product Details

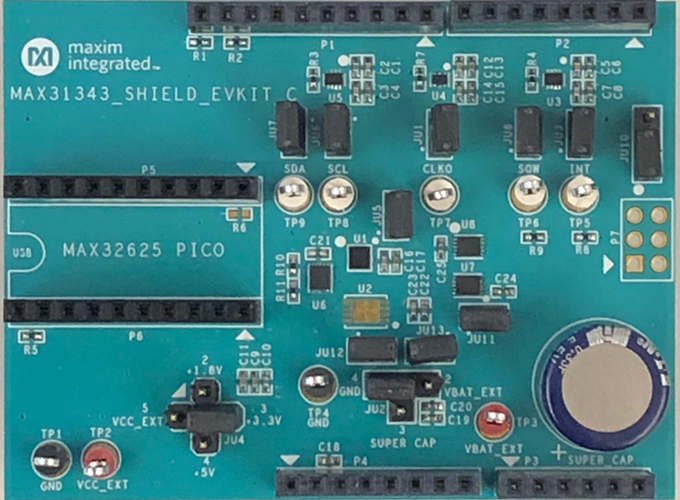

The MAX31343 shield is a fully assembled and tested PCB to evaluate the MAX31343, low-cost, extremely accurate, real-time clock (RTC) with I²C interface and power management. The shield operates from a single supply, either from USB or external power supply, and the integrated microelectromechanical systems (MEMS) resonator enhances the long-term accuracy and eliminates the external crystal requirement in the system. This device is accessed through an I²C serial interface provided by a MAX32625 PICO board.

The MAX31343 shield provides the hardware and software user interface (GUI) necessary to evaluate the MAX31343. The shield includes a MAX31343EKA+T. It connects to the PC through a MAX32625 PICO board and a micro-USB cable.

Applications
