EVAL-ADUM4195-1
Overview
Features and Benefits
- ADuM4195-1 isolated amplifier in a SOIC-8 package
- ADuM6028-5BRIZ isolated on-board power supply
- Isolated 5 V DC accessible through extra terminals
- Two separate input options:
- Maximum 1,000 V DC pre-configured
- User-configurable maximum 200 V DC
- Input reverse-polarity protection
Product Details

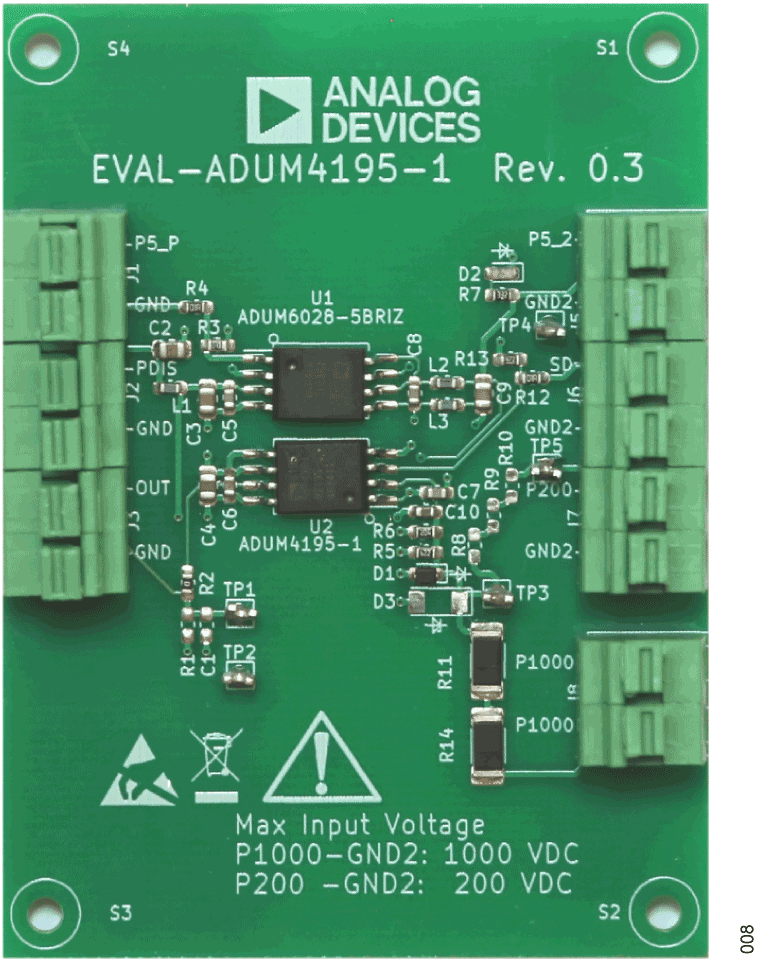

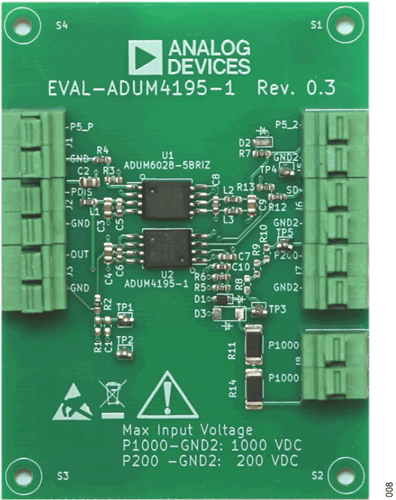

The EVAL-ADuM4195-1EBZ is a compact isolated DC voltage monitoring board with an isolated on-board power supply to facilitate the setup and testing of the performance characteristics of the ADUM4195-1.
On the input side of the board, two separate inputs are available: The P1000 input is pre-configured to accept up to 1 kV DC, while the P200 input can be user-configured for voltages up to 200 V DC. Additional connectors provide access to the isolated 5 V DC supply and the shutdown (SD) input of the ADUM4195-1.
On the output side of the board, the output of the ADUM4195-1 is directly accessible (pre-configured) or may be first-order low-pass filtered by adding a resistor and a capacitor. A single 5 V DC supply is sufficient to power both the input and output side of the board, while the optional power disable (PDIS) pin can be used to disable the on-board supply in applications where low-power consumption is at premium.
Full specifications for the ADuM4195-1 are available in the ADuM4195-1 data sheet, which must be consulted in conjunction with the user guide when working with the EVAL-ADuM4195-1EBZ.
Markets and Technologies
Applicable Parts
Getting Started
EQUIPMENT NEEDED
- Power supply, 5 V DC ±10%, 50 mA
- Adjustable DC voltage source, 0 to 1 kV
- 2 × DMM, 5 and one-half digit
