Evaluation of the ADRF5238 High Isolation, Silicon SPDT, Nonreflective Switch, 0.1GHz to 13GHz
Top
Overview
Features and Benefits
- Full-featured evaluation board for the ADRF5238
- Easy connection to the test equipment
- Thru line for calibration
Product Details
The ADRF5238 is a SPDT switch manufactured in the silicon process.

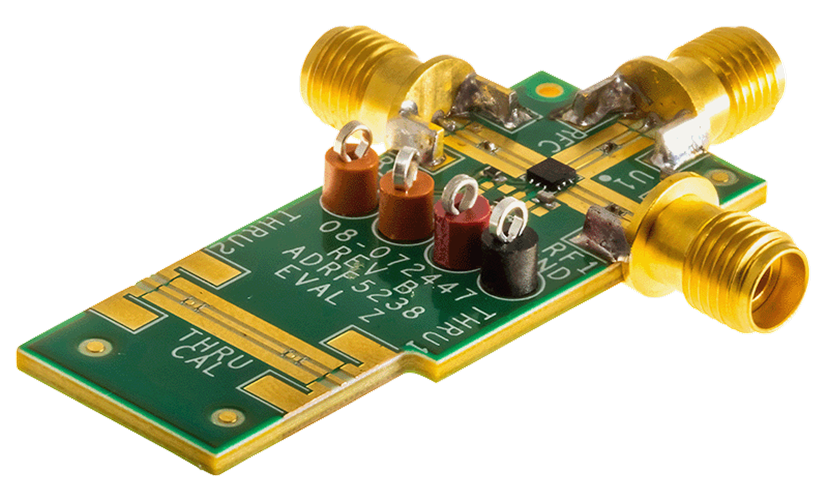

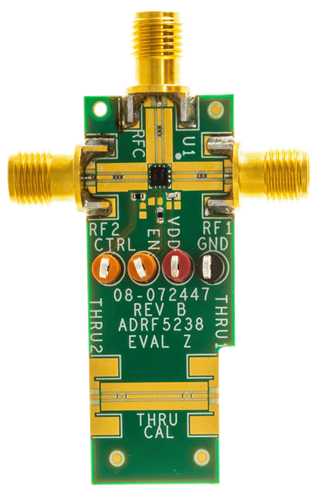

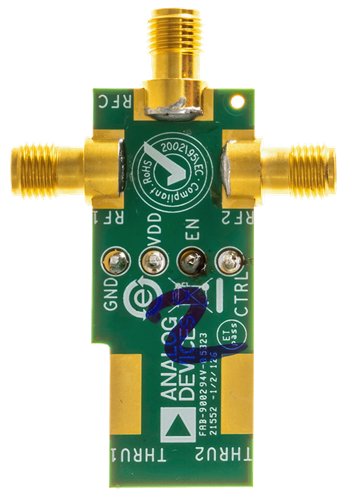

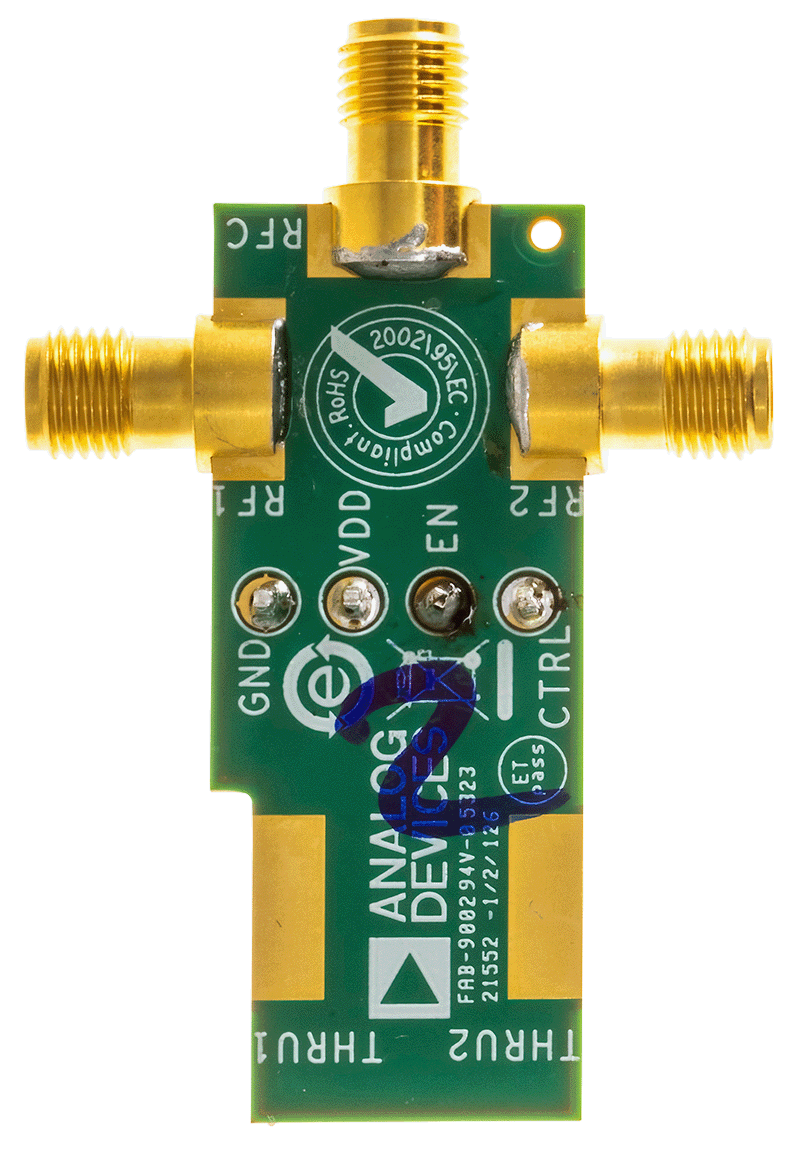

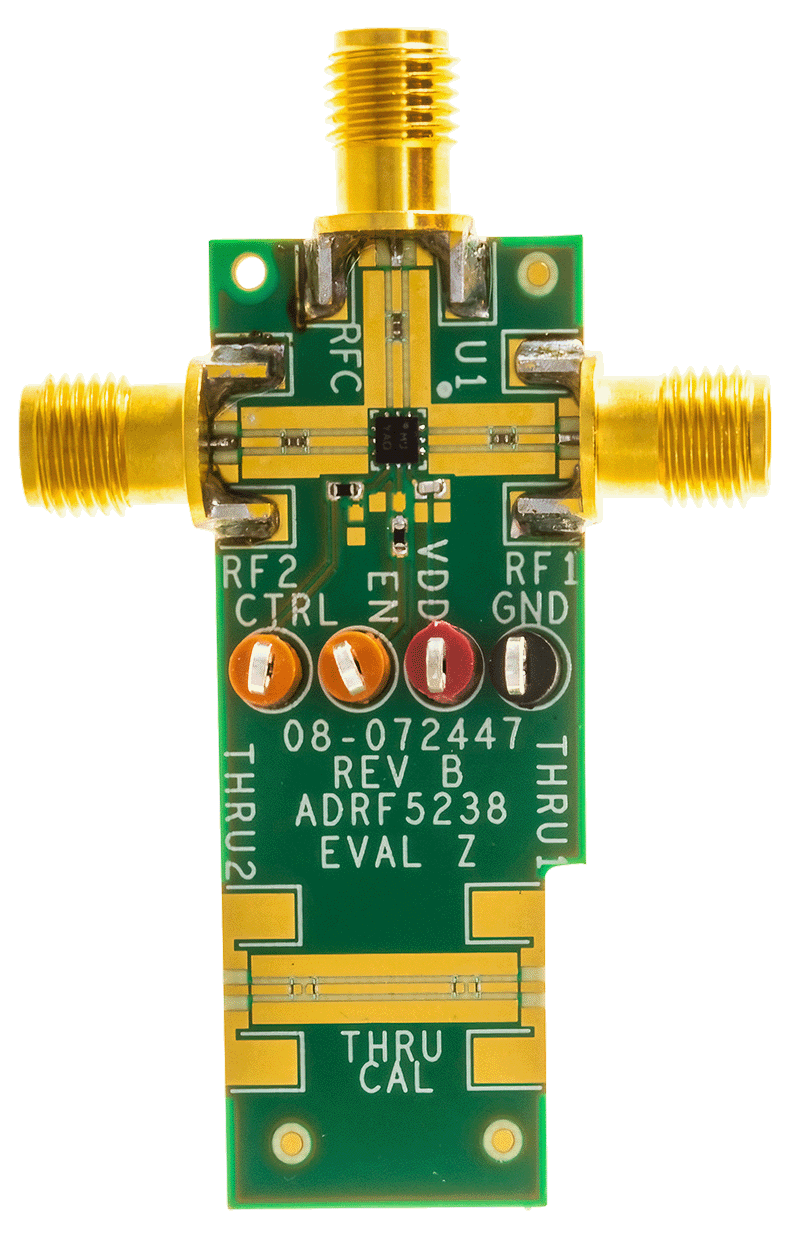

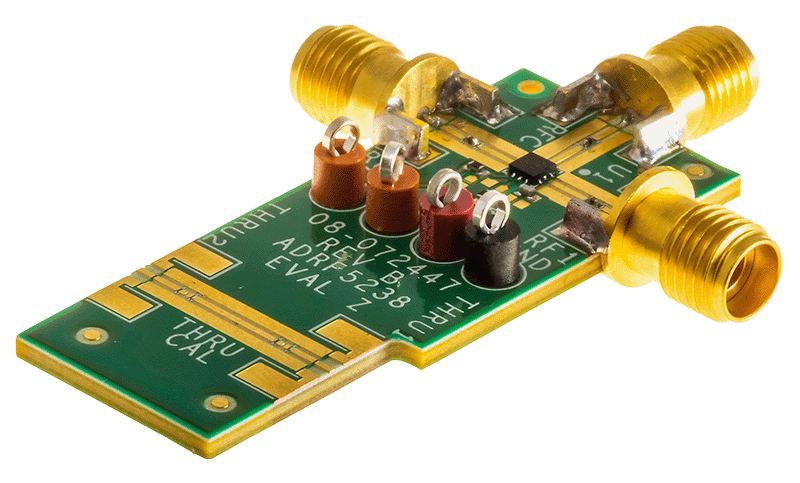

This user guide describes the ADRF5238-EVALZ evaluation board, designed to evaluate the features and performance of the ADRF5238. Figure 1in the user guide shows a photograph of the evaluation board.
Full specifications on the ADRF5238 are available in the ADRF5238 data sheet from Analog Devices, Inc. Consult the data sheet with this user guide when using the ADRF5238-EVALZ evaluation board.
Applicable Parts
Getting Started
EQUIPMENT NEEDED
- DC power supplies
- Network analyzer
