EVAL-ADRF5080
Evaluating the ADRF5080 Reflective, Silicon SP8T Switch, 100 MHz to 20 GHz
Top
Overview
Features and Benefits
Product Details
The ADRF5080 is a reflective, SP8T switch manufactured in the silicon on insulator (SOI) process.

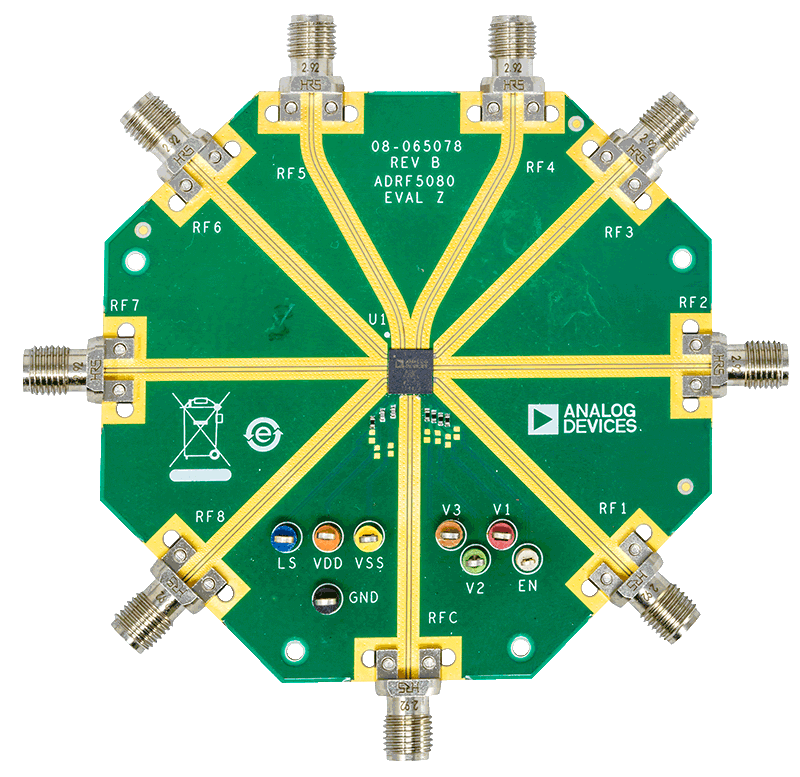

The user guide describes the ADRF5080-EVALZ evaluation board, which is designed to simply evaluate the features and performance of the ADRF5080. A photograph of the evaluation board is shown in Figure 1 of the user guide.
Full specifications for the ADRF5080 are available in the ADRF5080 data sheet, which must be consulted when using the ADRF5080-EVALZ.
Applicable Parts
Getting Started
EQUIPMENT NEEDED
