EVAL-AD9833

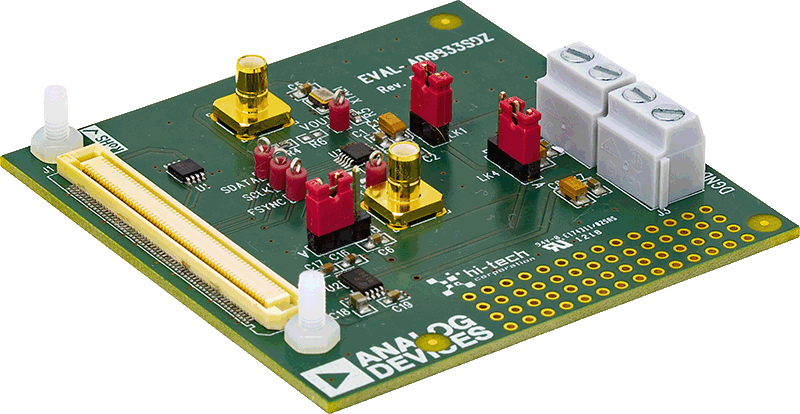

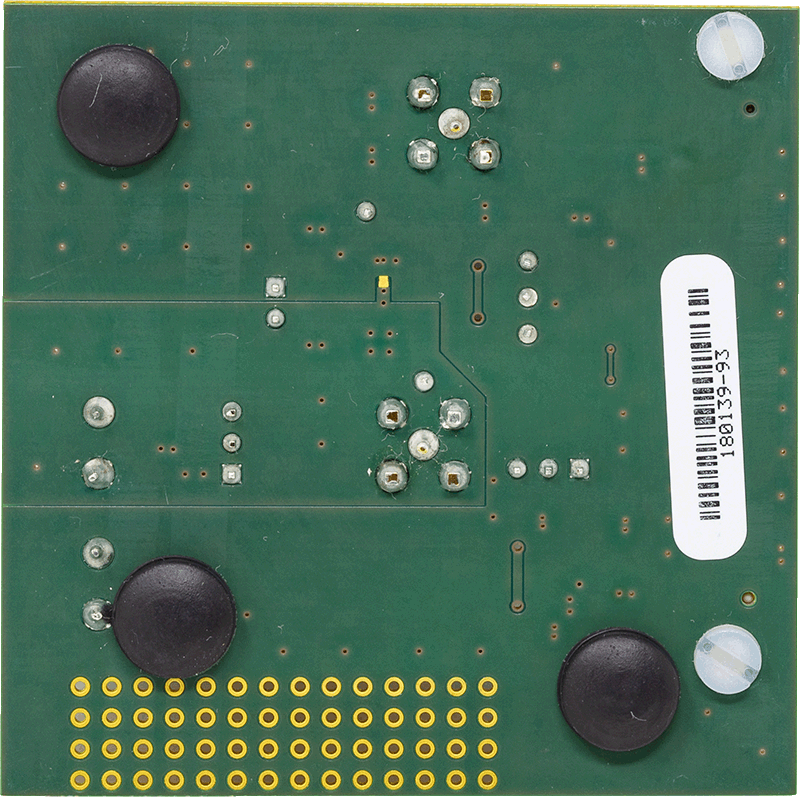

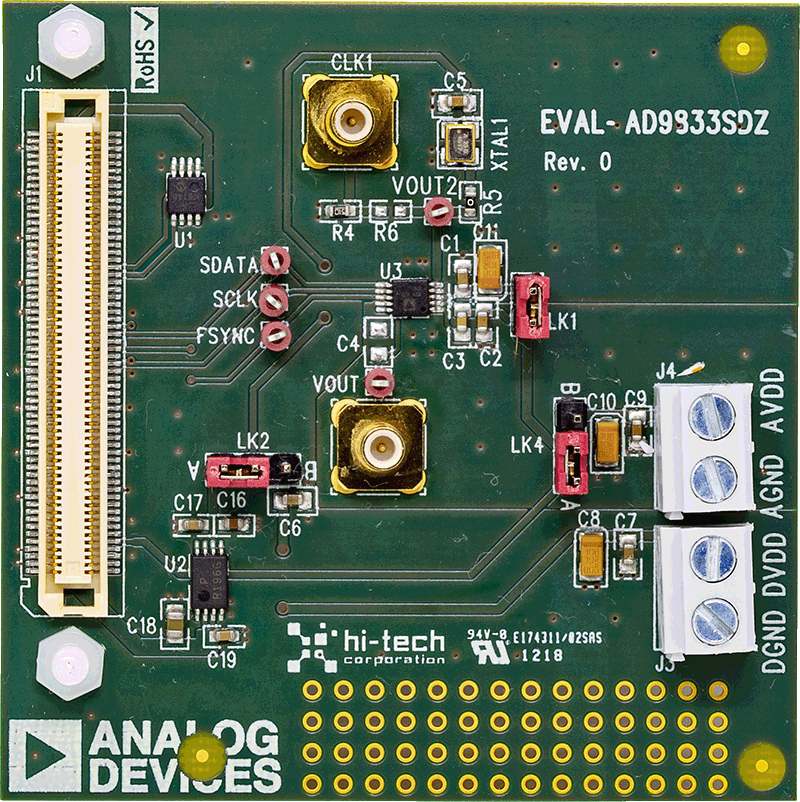

AD9833 Evaluation Board

Top

Overview

Product Details

Product Details

The Evaluation board for the AD9833 contains a SDP-B connection and software allowing the AD9833 to be controlled from a SDP-B board.

Applicable Parts

AD9833

Documentation & Resources

User Guide

UG-272: Evaluating the AD9833 Low Power 12.65 mW, 2.3 V to 5.5 V, Programmable Waveform Generator
4/27/2011

PDF

553 kB

Software

Device Drivers

AD983x GitHub no-OS Driver Source Code

FPGA/HDL

AD9833 FMC-SDP Interposer & Evaluation Board / Xilinx KC705 Reference Design

BeMicro FPGA Project for AD9833 with Nios driver

Evaluation Software

AD9833 Evaluation Software (Rev. B)

Related Hardware (2)

Controller Boards

SDP-B
System Demonstration Platform

Reference Designs

CN0582
USB 3.0 Quad-Channel IEPE Vibration Sensor Measurement System
