EVAL-AD7928

Product Details

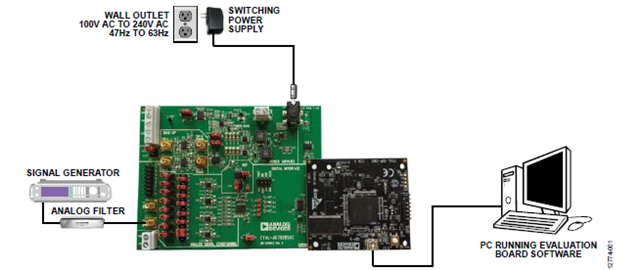

The EVAL-AD7928SDZ is a full featured evaluation board that allows the user to easily evaluate all the features of the AD7928 analog-to-digital converter (ADC). The evaluation board can be controlled by the

EVAL-SDP-CB1Z SDP board via a 120-way SDP connector (J102). The SDP board allows the evaluation board to be controlled through the USB port of a PC using the AD7928 evaluation software, which is available for download from the product page or from the installer CD included in the evaluation board kit.

On-board components include the following:

• ADP1613: 20 V, 2 A, step up, dc-to-dc regulator
• ADP7104ARDZ-5.0: 5 V, low noise LDO
• AD780: high precision, band gap voltage reference
• ADG3308: bidirectional logic level translator
• AD8022: dual high speed, low noise operational amplifier
• AD8066: dual FastFET™, low noise operational amplifier
• ADA4000-2: dual low cost, precision JFET input operational amplifier
• ADM1185: quad voltage monitor and sequencer
• ADP3303: high accuracy anyCAP^®, 200 mA, low dropout linear regulator

Evaluation Kit Contents
EVAL-AD7928SDZ evaluation board
Evaluation software CD for the AD7928
Mains power supply adapter
Screw/nut kit

Additional Equipment Needed
EVAL-SDP-CB1Z system demonstration platform
PC running Windows Vista or Windows 7 with USB 2.0 port
Signal source
SMB cables
USB cable

Online Resources

Documents Needed
AD7928 data sheet
EVAL-AD7928SDZ user guide

Required Software
AD7928 evaluation software
Design and Integration Files
Schematics, layout files, bill of materials
