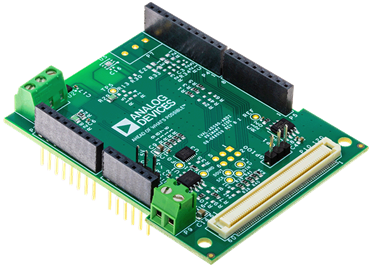

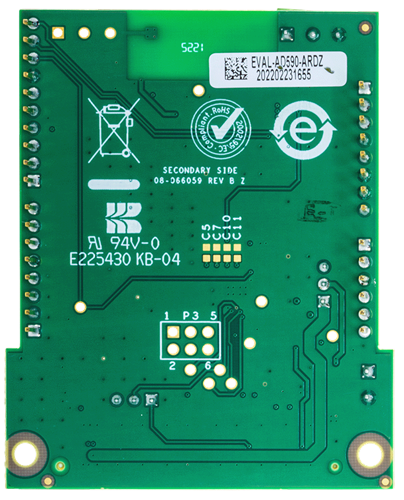

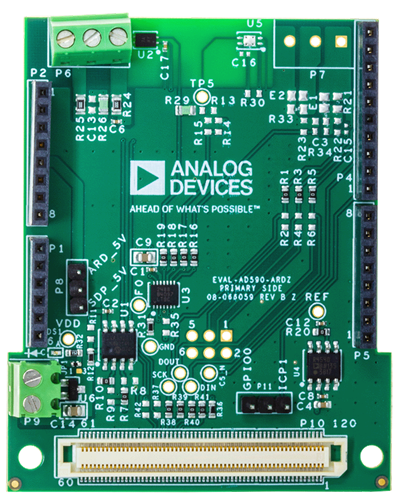

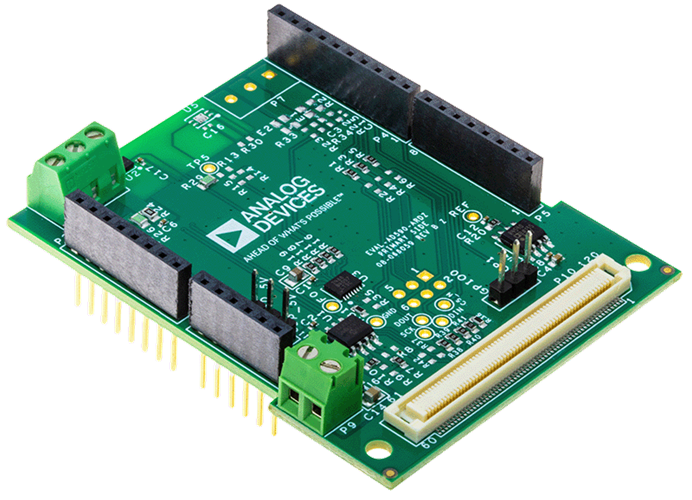

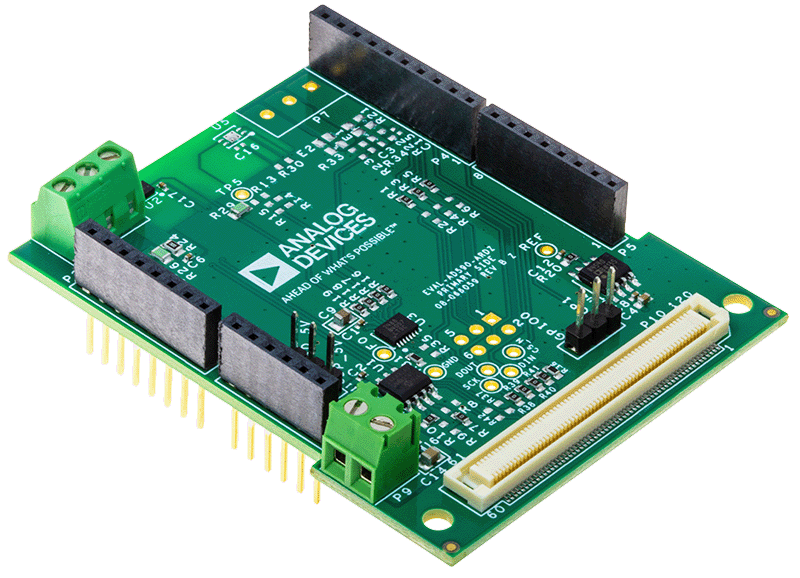

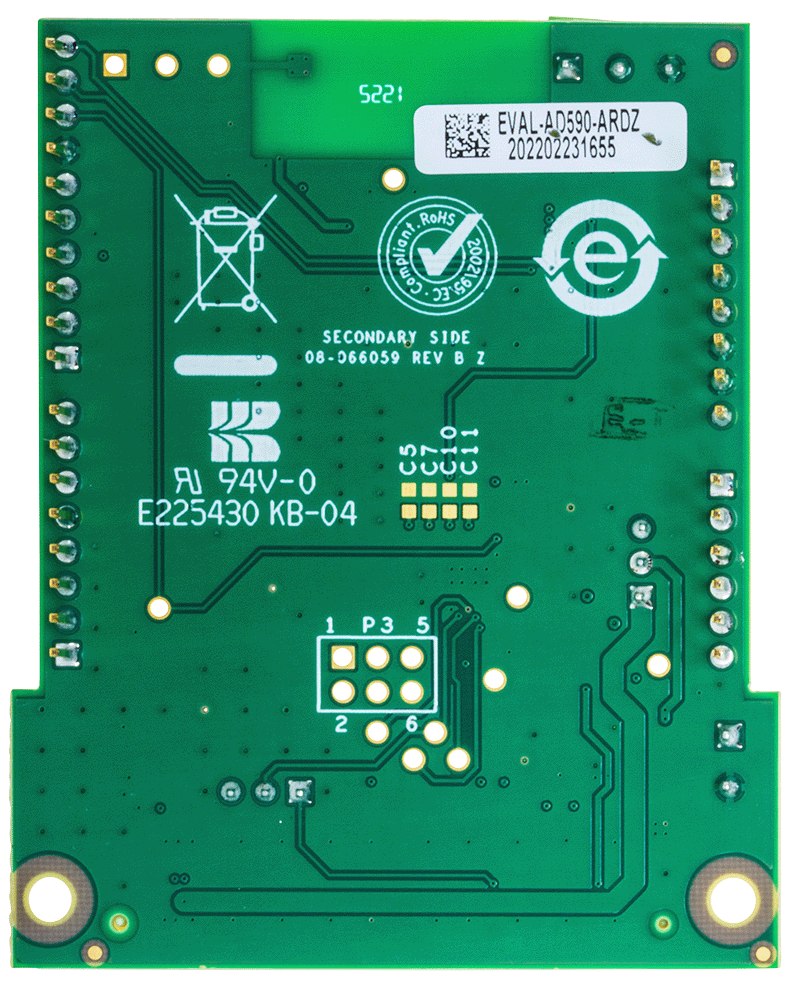

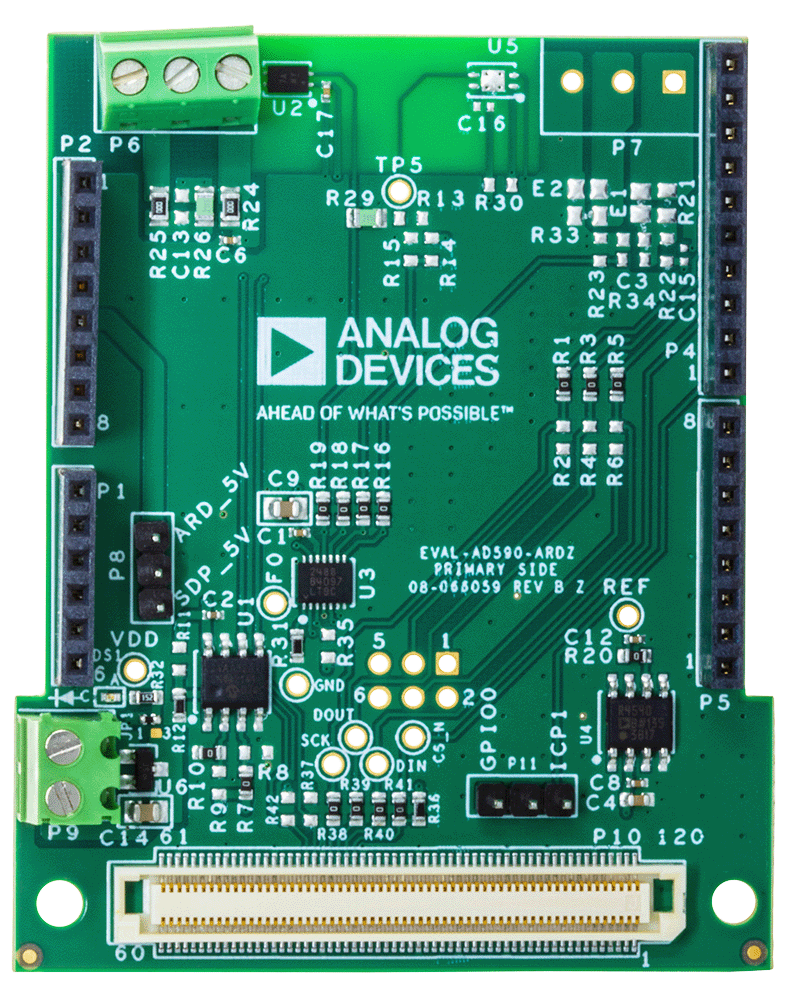

EVAL-AD590
Evaluation Board for the AD590 2-Terminal IC Temperature Transducer
Top
Overview
Product Details
The EVAL-AD590-ARDZ is an evaluation board for demonstrating the performance and ease of use of the AD590, a 2-terminal integrated circuit temperature transducer that produces an output current proportional to absolute temperature. Requiring supply voltages between 4V and 30V, the device acts as a high impedance, constant current regulator passing 1μA/K. Laser trimming of the chip’s thin-film resistors is used to calibrate the device to 298.2μA output at 298.2K (25°C).
Applicable Parts
Getting Started
Evaluation Requirement
- EVAL-AD590-ARDZ Evaluation Board
- SDP/Linduino Controller Board and User Guide
- PC with a USB port and Windows 7 (32-bit) or higher
- Serial Terminal Software (Putty/TeraTerm or similar)
- USB Standard-A to Mini-B cable
Quick Start Procedure
- Connect the EVAL-AD590-ARDZ evaluation board to the interface board using the SDP-120 or Arduino connector (switch the J8 jumper accordingly).
- Connect the interface board thru USB cable to the host PC.
- Compile the code in the MBED compiler.
- Start the terminal emulator to access the evaluation board.
Notes
- Detailed instructions are in the User Guide wiki under Documentation below.
- Evaluation Software example instruction is available in Software section below.
Documentation & Resources
-
EVAL-AD590ARDZ - Design Files4/8/2022ZIP2 M
