DC1983A

LTC5510 | Demo Board - (High Frequency) Input Frequency Range 30MHz to 3GHz; Output Range 1.2GHz to 2.1GHz

Top

Overview

Product Details

Product Details

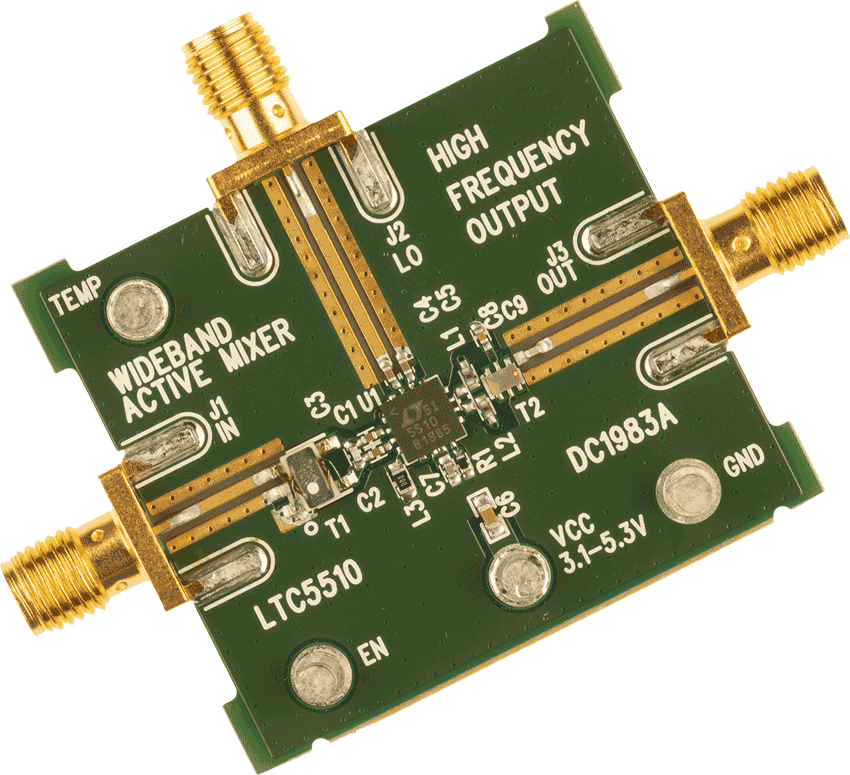

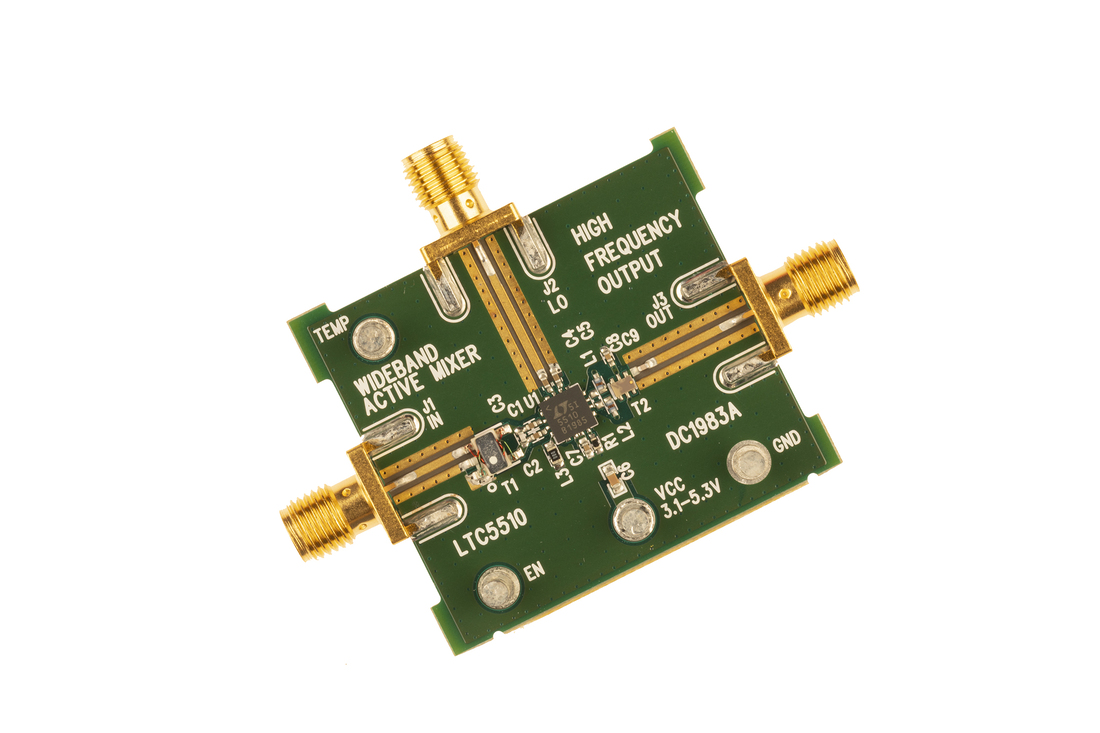

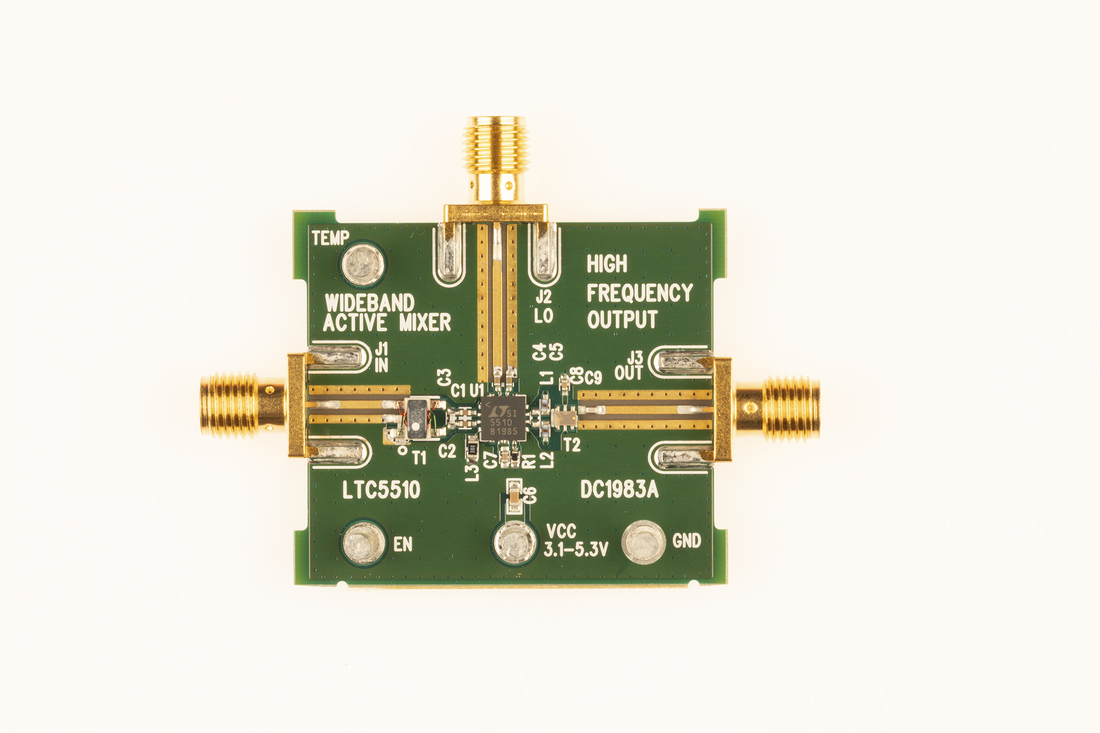

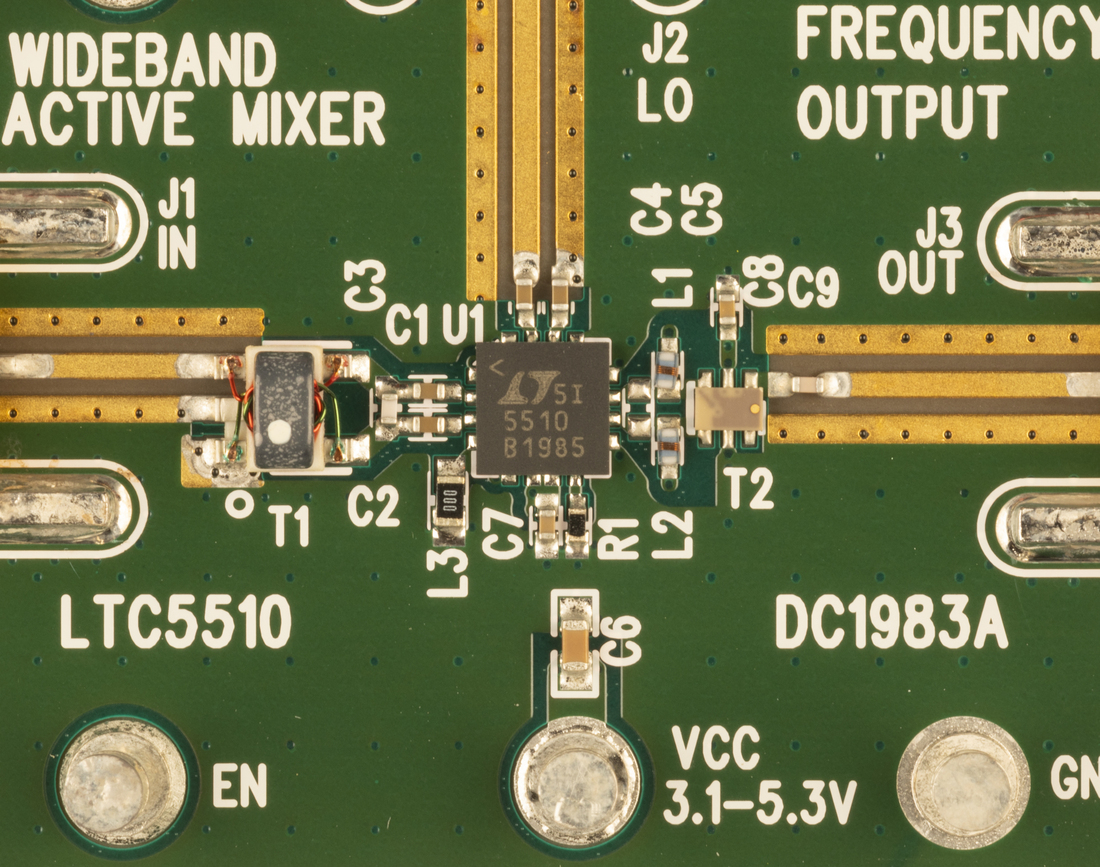

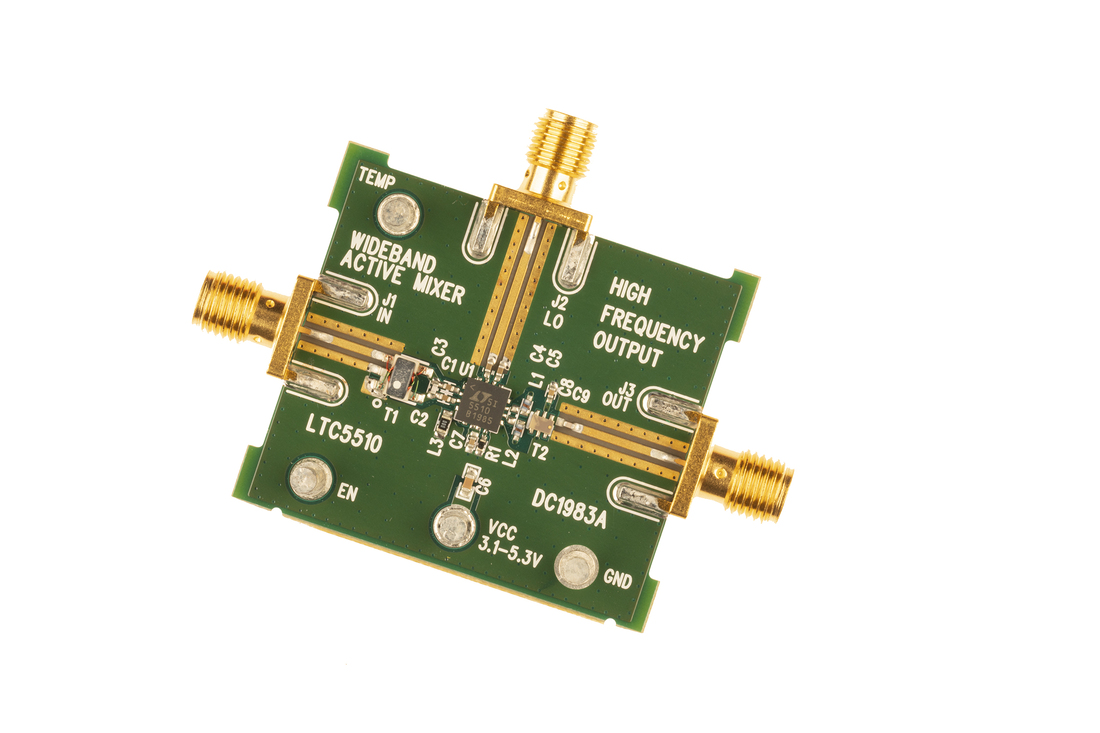

DC1983A: Demo Board for the LTC5510 1MHz to 6GHz Wideband High Linearity Active Mixer.

Markets and Technologies

Wireless Communication Solutions (1)
- mmWave Communication Solutions
Instrumentation and Measurement Solutions (2)
- Communications Test Equipment Solutions
- Radio Frequency (RF) Signal and Vector Network Analyzer Solutions

Applicable Parts

LTC5510

Documentation & Resources

Demo Board Schematic

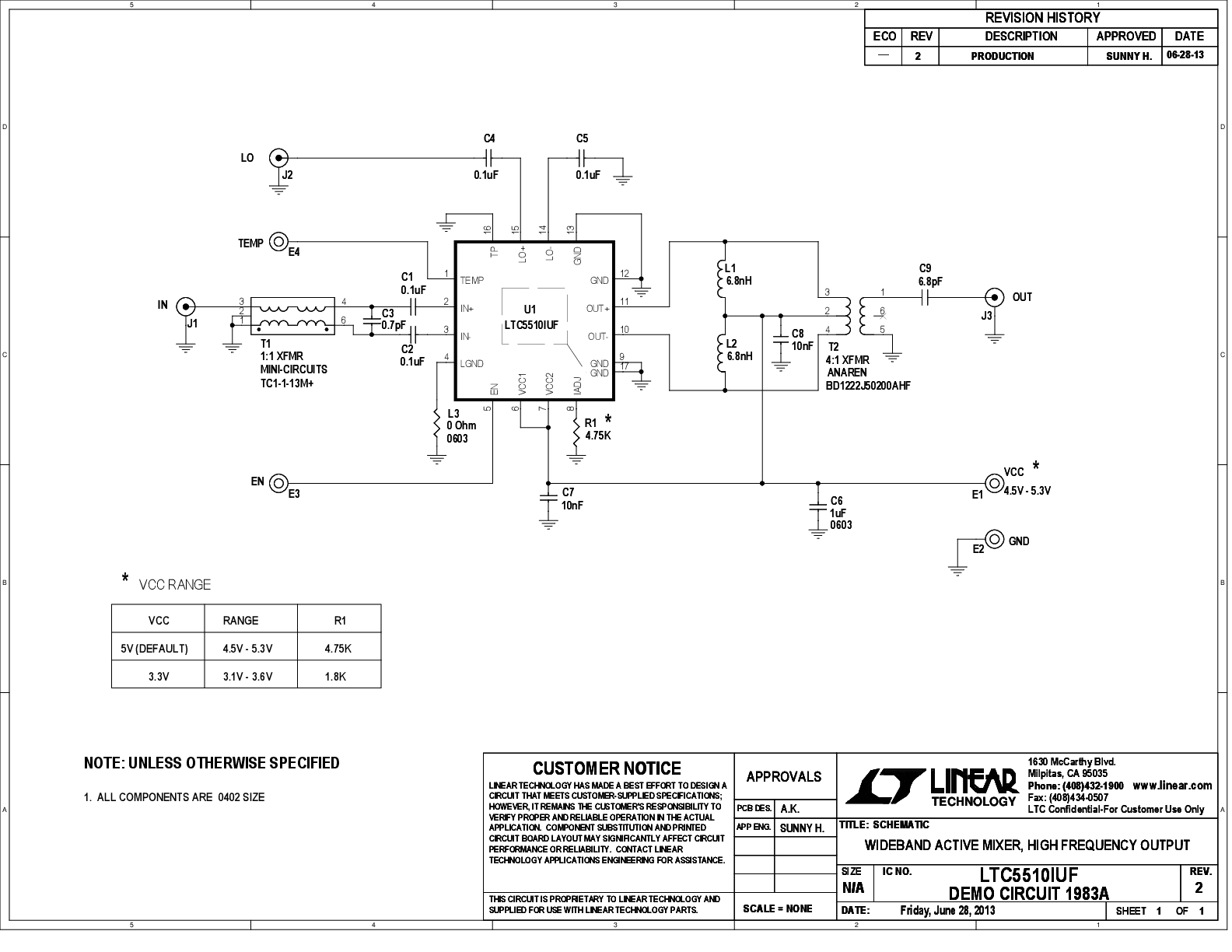

DC1983A - Schematic
8/26/2013

PDF

45K

User Guide

DC1983A - Demo Manual
8/26/2013

PDF

740K

Evaluation Design File

DC1983A - Design Files
8/26/2013

ZIP

1M
