MAX5888

PRODUCTION

3.3V, 16-Bit, 500Msps High Dynamic Performance DAC with Differential LVDS Inputs

Low-Power, 3.3V, 16-Bit, 500Msps LVDS DAC Delivers Industry-Leading 76dBc SFDR Performance

Data Sheet (Rev. 3) Product Selection Table
Part Models
4
1ku List Price
Starting From $52.50
Viewing:

Part Details

  • 500Msps Output Update Rate
  • Single 3.3V Supply Operation
  • Excellent SFDR and IMD Performance
    • SFDR = 76dBc at fOUT = 40MHz (to Nyquist)
    • IMD = -85dBc at fOUT = 10MHz
    • ACLR = 73dB at fOUT = 61MHz
  • 2mA to 20mA Full-Scale Output Current
  • Differential, LVDS-Compatible Digital and Clock Inputs
  • On-Chip 1.2V Bandgap Reference
  • Low 130mW Power Dissipation
  • 68-Lead QFN-EP Package
MAX5888
3.3V, 16-Bit, 500Msps High Dynamic Performance DAC with Differential LVDS Inputs

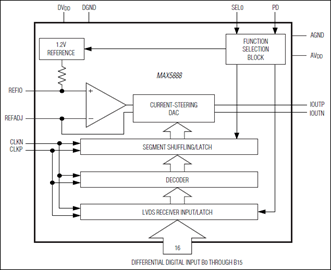

MAX5888: Block Diagram
Add to myAnalog
