MAX3935
10.7Gbps EAM Driver
Low-Power, Packaged 10.7Gbps EAM Driver
Part Details
- Single -5.2V Power Supply
- Low 110mA Supply Current
- 34ps Typical Rise/Fall Time
- Up to 10.7Gbps (NRZ) Operation
- On-Chip Termination Resistors
- Programmable Modulation Voltage Up to 3.0VP-P
- Programmable EAM Bias Voltage Up to 1.2V
- Adjustable Pulse-Width Control
- Selectable Data Retiming Latch
- Modulation Enable Control
- ESD Protection

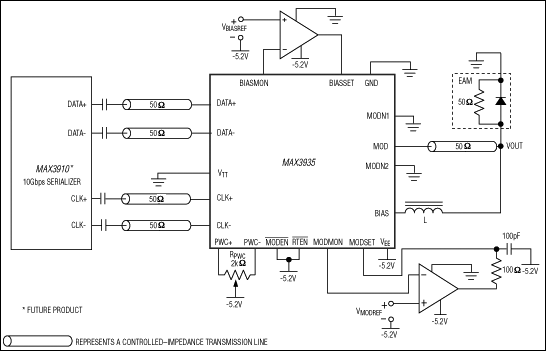

The MAX3935 is designed to drive an electro-absorption modulator (EAM) at data rates up to 10.7Gbps. It provides programmable output levels through externally adjustable bias and modulation currents. This EAM driver is fabricated with Maxim's in-house second-generation SiGe process.
The MAX3935 accepts differential ECL or ground-referenced CML clock and data-input signals. Inputs are terminated with on-chip 50Ω resistors. An input-data retiming latch can be used to reject input-pattern-dependent jitter if a clock signal is available.
The driver can modulate EAM devices at amplitudes up to 3.0VP-P when the device impedance is 50Ω. Typical (20% to 80%) edge speeds are 34ps. The output has an on-chip 75Ω resistor for back termination. The MAX3935 allows for an EAM bias voltage up to 1.2V.
The MAX3935 also includes an adjustable pulse-width control circuit to precompensate for asymmetrical EAM characteristics.
Applications
- Add/Drop Multiplexers
- DWDM
- Metro and Long-Haul Transmitters
- SONET OC-192 and SDH STM-64
- Transmission Systems
