MAX3885

+3.3V, 2.488Gbps, SDH/SONET 1:16 Deserializer with LVDS Outputs

Data Sheet (Rev. 4)
Viewing:

Part Details

  • Single +3.3V Supply
  • 2.488Gbps Serial to 155Mbps Parallel Conversion
  • 660mW Operating Power
  • LVDS Data Outputs and Synchronization Inputs
  • Self-Biasing PECL Inputs Ease AC Coupling
  • Synchronization Inputs for Data Realignment and Reframing
MAX3885
+3.3V, 2.488Gbps, SDH/SONET 1:16 Deserializer with LVDS Outputs

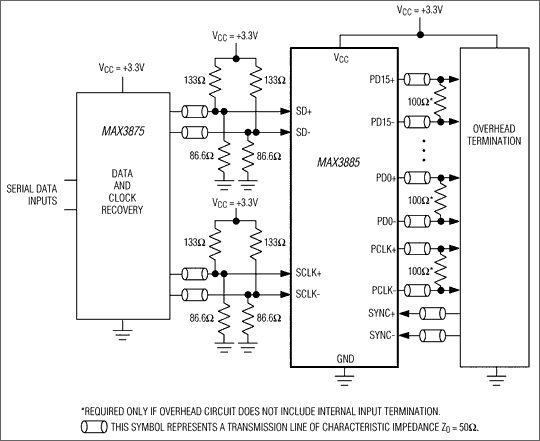

MAX3885: Typical Operating Circuit
