MAX25250

RECOMMENDED FOR NEW DESIGNS

Four Output Mini PMIC for Camera Applications

Industry's Smallest Power Solution for Automotive Cameras with Precision Monitoring

Data Sheet (Rev. 2) Product Selection Table
Part Models
6
1ku List Price
Starting From $1.80
Viewing:

Part Details

  • Multiple Functions for Small Size
    • 1A Synchronous High-Voltage Buck Converter
      • Input Voltage Range 5V to 22V
      • 3V to 4V, and 5V Output Voltage in 50mV Steps
    • Two Synchronous Low-Voltage Buck Converters
      • OUT2 and OUT3 Provide up to 1.2A
      • 0.8V to 3.9875V in 12.5mV Steps
    • LDO for Camera Sensor; 50dB at 1kHz
    • 2.2MHz Operation
    • Active-Low RESET Output–Open-Drain
    • High-Precision
      • ±1.5% Output Voltage Accuracy
      • OV/UV Monitoring
  • Robust for the Automotive Environment
    • Current-Mode, Forced-PWM Operation
    • Overtemperature and Short-Circuit Protection
    • 3.5mm x 3.5mm 20-Pin TQFN
    • -40°C to +125°C Grade 1 Automotive Temperature Range
    • AEC-Q100 Qualified
MAX25250
Four Output Mini PMIC for Camera Applications

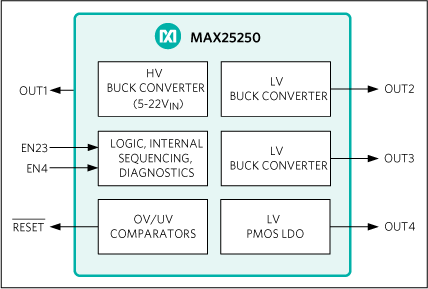

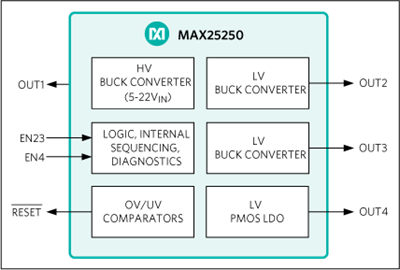

MAX25250 Simplified Block Diagram MAX25250 Functional Diagram MAX25250 Pin Configuration
