MAX20499

RECOMMENDED FOR NEW DESIGNS

Automotive Single 8A/12A Step-Down Converter Family

High-Efficiency, Synchronous Step-Down 8A/12A Converters with a 3V to 5.5V Input Voltage

Data Sheet (Rev. 7) Product Selection Table

Part Models: 20
1ku List Price: Starting From $1.66

Viewing:

Part Details

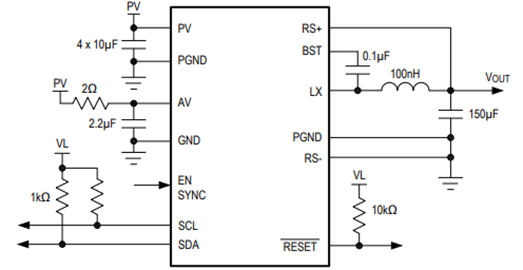

High-Efficiency DC-DC Converter
Up to 12A peak output current:
- MAX20499A: 8A
- MAX20499B: 12A
Differential Remote Voltage Sensing
3.0V to 5.5V Operating Supply Voltage
I²C Controlled Output Voltage: 0.5V to 1.275V in6.25mV Steps
Excellent Load-Transient Performance
Programmable Compensation
2.2MHz or 1.1MHz Operation
±1.5% Output Voltage Accuracy
Active-Low RESET Output
Current Mode, Forced-PWM Operation
Overtemperature and Short-Circuit Protection
3.5mm x 3.75mm 17-Pin Side-Wettable FC2QFN
-40°C to +125°C Grade 1 Automotive TemperatureRange
AEC-Q100 Qualified

Part Models: 20
1ku List Price: Starting From $1.66

Documentation

Data Sheet 1

MAX20499: Automotive Single 8A/12A Step-Down Converter Family Data Sheet (Rev.7) 07/01/2019

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX20499AFOB/VY+	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499AFOB/VY+T	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499AFOE/VY+	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499AFOE/VY+T	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499AFOG/VY+	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499AFOG/VY+T	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499BFOF/VY+	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499BFOF/VY+T	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499BFOH/VY+	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499BFOH/VY+T	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499BFOI/VY+	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499BFOI/VY+T	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499BFOL/VY+	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499BFOL/VY+T	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499BFOM/VY+	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499BFOM/VY+T	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499BFON/VY+	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499BFON/VY+T	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499BFOO/VY+	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20499BFOO/VY+T	3.5mm x 3.75mm x 0.7mm, 17-Pin FC2QFN	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 14, 2021 - 2159 DESIGN
		pcn_2159
MAX20499BFOF/VY+	PRODUCTION
MAX20499BFOH/VY+	PRODUCTION
MAX20499BFOH/VY+T	PRODUCTION
MAX20499BFOI/VY+	PRODUCTION
MAX20499BFOL/VY+	PRODUCTION
MAX20499BFOM/VY+	PRODUCTION
MAX20499BFON/VY+	PRODUCTION
MAX20499BFOO/VY+	PRODUCTION
MAX20499BFOO/VY+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

EE-Sim Power® Tools 1

The EE-Sim DC-DC Converter Tool uses your requirements to quickly create a complete power design including a schematic, BOM with commercially available parts, and time and frequency domain simulations. Your customized schematic can be downloaded for further analysis in the standalone EE-Sim OASIS Simulator, featuring SIMPLIS and SIMetrix SPICE engines.

Start EE-Sim Now

Evaluation Kits

Evaluation Kit for the MAX20499

Buy Now View Details

Features and Benefits

Full Silicon Integration Allows for Improved Efficiency and Minimized Space
Input Voltage Range From 3.0V to 5.5V
Output Voltages Range From 0.5V to 1.275V
I²C Controlled Output Voltage (6.25mV Steps)
Excellent Load Transient Response
Internally Programmable Compensation
High Switching Frequency of 2.2MHz
- Forced PWM Mode
Enable and Reset Connections Available
Loop Measurement Ready
Proven PCB Layout
Fully Assembled and Tested

Product Details

The MAX20499A EV Kit is a fully assembled and tested PCB that allows designers to explore the capabilities of the MAX20499A and the MAX20499B step-down (buck) voltage regulators in an evaluation environment. The MAX20499A has an output current rating of 8A; the MAX20499B has an output current rating of 12A. Both devices operate at 3.0V to 5.5V input supply voltage and can regulate across a voltage range from 0.5V to 1.275V.

The devices feature a 2.2MHz fixed-frequency PWM mode for better noise immunity and load transient response. The 2.2MHz frequency operation accommodates all ceramic capacitors and minimizes the need for external components. The programmable spreadspectrum frequency modulation minimizes radiated electromagnetic emissions. Integrated low R_DS(ON) switches improve efficiency at heavy loads and simplify layout.

The I²C interface supports dynamic voltage adjustment with programmable slew rates. Other features include programmable soft-start, over-current protection, and over-temperature protection.

The MAX20499A EV Kit comes pre-tested and ready for immediate use.

Applications

Automotive Entertainment Systems
SoC Core Power
