MAX1736

PRODUCTION

SOT23, Single-Cell Li+ Battery Charger for Current-Limited Supply

SOT23, Single-Cell Li+ Battery Charger

Data Sheet (Rev. 1) Product Selection Table
Part Models
4
1ku List Price
Starting From $1.80
Viewing:

Part Details

  • Small 6-Pin SOT23 Package
  • Stand-Alone or µP-Controlled Operation
  • 0.5% Voltage Set-Point Accuracy
  • Lowest Power Dissipation
  • Low 4.7V min Input Voltage
  • Top-Off Charging to Achieve Full Battery Capacity
  • No Inductor Required
  • Safely Precharges Near-Dead Cells
  • Automatic Power-Down when Input Power Removed
MAX1736
SOT23, Single-Cell Li+ Battery Charger for Current-Limited Supply

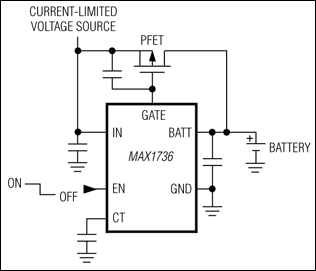

MAX1736: Typical Operating Circuit
