MAX1258

PRODUCTION

12-Bit, Multichannel ADCs/DACs with FIFO, Temperature Sensing, and GPIO Ports

Data Sheet (Rev. 8) Product Selection Table
Part Models
2
1ku List Price
Starting From $19.00
Viewing:

Part Details

  • Reduce Parts Count and Board Space with Fully Integrated System Monitor and Controller
    • Monitors 8 (MAX1220) or 16 Voltages (MAX1257/MAX1258) Using 12-Bit, 225ksps ADC
    • Controls 8 Output Voltage Level with 12-Bit, Octal, 2µs Settling DAC with Ultra-Low Glitch Energy (4n x VS)
    • Measures Temperature with Internal ±1°C Accurate Temperature Sensor
    • Options for Using Either Internal 2.5V (MAX1257) Reference, 4.096V (MAX1220/MAX1258) Reference or External Reference
    • Includes 4 (MAX1220) or 12 (MAX1257/1258) GPIOs
  • Lower Processor Requirements and Minimize Power Consumption and Heat Dissipation
    • On-Chip FIFO, Channel-Scan Mode and Data Averaging
    • Autoshutdown Between Conversions
    • Low-Power ADC
      • 2.5mA at 225ksps
      • 22µA at 1ksps
    • Low-Power DAC: 1.5mA
    • TQFN Package with Exposed Pad
  • Enable Maximum Dynamic Range with Availability of 2 Analog Power Supply Options: +2.7V to +3.6V (MAX1257) or +4.75V to +5.25V (MAX1220/MAX1258)
MAX1258
12-Bit, Multichannel ADCs/DACs with FIFO, Temperature Sensing, and GPIO Ports

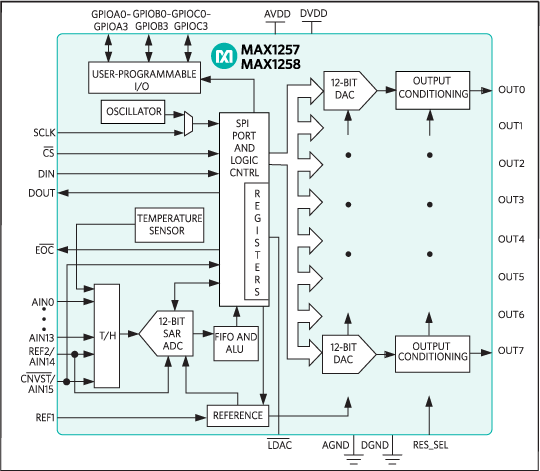

MAX1220, MAX1257, MAX1258: Functional Diagram
