LTC3417A-2

PRODUCTION

Dual Synchronous 1.5A/1A 4MHz Step-Down DC/DC Regulator

Part Models: 8
1ku List Price: Starting From $3.52

Viewing:

Part Details

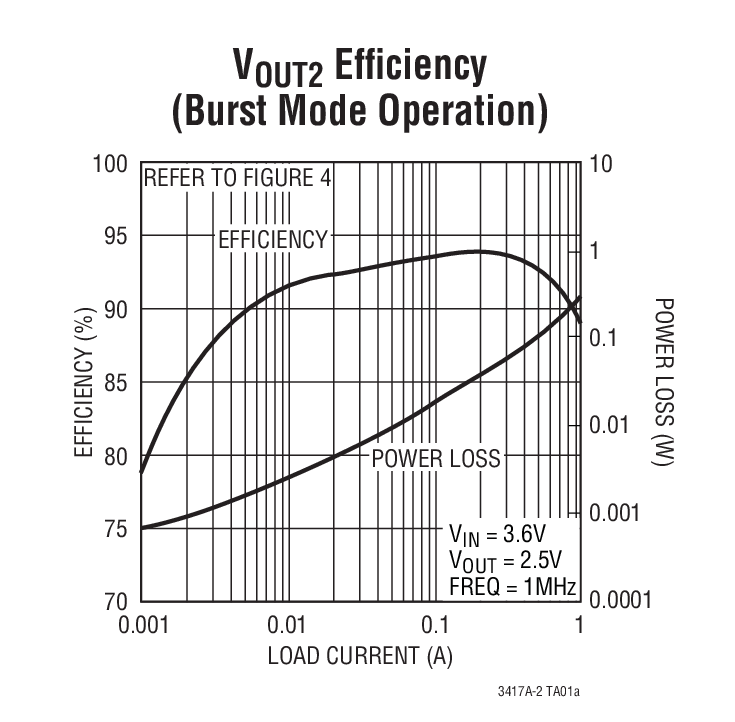

High Efﬁciency: Up to 95%
1.5A/1A Guaranteed Minimum Output Current
Synchronizable to External Clock
No Schottky Diodes Required
Programmable Frequency Operation: 1.5MHz or Adjustable From 0.6MHz to 4MHz
Low Ripple (<35mV_P-P) BurstMode^® Operation
I_Q: 125μA in Sleep
Low R_DS(ON) Internal Switches
Short-Circuit Protected
V_IN: 2.25V to 5.5V
Current Mode Operation for Excellent Line and Load Transient Response
Ultralow Shutdown Current: I_Q < 1μA
Low Dropout Operation: 100% Duty Cycle
Power Good Ouput
Phase Pin Selects 2nd Channel Phase Relationship with Respect to 1st Channel
Internal Soft-Start with Individual Run Pin Control

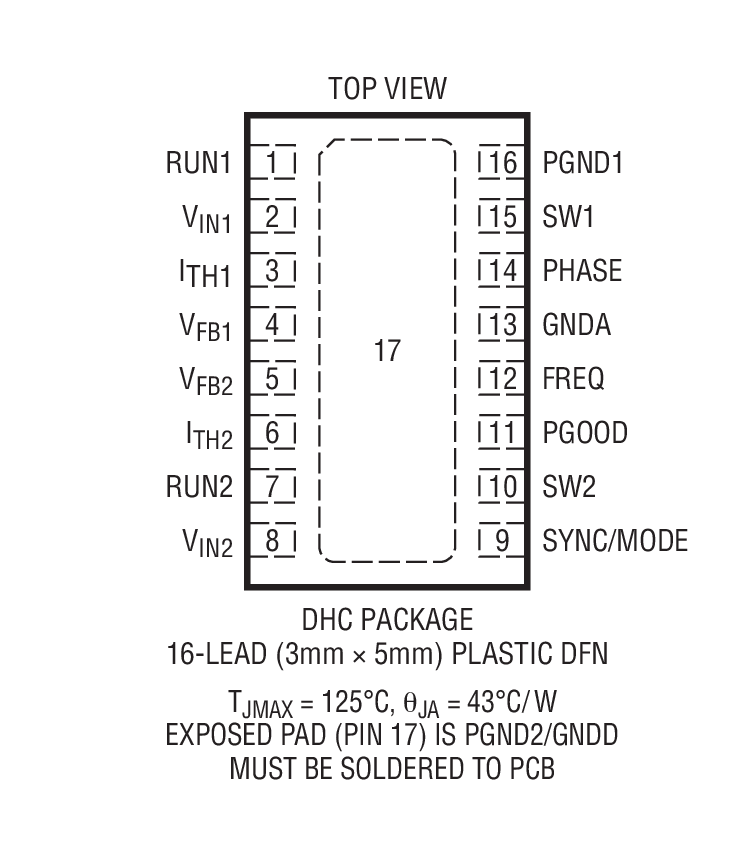

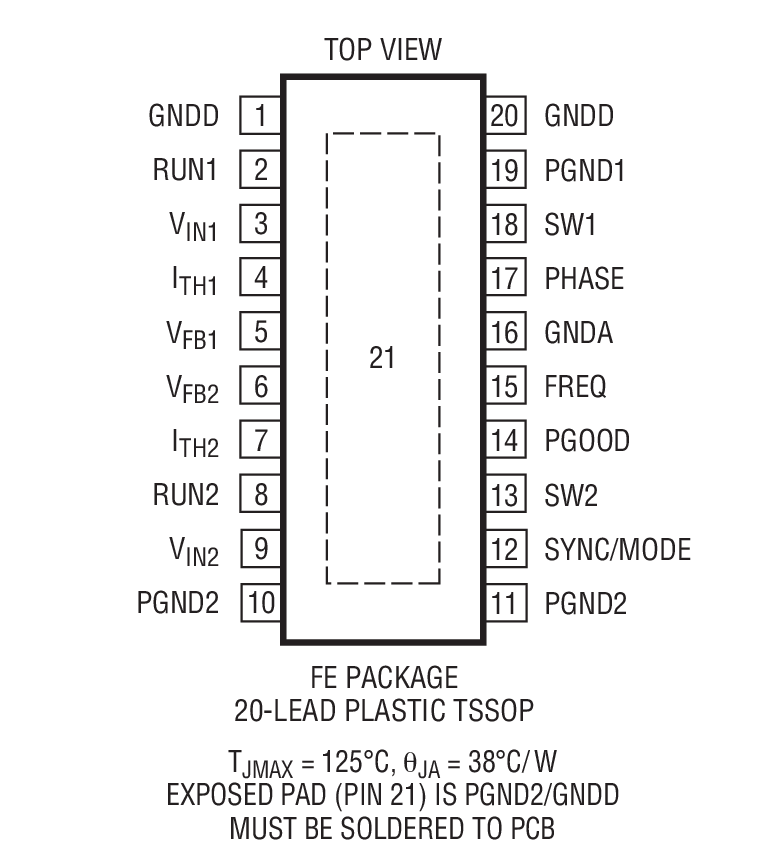

Available in Small Thermally Enhanced (5mm × 3mm) DFN and 20-Lead TSSOP Packages

The LTC3417A-2 is a dual constant frequency, synchronous step-down DC/DC converter. Intended for medium power applications, it operates from a 2.25V to 5.5V input voltage range and has a constant programmable switching frequency, allowing the use of tiny, low cost capacitors and inductors 2mm or less in height. Each output voltage is adjustable from 0.8V to 5V. Internal synchronous, low R_DS(ON) power switches provide high efficiency without the need for external Schottky diodes.

A user selectable mode input allows the user to trade off ripple voltage for light load efficiency. Burst Mode operation provides high efficiency at light loads, while Pulse Skip mode provides low ripple noise at light loads. A phase mode pin allows the second channel to operate in-phase or 180° out-of-phase with respect to channel 1. Out-of-phase operation produces lower RMS current on V_IN and thus lower stress on the input capacitor.

To further maximize battery life, the P-channel MOSFETs are turned on continuously in dropout (100% duty cycle) and both channels draw a total quiescent current of only 100μA. In shutdown, the device draws <1μA.


	Features	Notes
LTC3417	-	-
LTC3417A	Improved Channel Matching	-
LTC3417A-1	Power On Reset	Recommended For New Designs
LTC3417A-2	Power Good	Recommended For New Designs

Applications

GPS/Navigation Systems
Automotive Instrumentation
PC Cards
Industrial Power Supplies
General Purpose Point of Load DC/DC

Part Models: 8
1ku List Price: Starting From $3.52

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3417AEDHC-2#PBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3417AEDHC-2#TRPBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3417AEFE-2#PBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3417AEFE-2#TRPBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3417AIDHC-2#PBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3417AIDHC-2#TRPBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3417AIFE-2#PBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3417AIFE-2#TRPBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 6, 2022 - 22_0068 Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL
		PCN22_0068_Form Material_Report Delta Qualification Matrix
LTC3417AEFE-2#PBF	PRODUCTION
LTC3417AEFE-2#TRPBF	PRODUCTION
LTC3417AIFE-2#PBF	PRODUCTION
LTC3417AIFE-2#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Digital Temperature Sensors 1
LTC2991	RECOMMENDED FOR NEW DESIGNS	Octal I²C Voltage, Current, and Temperature Monitor
Multiple Output Buck Regulators 1
LTC3880	RECOMMENDED FOR NEW DESIGNS	Dual Output PolyPhase Step-Down DC/DC Controller with Digital Power System Management
Silicon Oscillators 1
LTC6909	PRODUCTION	1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation
Surge Stopper, Overvoltage, and Overcurrent Protection 1
LTC4365	RECOMMENDED FOR NEW DESIGNS	Overvoltage, Undervoltage and Reverse Supply Protection Controller

Tools & Simulations

LTspice 1

LTC3417A-2 - Step-Down (Buck) Regulators

Models for the following parts are available in LTspice:

LTC3417
LTC3417A
LTC3417A-1
LTC3417A-2

LTpowerCAD 1

LTC3417A-2 Project - Dual 4MHz Buck Regulator (3-5V to 1.8V @ 1.5A & 2.5V @ 1A)

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

LTpowerCAD^® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.

Evaluation Kits

LTC3417AEDHC-2 Demo Board | Dual Synchronous 1.5/1A 1A 4MHz Step-Down DC/DC Regulator

Buy Now View Details

Product Details

Demonstration circuit DC1336 is a dual output regulator consisting of two constant-frequency step-down converters, based on the LTC3417A-2 monolithic dual synchronous buck regulator. The DC1336 has an input voltage range of 2.25V to 5.5V, with one regulator capable of delivering up to 1.5A of output current and the other regulator capable of delivering up to 1A of output current. The DC1336 can operate in either Burst Mode^® or Pulse-Skipping operation. In shutdown, the DC1336 can run off of less than 1 uA total. The DC1336 is a very efficient circuit: up to 94% for either circuit.

Resources

DC1336A - Demo Manual
206.00K

DC1336A - Design File
1.00M

DC1336A - Schematic
86.00K
