LT6013

PRODUCTION

Single 145µA, 9.5nV/√Hz, AV ≥ 5, Rail-to-Rail Output Precision Op Amps

Data Sheet Product Selection Table

Part Models: 16
1ku List Price: Starting From $1.51

Viewing:

Part Details

35µV Maximum Offset Voltage (LT6013A)

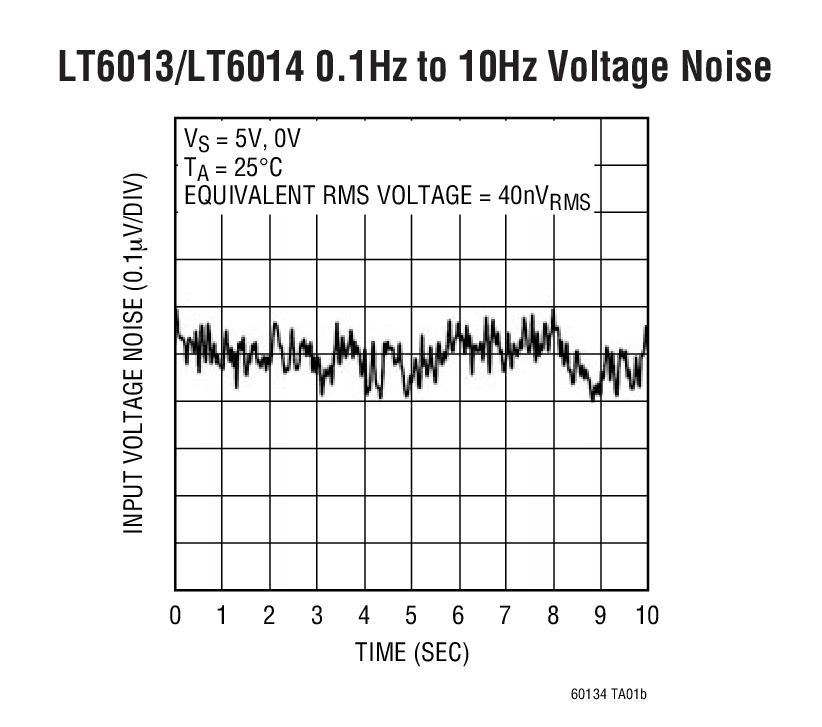

Low 1/f Noise:

200nV_P-P (0.1Hz to 10Hz)
40nV_RMS (0.1Hz to 10Hz)

Low White Noise: 9.5nV/√Hz (1kHz)
Rail-to-Rail Output Swing
145µA Supply Current per Amplifier
250pA Maximum Input Bias Current (LT6013A)
AV ≥ 5 Stable; Up to 500pF C_LOAD
0.2V/µs Slew Rate
1.4MHz Gain Bandwidth Product
120dB Minimum Voltage Gain, VS = ±15V
0.8µV/°C Maximum V_OS Drift
2.7V to ±18V Supply Voltage Operation
Operating Temperature Range: -40°C to 85°C

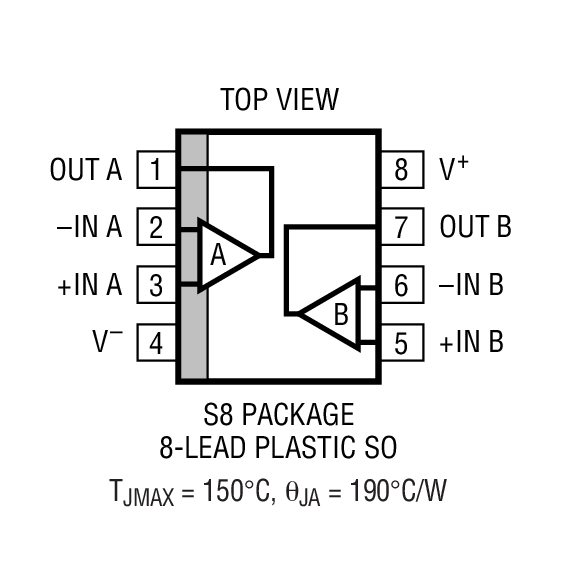

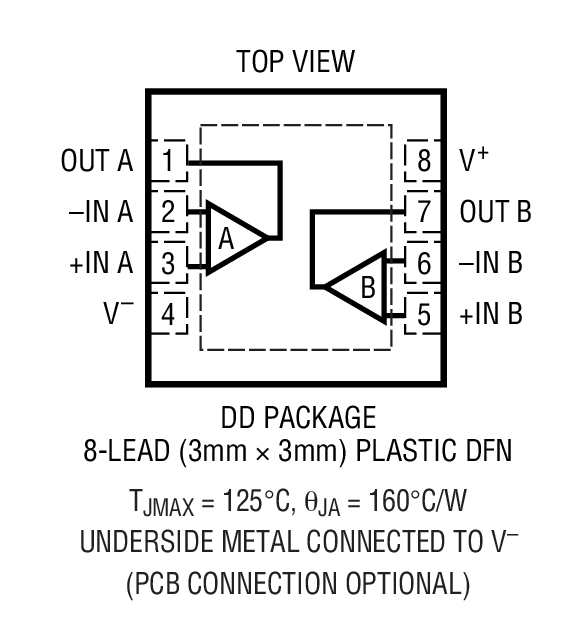

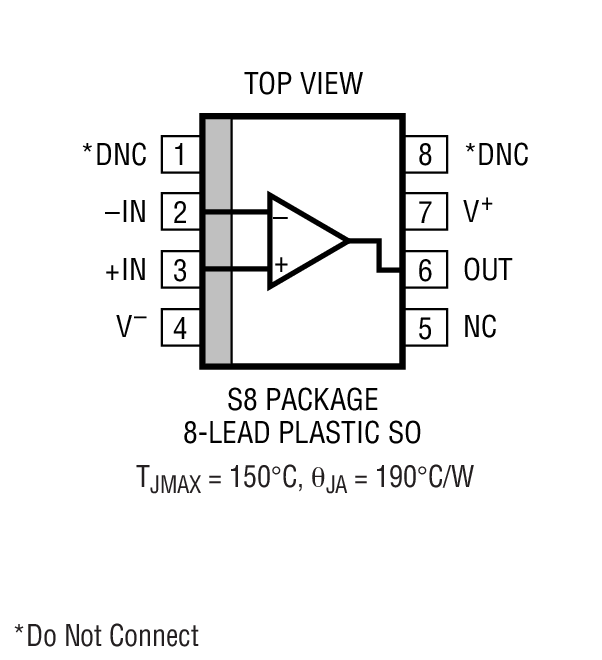

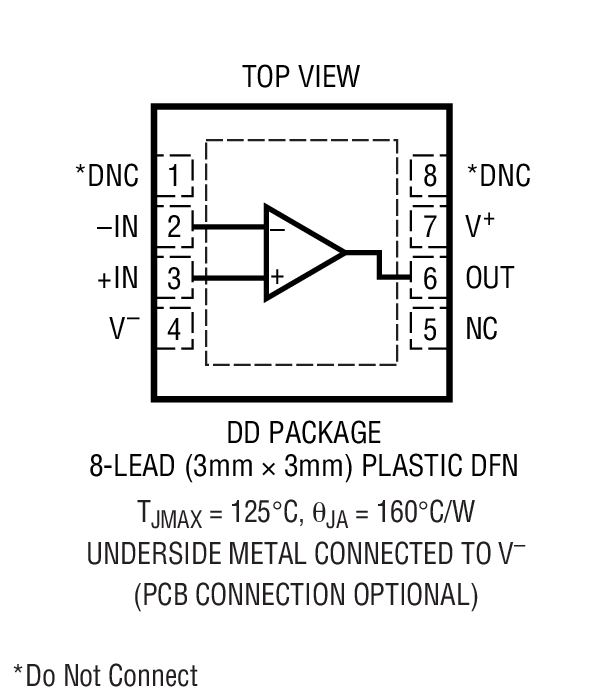

Available in SO-8 and Space Saving 3mm × 3mm DFN Packages

Part Models: 16
1ku List Price: Starting From $1.51

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT6013ACDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6013ACDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6013ACS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6013ACS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6013AIDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6013AIDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6013AIS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6013AIS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6013CDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6013CDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6013CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6013CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6013IDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6013IDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6013IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6013IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 24, 2024 - 24_0246 Migrating Bottom Trace Code Marking to Top Side Laser Marking for SOIC_N Package
		PCN24_0246_Form Material_Report Marking Comparison Delta Qualification Matrix
LT6013ACS8#PBF	PRODUCTION
LT6013ACS8#TRPBF	PRODUCTION
LT6013AIS8#PBF	PRODUCTION
LT6013AIS8#TRPBF	PRODUCTION
LT6013CS8#PBF	PRODUCTION
LT6013CS8#TRPBF	PRODUCTION
LT6013IS8#PBF	PRODUCTION
LT6013IS8#TRPBF	PRODUCTION
Oct 12, 2022 - 22_0255 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)
		PCN22_0255_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT6013ACS8#PBF	PRODUCTION
LT6013ACS8#TRPBF	PRODUCTION
LT6013AIS8#PBF	PRODUCTION
LT6013AIS8#TRPBF	PRODUCTION
LT6013CS8#PBF	PRODUCTION
LT6013CS8#TRPBF	PRODUCTION
LT6013IS8#PBF	PRODUCTION
LT6013IS8#TRPBF	PRODUCTION
Jun 16, 2021 - 21_0026 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0026_Form Material_Report Delta Qualification Matrix
LT6013ACS8#PBF	PRODUCTION
LT6013ACS8#TRPBF	PRODUCTION
LT6013AIS8#PBF	PRODUCTION
LT6013AIS8#TRPBF	PRODUCTION
LT6013CS8#PBF	PRODUCTION
LT6013CS8#TRPBF	PRODUCTION
LT6013IS8#PBF	PRODUCTION
LT6013IS8#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Precision Resistor Network 1
LT5400	RECOMMENDED FOR NEW DESIGNS	Quad Matched Resistor Network

Tools & Simulations

LTspice 1

LT6013 - Operational Amplifiers (Op Amps)

Models for the following parts are available in LTspice:

LT6013

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
