LT1213

PRODUCTION

28MHz, 12V/µs, Single Supply Dual Precision Op Amps

Data Sheet Product Selection Table

Part Models: 4
1ku List Price: Starting From $3.66

Viewing:

Part Details

Slew Rate: 12V/µs Typ
Gain-Bandwidth Product: 28MHz Typ
Fast Settling to 0.01%

2V Step to 200µV: 500ns Typ
10V Step to 1mV: 1.1µs Typ

Excellent DC Precision in All Packages

Input Offset Voltage: 275µV Max
Input Offset Voltage Drift: 6µV/°C Max
Input Offset Current: 40nA Max

Input Bias Current: 200nA Max
Open-Loop Gain: 1200V/mV Min

Single Supply Operation

Input Voltage Range Includes Ground
Output Swings to Ground While Sinking Current

Low Input Noise Voltage: 10nV/√Hz Typ
Low Input Noise Current: 0.2pA/√Hz Typ
Specified at 3.3V, 5V and ±15V
Large Output Drive Current: 30mA Min
Low Supply Current per Amplifier: 3.5mA Max

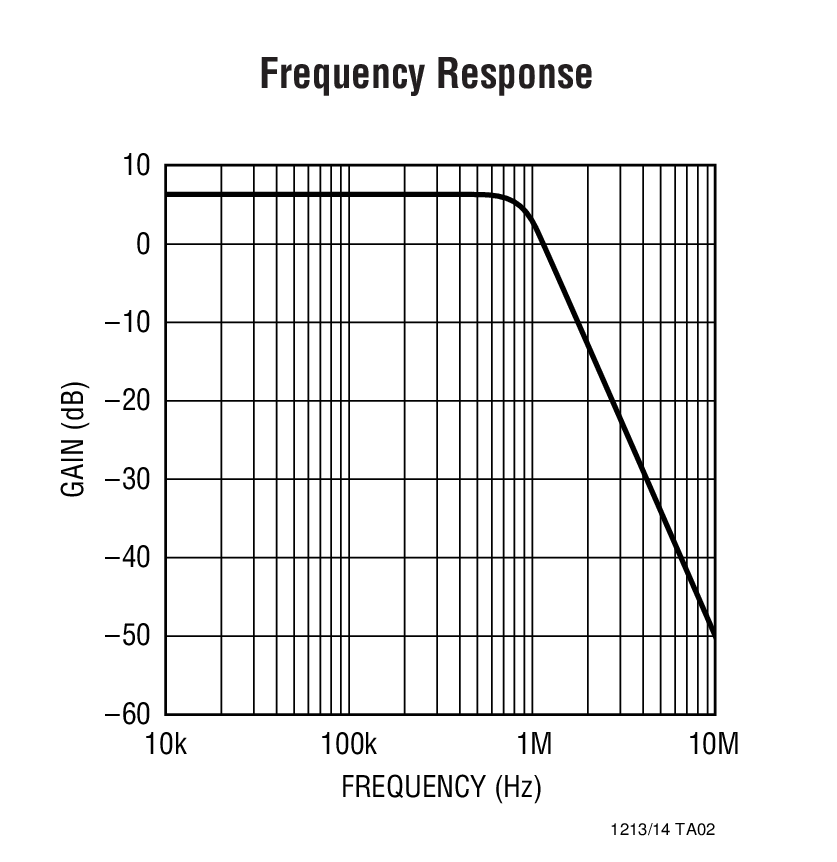

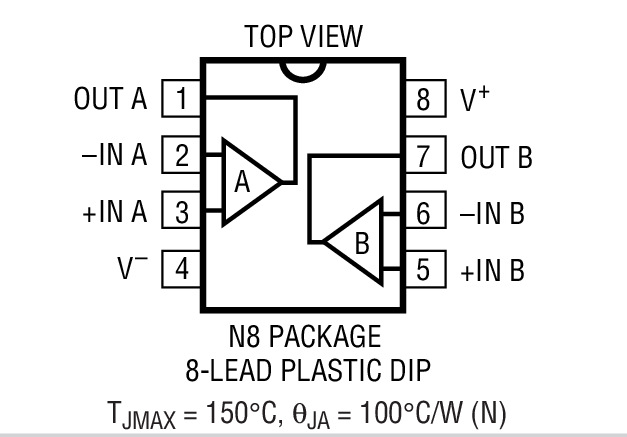

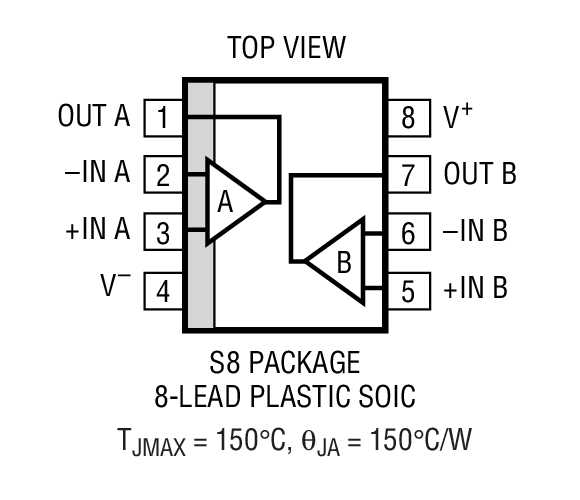

Dual in 8-Pin DIP and SO-8

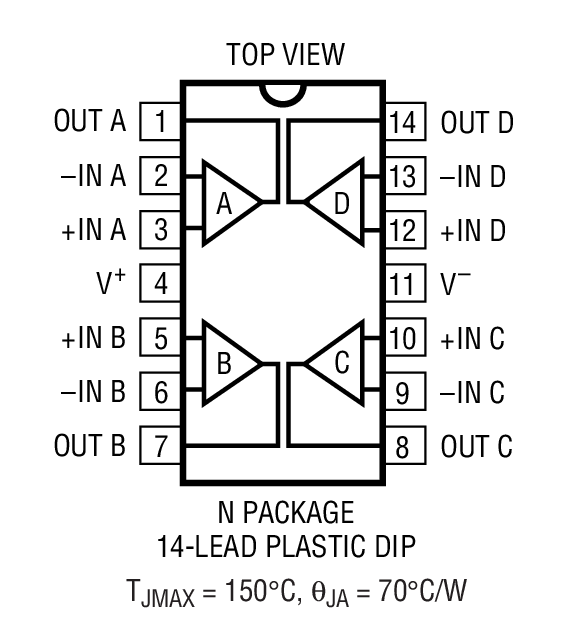

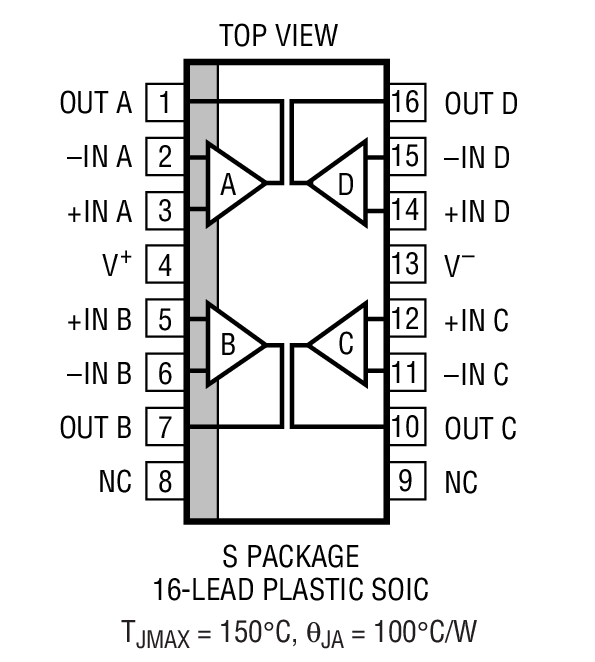

Quad in 14-Pin DIP and NARROW SO-16

Part Models: 4
1ku List Price: Starting From $3.66
