DS33Z41

Quad IMUX Ethernet Mapper

Data Sheet (Rev. 1)
Viewing:

Part Details

  • 10/100 IEEE 802.3 Ethernet MAC (MII and RMII) Half/Full Duplex with Automatic Flow Control
  • Layer 1 Inverse Multiplexing Allows Bonding of Up to 4 T1/E1/J1 or DSL Links
  • Supports Up to 7.75ms Differential Delay
  • Channel (Byte) Interleaved Bus Operation
  • In-Band OAM and Signaling Capability
  • HDLC/LAPS Encapsulation with Programmable FCS, Interframe Fill
  • Committed Information Rate Controller Provides Fractional Allocation in 512kbps Increments
  • Programmable BERT for the Serial Interface
  • External 16MB, 100MHz SDRAM Buffering
  • Parallel Microprocessor Interface
  • 1.8V Operation with 3.3V Tolerant I/O
  • IEEE 1149.1 JTAG Support
    • DS33Z41
    Quad IMUX Ethernet Mapper

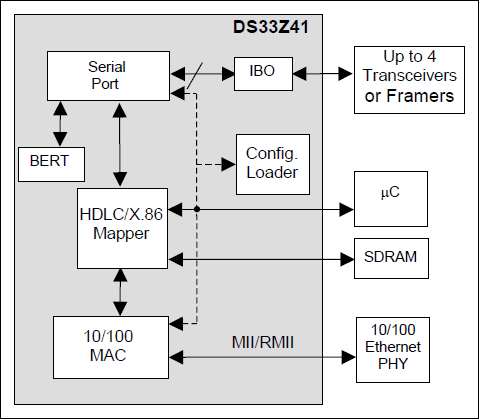

    DS33Z41: Functional Diagram
    Add to myAnalog

    Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

    Create New Project
    Ask a Question

    Documentation

    Data Sheet 1

    Reliability Data 1

    Application Note 1

    Technical Articles 1

    Learn More
    Add to myAnalog

    Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

    Create New Project

    Hardware Ecosystem

    Parts Product Life Cycle Description
    Product 4
    DS33Z44
    		Quad Ethernet Mapper
    DS33Z11
    		Ethernet Mapper
    DS2155
    		T1/E1/J1 Single-Chip Transceiver
    DS21458
    		Quad T1/E1/J1 Transceivers
    Modal heading
    Add to myAnalog

    Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

    Create New Project

    Tools & Simulations

    BSDL Model File 1

    S-Parameter 1

    IBIS Model 1

    Evaluation Kits

    DS33Z41DK

    Ethernet Transport Design Kit

    Buy Now View Details

    Features and Benefits

    • Demonstrates Key Functions of DS33Z41 Ethernet Transport Chipset
    • Includes Resource Card for DS21458 T1/E1 quad Transceiver with Transformers, RJ48 Network Connectors, and Termination
    • Provides Support for Hardware and Software Modes
    • On-Board MMC2107 Processor and ChipView Software Provide Point-and-Click Access to the DS33Z41 Register Set
    • All DS33Z41 Interface Pins are Easily Accessible for External Data Source/Sink
    • LEDs for Loss-of-Signal, Queue Overflow, Ethernet Link, Tx/Rx, and Interrupt Status
    • Easy-to-Read Silk Screen Labels Identify the Signals Associated with All Connectors, Jumpers, and LEDs

    Product Details

    The DS33Z41 design kit is an easy-to-use evaluation board for the DS33Z41 Ethernet transport-over-serial link device. The DS33Z41DK is intended to be used with a resource card for the serial link. The serial link resource cards are complete with transceivers, transformers, and network connections. Dallas' ChipView software is provided with the design kit, giving point-and-click access to configuration and status registers from a Windows®-based PC. On-board LEDs indicate receive loss-of-signal, queue overflow, Ethernet link, Tx/Rx, and interrupt status.

    Applications

    • Bonded Transparent LAN Service
    • Ethernet Delivery Over T1/E1/J1, T3/E3, OC-1/EC-1, G.SHDSL, or HDSL2/4
    • LAN Extension
    DS33Z41DK
    Ethernet Transport Design Kit
