ADP5041

RECOMMENDED FOR NEW DESIGNS

Micro PMU with 1.2 A Buck, Two 300 mA LDOs, Supervisory, Watchdog, and Manual Reset

Data Sheet (Rev. B) Product Selection Table

Part Models: 1
1ku List Price: Starting From $2.30

Viewing:

Part Details

Input voltage range: 2.3 V to 5.5 V
One 1.2 A buck regulator
Two 300 mA LDOs
20-lead, 4 mm × 4 mm LFCSP package
Overcurrent and thermal protection
Soft start
Undervoltage lockout
Open-drain processor reset with externally adjustable threshold monitoring
Guaranteed reset output valid to V_AVIN = 1 V
Manual reset input
Watchdog refresh input

Buck key specifications
- Output voltage range: 0.8 V to 3.8 V
- Current mode topology for excellent transient response
- 3 MHz operating frequency
- Peak efficiency up to 96%
- Uses tiny multilayer inductors and capacitors
- Mode pin selects forced PWM or auto PWM/PSM mode
- 100% duty cycle low dropout mode
LDOs key specifications
- Output voltage range: 0.8 V to 5.2 V
- Low input supply voltage from 1.7 V to 5.5 V
- Stable with 2.2 μF ceramic output capacitors
- High PSRR
- Low output noise
- Low dropout voltage
- −40°C to +125°C junction temperature range

Part Models: 1
1ku List Price: Starting From $2.30

Documentation

Data Sheet 1

ADP5041: Micro PMU with 1.2 A Buck, Two 300 mA LDOs, Supervisory, Watchdog, and Manual Reset Data Sheet (Rev.B) 05/31/2011

User Guide 1

UG-1753: Evaluating the ADP5040 and ADP5041 Micropower Management Units (PMUs) (Rev.0) 12/11/2020

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADP5041ACPZ-1-R7	20-Lead LFCSP (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 6, 2017 - 16_0234 Assembly Transfer to ASE Korea and Test Transfer to STATS ChipPAC Singapore of Select LFCSP Parts.
		PCN16_0234_Form Material_Report Detailed Change Description Detailed Change Description Qualification Results Summary Test Correlation Report
ADP5041ACPZ-1-R7	PRODUCTION
Aug 6, 2014 - 13_0230 Assembly and Test Transfer of Select 3.5x3.5, 4x3, 4x4, and 5x5mm LFCSP Products to STATS ChipPAC China
		PCN13_0230_Form Material_Report Detailed Change Description Qualification Results Summary Test Correlation Report
ADP5041ACPZ-1-R7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

5V uPMU BuckDesigner

Microsoft Excel download tool from ADIsimPower to generate a power supply design complete with a schematic, bill of materials, and performance specifications.

Open Tool

Evaluation Kits

Evaluating the ADP5041 Micropower Management Units (PMUs)

Buy Now View Details

Features and Benefits

Full featured evaluation board for the ADP5040 or ADP5041
Simple device measurements, including line and load regulation demonstrable with
- A single voltage supply
- A voltage meter
- A current meter
- Load resistors

Easy access to external components
Cascading options to supply LDO regulators from the buck
Dedicated enable option for each channel
Mode option to change bucks from PFM to PWM operation
Voltage monitoring and watchdog for ADP5041

Product Details

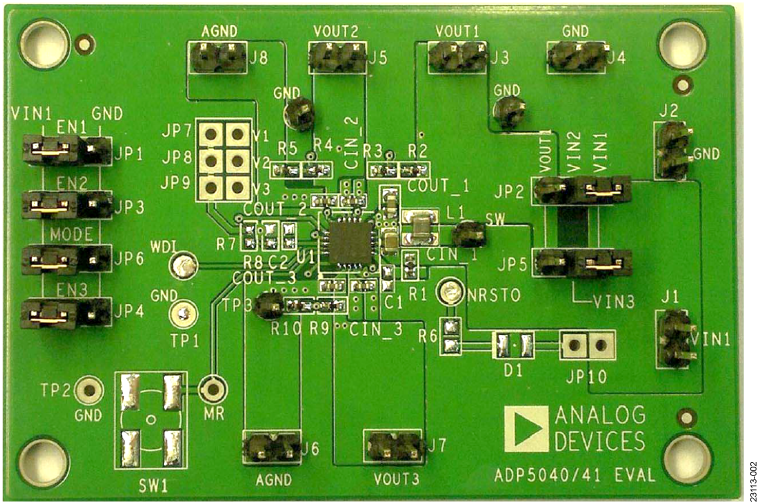

The evaluation board shown in Figure 1 in the user guide is configured for the ADP5040 (the assembly for the ADP5041 is not included), but the board can be used for evaluation of the ADP5041. The ADP5040 and ADP5041 have one step-down regulator and two low dropout (LDO) regulators (LDO1 and LDO2).

The evaluation board also allows the evaluation of supervisory functions for the ADP5041. The evaluation board is available in standard voltage options and it can be reconfigured to user specific voltage options by replacing the assembled resistor networks (R2/R3, R4/R5, and R9/R10) as shown in Figure 11 and Figure 12 in the user guide. Voltage monitoring can also be performed in the ADP5041, as shown in Figure 4 in the user guide.

Full details on the ADP5040 and ADP5041 are provided in the ADP5040 and ADP5041 data sheets available from Analog Devices, Inc., which must be consulted in conjunction with this evaluation board user guide.

Resources

UG-1753: Evaluating the ADP5040 and ADP5041 Micropower Management Units (PMUs) (Rev.0)
0.99 M
