ADHV4710

RECOMMENDED FOR NEW DESIGNS

110V High Voltage, 1A High Current, Operational Amplifier

Data Sheet (Rev. 1) Product Selection Table

Part Models: 2
1ku List Price: Starting From $32.00

Viewing:

Part Details

Wide high voltage supply range: ±12V to ±55V
Low quiescent current: 12mA
High output capability

Output voltage range: Up to ±52V for I_OUT = ±100 mA;
High output current drive: ±1A continuous;
High slew rate: ±1300V/μs into 1nF load

Extensive configurability

Unlimited capacitive loads stability with external compensation and output slew limiting
Stable for any gain and adjustable slew rate with external transconductance R_SLEW
Programmable supply current with shutdown mode

Fault protection and monitoring

Digitally programmable current, voltage, and thermal shutdown limits

Design-in friendly

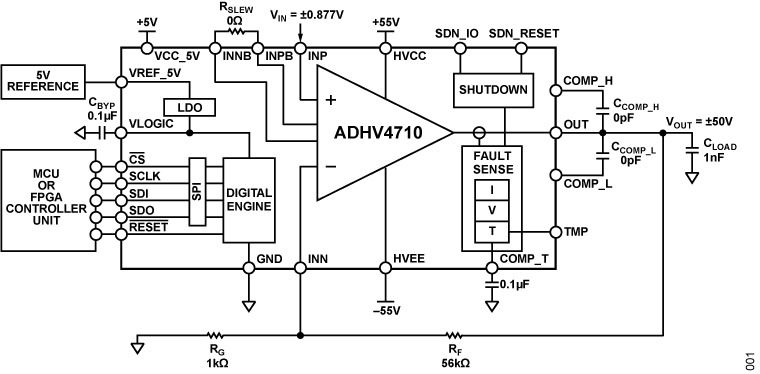

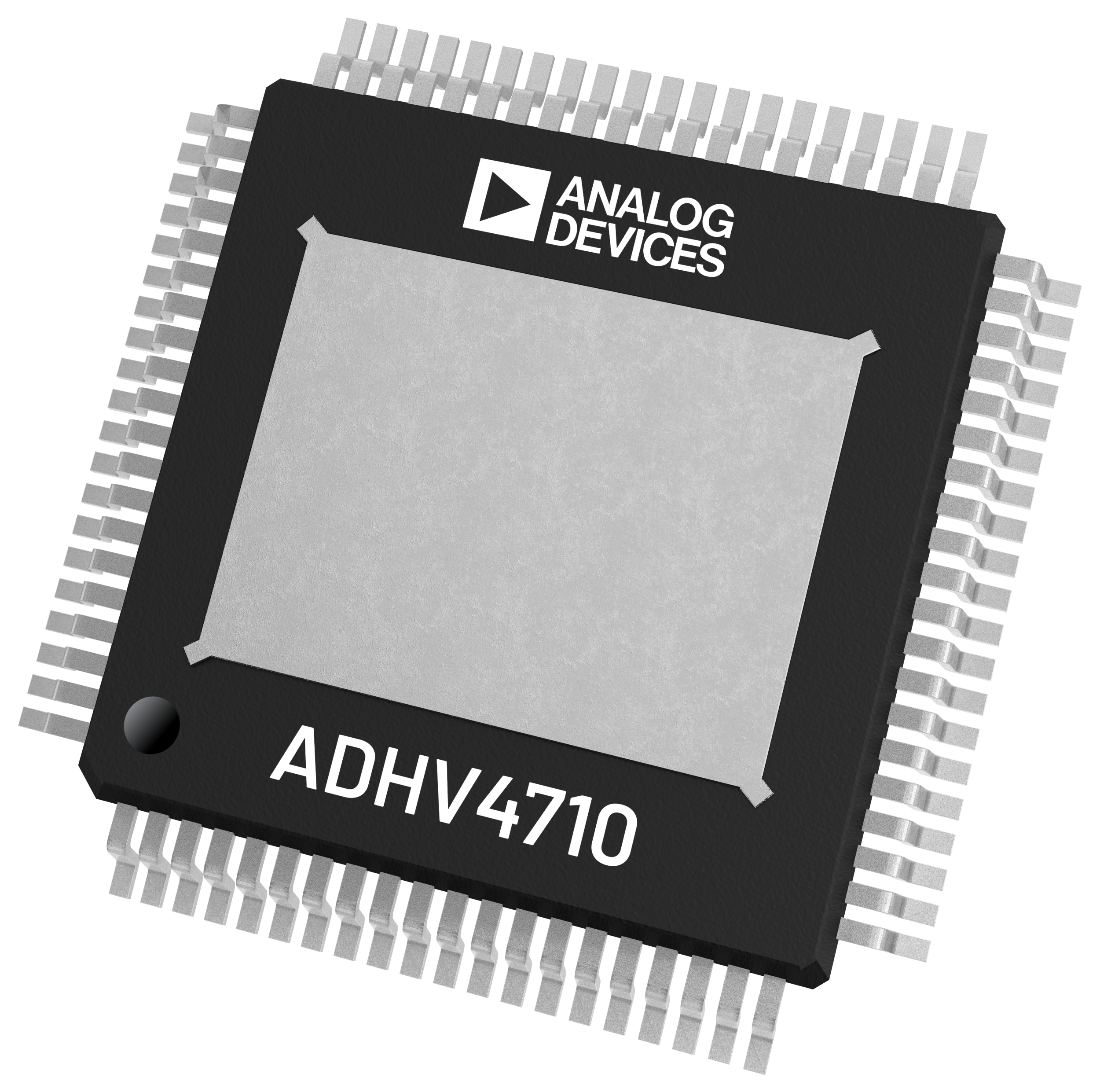

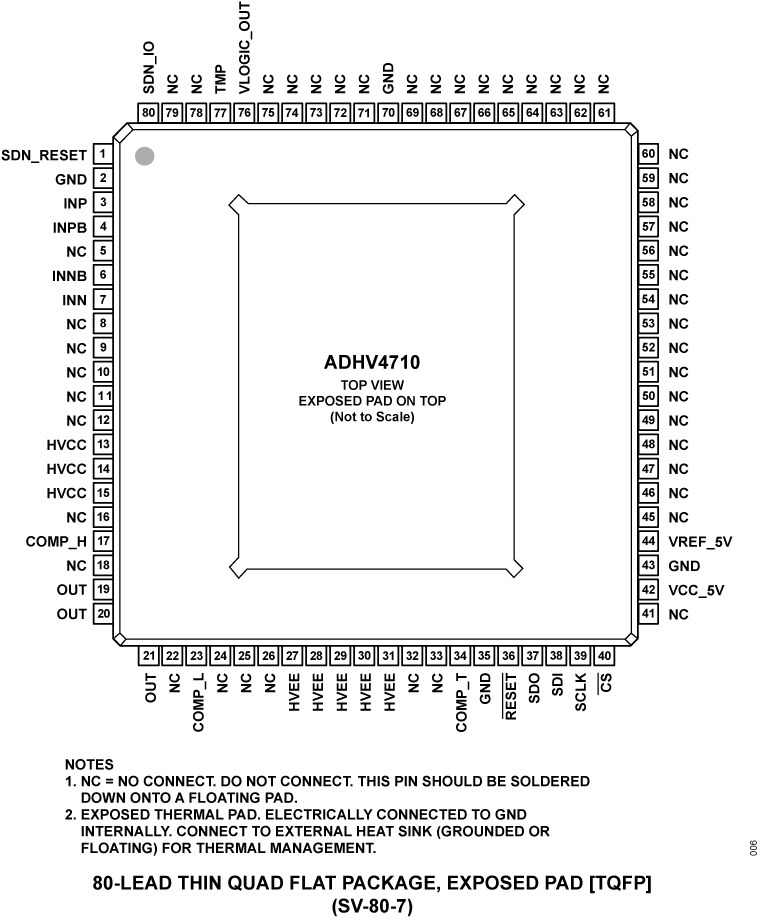

Package: 80-pin, 12mm × 12mm TQFP
- EPAD-up package for mountable heatsink

Operating temperature range: −40°C to +85°C

Part Models: 2
1ku List Price: Starting From $32.00

Documentation

Data Sheet 1

ADHV4710: 110V High Voltage, 1A High Current, Operational Amplifier Data Sheet (Rev.1) 03/26/2025

User Guide 3

LTspice User Guide - Power Op Amp Thermal Model 03/26/2025

LTspice User Guide - ADHV4710 Model 03/26/2025

EVAL-ADHV4710 User Guide: Evaluates the ADHV4710, 110V, High Voltage, 1A Current, Operational Amplifier (Rev.0) 03/26/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADHV4710BSVZ	80-Lead TQFP (12mm x 12mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADHV4710BSVZ-RL	80-Lead TQFP (12mm x 12mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice 1

Models for the following parts are available in LTspice: ADHV4710 - Operation Amplifiers (Op Amps)

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Evaluates the ADHV4710, 110V, High Voltage, 1A Current, Operational Amplifier

Buy Now View Details

Features and Benefits

Enables easy evaluation of the ADHV4710
Robust thermal management
Galvanic isolation for LVDS interface
Provision for user-defined circuit configurations
Edge-mounted connectors and test point provisions

Product Details

This user guide describes the EVAL-ADHV4710SDZ board, which evaluates the ADHV4710 offered in a 12mm × 12mm, 80-lead thin quad flat package (TQFP) with an exposed pad at the top for a mountable heat sink. The evaluation board provides a platform for quick and easy evaluation of the ADHV4710 for various user-defined configurations.

The ADHV4710 is ideally suited for demanding applications such as piezo drivers, LCD/OLED panel formation, and programmable power supplies.

The ADHV4710 data sheet provides the full specifications of the ADHV4710 and details on the device's operation. Consult it in conjunction with the user guide.

APPLICATIONS

High voltage power amplifier (PA)
High voltage SMU/VI source
High voltage arbitrary waveform generator (AWG)
Piezoelectric transducer drive
Programmable power supplies
