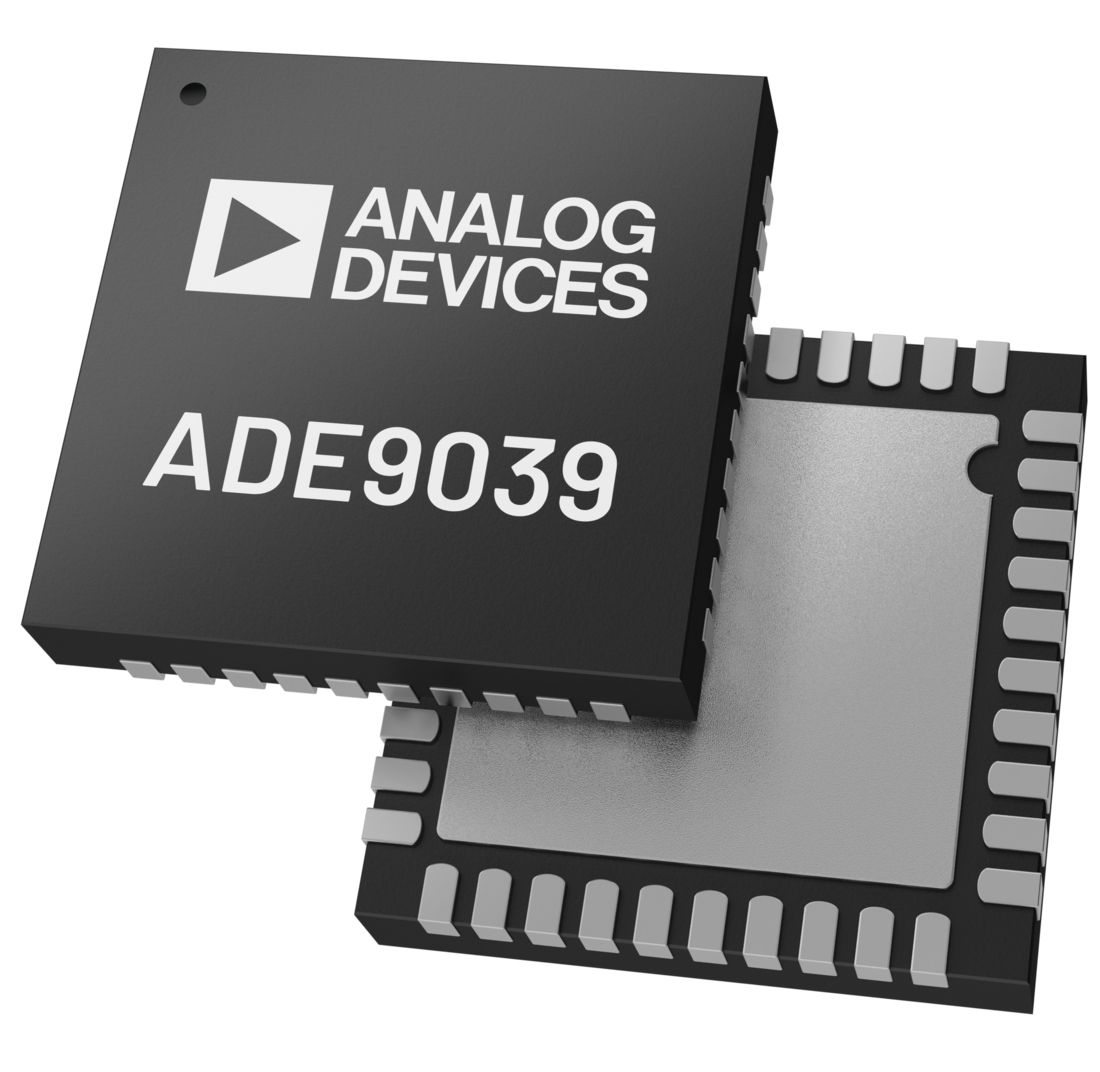

ADE9039

RECOMMENDED FOR NEW DESIGNS

Energy Metering Chipset for Polyphase Meters with di/dt Current Sensors

High Performance Polyphase Energy Measurement IC For Use With Rogowski Sensors

Data Sheet (Rev. SpA) Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Part Details

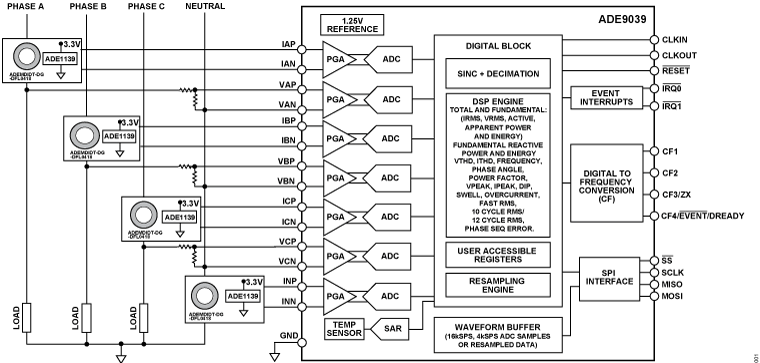

Complete polyphase direct connect meter or split-phase meter using a PCB-based di/dt current sensor, and ADE9039 and ADE1139 chipset
Strong immunity to AC magnetic tampering
Immune to DC magnetic fields
Ideal for AC applications from 32 A to 1 kA
Supports Class 0.2 accuracy
System uses a small amount of low cost PCB area
Channel crosstalk is typically less than 0.1%
Resilience to fast high-current waveforms
Less than 3 mA AC offset is achievable due to sensor immunity to electrostatic coupling
Computes active energy, reactive energy, and apparent energy on each phase and on the overall system
Less than 0.1 % error in active energy over a dynamic range of 2000 to 1 at TA = 25 °C
Less than 0.1 % error in voltage RMS over a dynamic range of 1000 to 1 at TA = 25 °C
Less than 0.1 % error in current RMS over a dynamic range of 1000 to 1 at TA = 25 °C
Single positive 3.3 V supply
Power quality measurements
VRMS½, IRMS½ refreshed each half cycle
Dip and swell monitors
Line frequency—one per phase
Zero crossing with a timeout availability
Phase angle measurements
Total harmonic distortion (THD)

Flexible waveform buffer
Able to resample continuously waveforms to ensure 64 points per line cycle for ease of external harmonic analysis
Events, such as dip and swell, can trigger waveform storage
Advanced metrology feature set
Total and fundamental active and apparent power
Fundamental reactive power
Total and fundamental IRMS, VRMS
Power factor
Tested to support active energy standards: IEC 62053-21, IEC 62053-22, EN 50470-3, OIML R46, and ANSI C12.20 based on the ADE9039 and ADE1139 chipset
Tested to support reactive energy standards: IEC 62053-23 and IEC 62053-4
10 MHz serial port interface (SPI)

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 1

ADE9039: Energy Metering Chipset for Polyphase Meters with di/dt Current Sensors Data Sheet (Rev.SpA) 04/08/2024

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

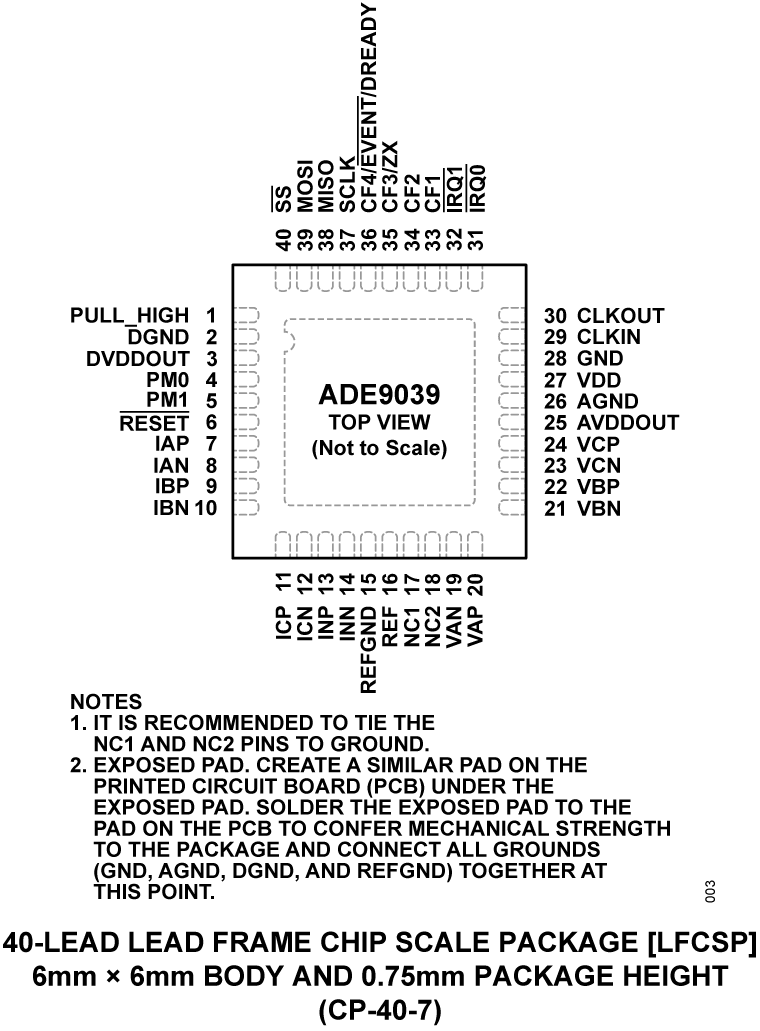

ADE9039ACPZ	40-Lead LFCSP (6mm x 6mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADE9039ACPZ-RL	40-Lead LFCSP (6mm x 6mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 25, 2025 - 25_0054 Gold wire to Copper wire Conversion (Notification)
		PCN25_0054_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Qualification Results Summary
ADE9039ACPZ
ADE9039ACPZ-RL
Feb 1, 2024 - 24_0009 Qualification of alternative Wafer Fab for TSMC 0.18um Mixed Signal CMOS Process
		PCN24_0009_Form Material_Report Qualification Results Summary
ADE9039ACPZ
ADE9039ACPZ-RL

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
ADE9078	PRODUCTION	High Performance Polyphase Energy Measurement IC
ADE9000	PRODUCTION	High Performance, Multiphase Energy, and Power Quality Measurement IC
