TMC8462

RECOMMENDED FOR NEW DESIGNS

EtherCAT^® Slave Controller with integrated Phys

Data Sheet (Rev. 1.1) Product Selection Table

Part Models: 1
1ku List Price: price unavailable

Viewing:

Part Details

Standard compliant EtherCAT^® Slave Controller
2x Integrated 100-MBit Ethernet PHY
SPI Process Data Interface (PDI)
Auxiliary IO Block with 24 configurable
Multi-Function I/Os

4.75V to 35V Supply Voltage range
2x Integrated 3.3V and 5V-24V buck regulators
8 High Voltage I/Os (up to 35V, 100mA),
-40°C to +85°C Temperature Range
9x9mm 121pin BGA package

Part Models: 1
1ku List Price: price unavailable

Documentation

Data Sheet 1

TMC8462A Data Sheet (Rev.1.1) 09/06/2022

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
TMC8462A-BA	121-CSP_BGA-9X9X1.4	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Evaluation Kits

Evaluation Board for TMC8462A

Buy Now View Details

Features and Benefits

TMC8462A-BA Advanced EtherCAT Slave Controller
Supply and I/O voltage 3.3V (with blue LED indicator)
2x RJ45 TPC connector
EtherCAT link activity, run, and error LEDs
Conﬁguration and control via Process Data Interface (PDI) SPI, ECAT, and SII-EEPROM
Device emulation mode or controller mode via solder option (R5/R6)
Board width 2.0", board height 1.5"
2x14 pin 0.1" header rows for pins/connectors, distance of rows 1.9"

Product Details

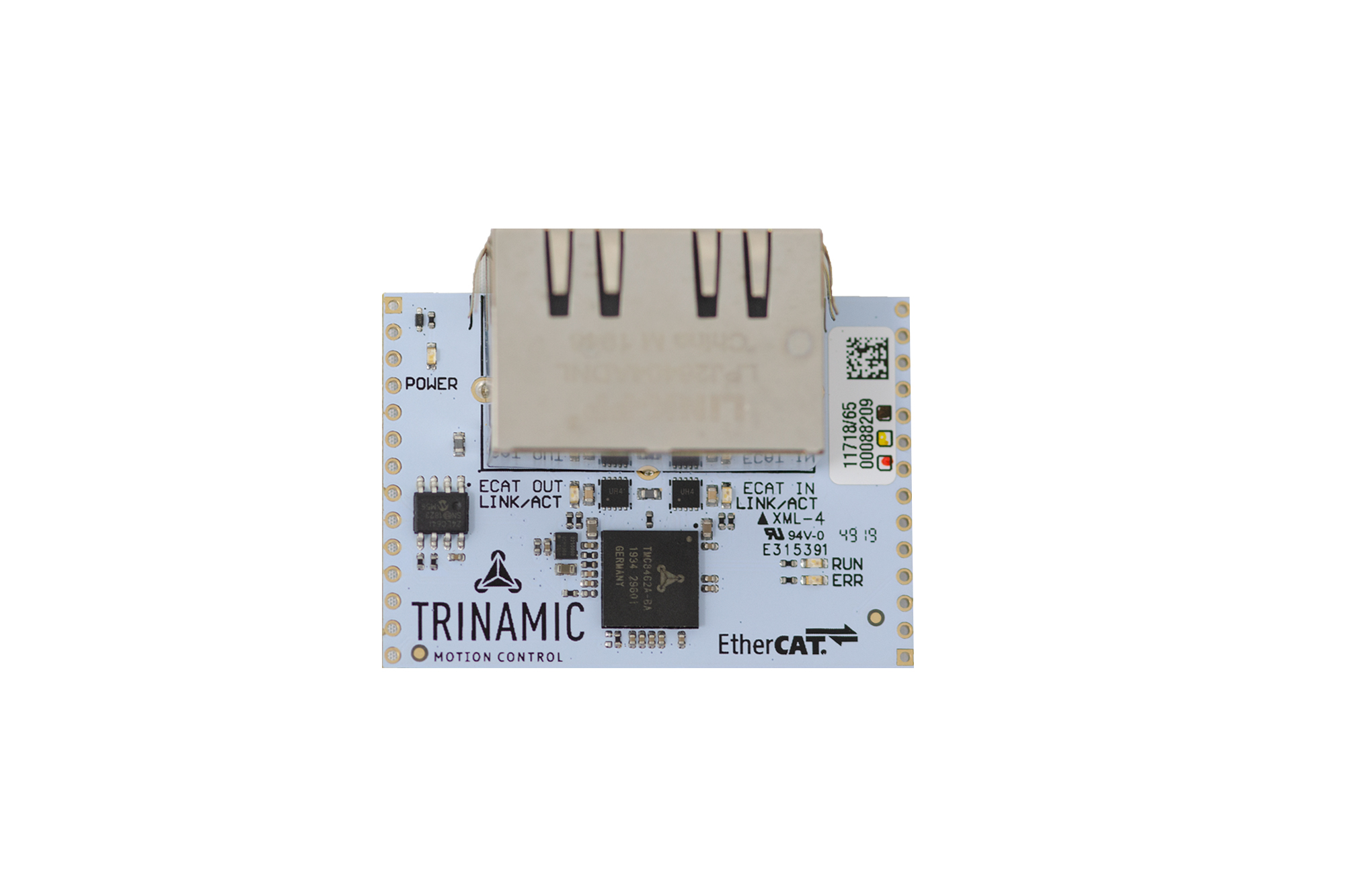

The TMC8462A breakout board is a development board with the dedicated TMC8462A-BA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.

Resources

Tmc8462a Bob Eth - Design Files (Rev.10)
11.15M

Evaluation Board for TMC8462A

Buy Now View Details

Features and Benefits

TMC8462A-BA EtherCAT Slave Controller
Board supply voltage: 5V to 35V
Dual RJ45 TPC connector
SPI PDI interface
SPI interface for ADI TRINAMIC’s MultiFunction and Control IO Block (MFC IO)
Access to all chip functions via pin headers and connectors
Interface to ADI TRINAMIC’s evaluation board concept
CAD design files available for download

Product Details

The TMC8462A-EVAL allows you to explore all functions of the TMC8462A-BA.

The TMC8462A-EVAL board allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For diagnosis, all signals between MCU and TMC8462A are accessible with probes on the Eselsbruecke bridge board.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.

More about the TMCL-IDE
