TMC6300

RECOMMENDED FOR NEW DESIGNS

Highly Efficient Low Voltage, Zero Standby Current Driver for 3-Phase BLDC/PMSM Motors up to 2A peak, Triple Half-Bridge with separate HS and LS control signals

Data Sheet (Rev. 1.08) Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Part Details

Voltage Range 2V (1.8V) to 11V DC
Battery Operation 1-2 Li-Ion cells, or min. 2 AA / NiMh cells
3-Phase motors up to 2A (peak)
Direct Bridge control for BLDC or PMSM sine-commutation

Standby <50nA typ. current draw
Low RDSon LS 170mΩ & HS 170mΩ (typ.)
Full Protection & Diagnostics output
Tiny of QFN 3*3 with 20 pins

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 1

TMC6300 Data Sheet (Rev.1.08) 04/20/2022

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
TMC6300-LA	20-LFCSP-3X3X0.9	Material Declaration Reliablity Data	Ultra Librarian SamacSys
TMC6300-LA-T	20-LFCSP-3X3X0.9	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Evaluation Kits

Evaluation Board for TMC6300

Buy Now View Details

Features and Benefits

Break Before Make
1.4ARMS, 2 to 11V

Product Details

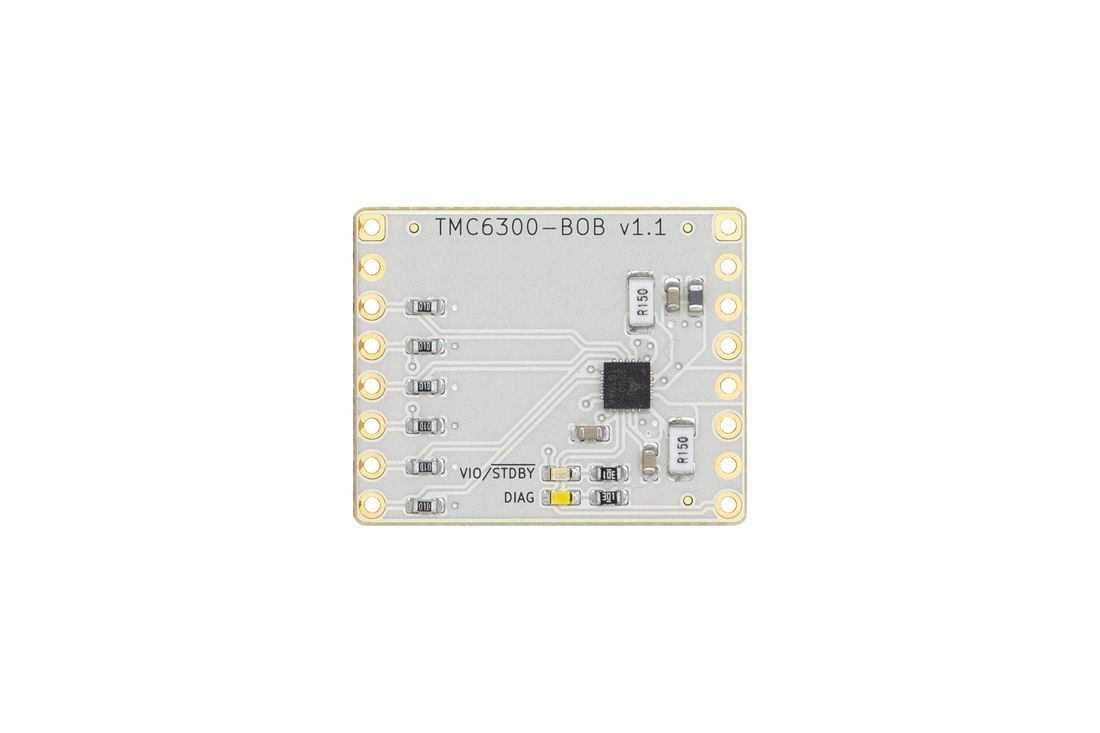

The TMC6300 breakout board is a development board with the dedicated TMC6300-LA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.

Resources

Ecad Tmc6300 Bob - Design Files (Rev.11)
4.52M

Evaluation Board for TMC6300

Buy Now View Details

Features and Benefits

TMC6300 low voltage three-phase BLDC/PMSM motor driver
Supply voltage 2-11V DC, 2.0A coil current (peak)
Direct Bridge control for BLDC or PMSM sine-commutation
Standby <50nA typ. current draw
Low RDSon LS 170mΩ & HS 170mΩ (typ)
Full protection & diagnostic output
Tiny QFN 3*3mm 20 pin package
1.4A RMS, 2 to 11V

Product Details

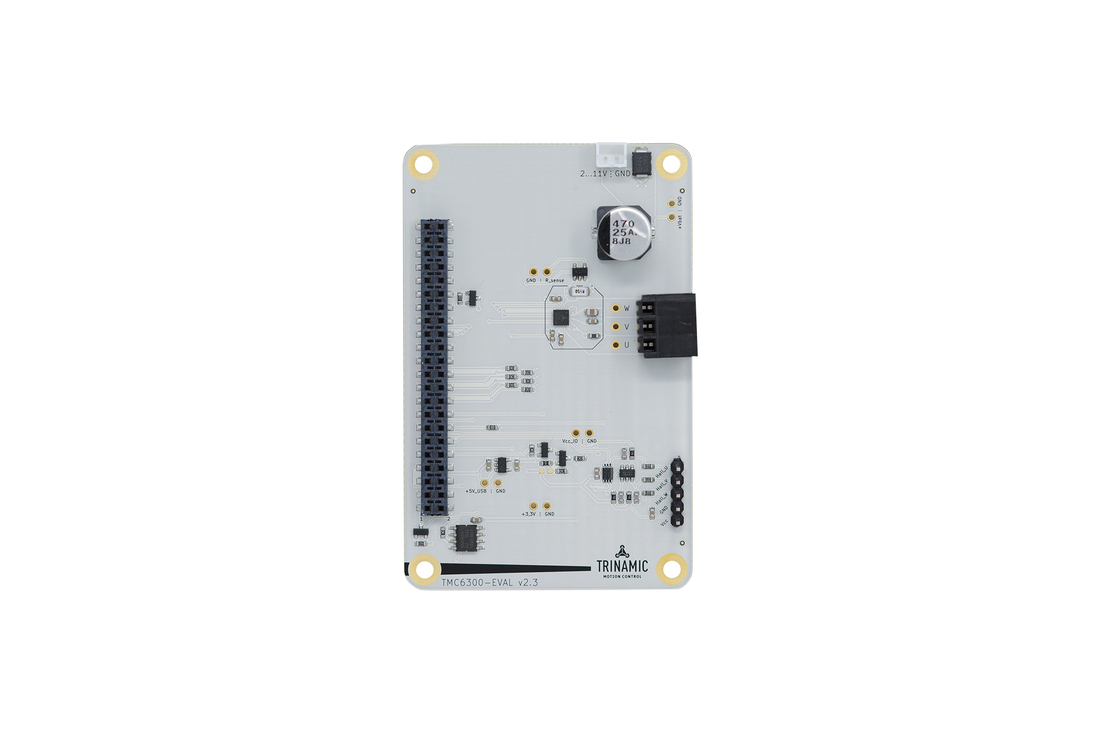

The TM6300-EVAL allows you to explore all functions of the TMC6300.

The TMC6300-EVAL-KIT is a set of one MCU board Landungsbruecke, one Eselsbruecke bridge board and one TMC6300-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For diagnosis, all signals between MCU and TMC6300 are accessible with probes on the bridge board. TMC6300-EVAL can be used with or without the Landungsbruecke MCU board.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.

More about the TMCL-IDE
