MAX20356

RECOMMENDED FOR NEW DESIGNS

Wearable Power-Management Solution

Data Sheet (Rev. 3) Product Selection Table

Part Models: 2
1ku List Price: Starting From $5.52

Viewing:

Part Details

Extend Time Between Charges
- 3 x Nano-I_Q, 400mA Buck Regulators (I_Q = 400nA typ)
- 0.500V to 1.130V in 10mV Steps
- 0.500V to 2.075V in 25mV Steps
- 0.500V to 3.650V in 50mV Steps
2 x Micro-I_Q LDO/Load Switches (I_Q = 1μA typ)
- 1.71V to 5.5V Input-Voltage Range
- 100mA Output-Current Capability
- 0.900V to 4.0V in 100mV Steps
Nano-I_Q Fast Transient LDO (I_Q = 820nA typ)
- Optimized for use with Sensor AFEs
- 1.71V to 5.5V Input-Voltage Range
- 100mA Output-Current Capability
- 0.900V to 4.075V in 25mV Steps
Nano-I_Q Real-Time Clock LDO (I_Q = 200nA typ)
- Always-On Configurable for RTCs in μC Timers
- 1.2V [+25mV, +50mV] and 1.8V [+25mV, +50mV]
Micro-I_Q Buck-Boost Regulator (I_Q = 2μA typ)
- 1.5W Output
- 2.6V to 5.5V in 50mV Steps
- Dynamic Voltage Scaling

3 x Nano-I_Q, Low On-Resistance Load Switches (I_Q = 260nA typ)
- Low 0.25Ω (typ) On-Resistance
- Short-Circuit Protection
- Soft-Start Feature
Easy-to-Implement Li+ Battery Charging
- Wide Fast Charge Current Range: 4mA to 500mA
- +28V/-5.5V Tolerant Input
- Programmable JEITA Current/Voltage Profiles
- Programmable Automatic Step-Charging
Seamless Interaction with MAX20361 Solar Energy Harvester
Multiple-Purpose Control Pins are Provided for Flexible Control
Minimize Solution Footprint Through High Integration
- Programmable Push-Button Controller
- Programmable Supply Sequencing
- Battery Seal Shipping Mode
- On-Chip Voltage/Charge Current Monitor Mux

Part Models: 2
1ku List Price: Starting From $5.52

Documentation

Data Sheet 1

MAX20356: Wearable Power-Management Solution Data Sheet (Rev.3) 01/24/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX20356AEWY+	63-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX20356AEWY+T	63-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

Software Development 1

MAX20356 EV Kit Software, 1.0.6

Evaluation Kits

Evaluation Kit for MAX20356

Buy Now View Details

Features and Benefits

USB-Power Option
Flexible Configuration
On-Board Battery Simulation
Sense Test Point for Output-Voltage Measurement
Windows^® 8/Windows 10-Compatible Graphical User Interface (GUI) Software
Fully Assembled and Tested

Product Details

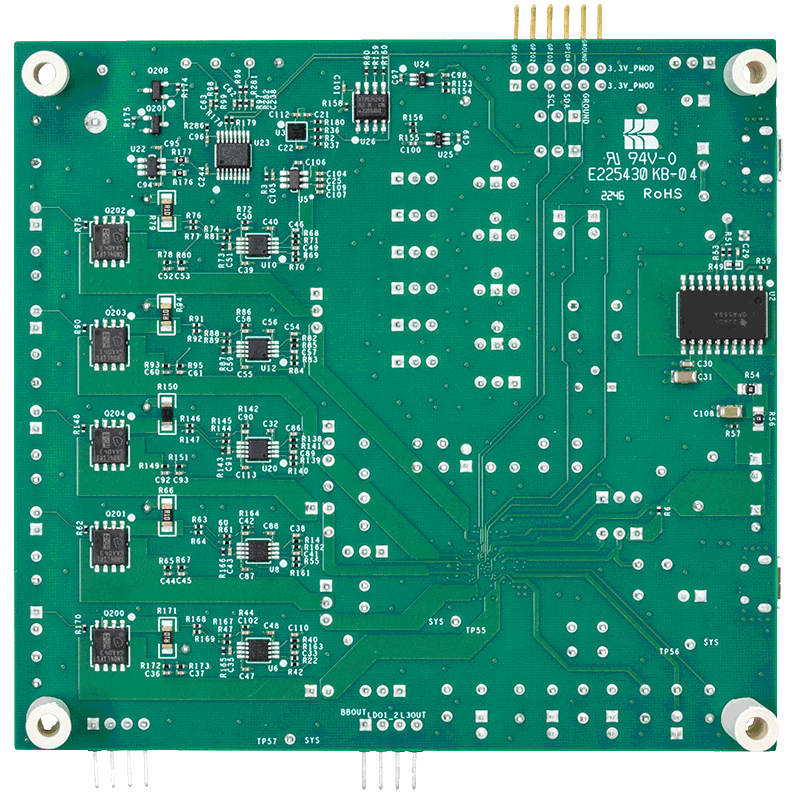

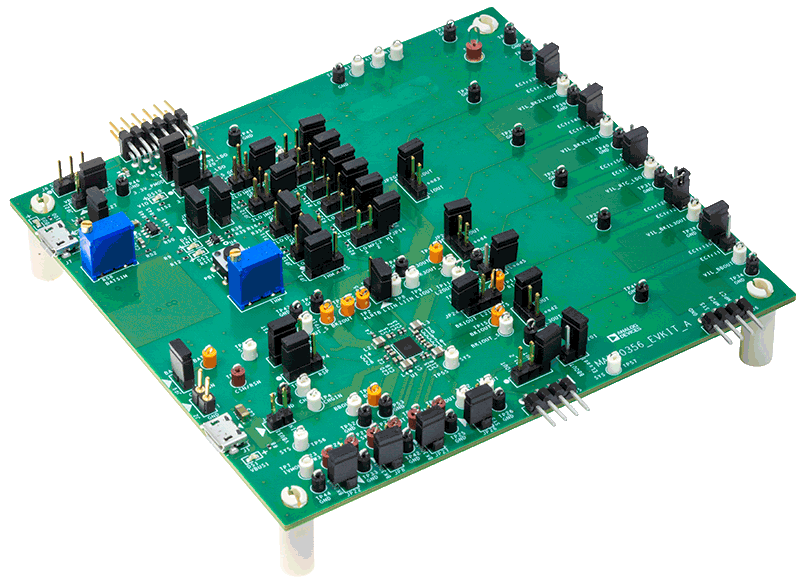

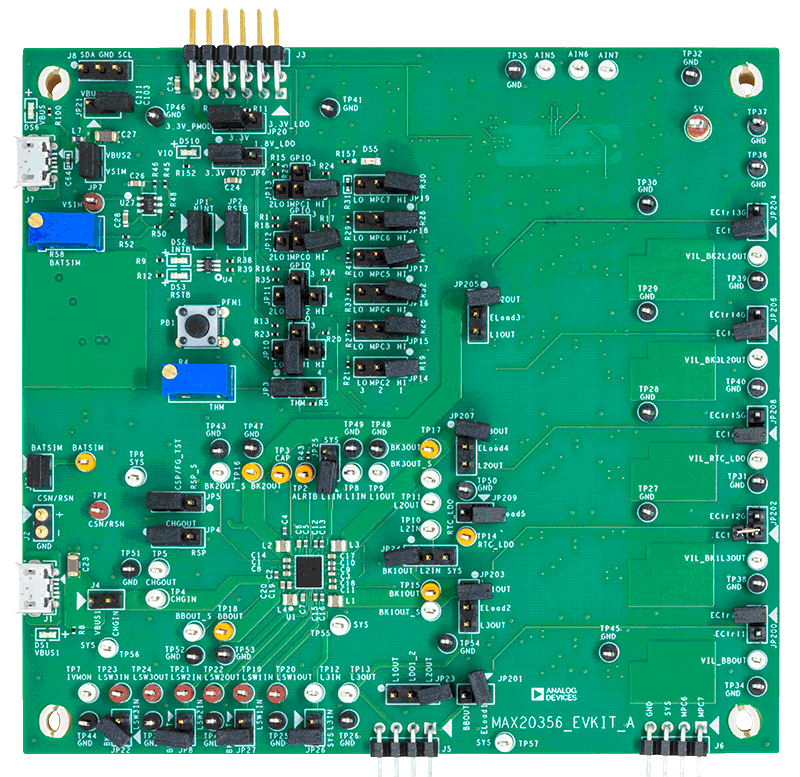

The MAX20356 evaluation kit (EV kit) is a fully assembled and tested circuit for evaluating the MAX20356 power-management solution designed for ultra-low-power wearable applications.

A flexible set of power-optimized voltage regulators, including 3 x buck converters, a buck-boost converter, 4 x linear regulators, including an RTC LDO, and 3 x load switches, provide a high level of integration and the ability to create a fully optimized power architecture. Refer to the MAX20356 IC data sheet for detailed information regarding the operation and features of the devices.

The device is configurable through an I²C interface that allows for programming various functions and reading device status. The EV kit GUI application sends commands to the MAXPICO2PMB# adapter board to configure the device.

The EV kit comes standard with the MAX20356 EV kit version IC installed

Resources

MAX20356EVKIT ODB Files
1.61 M
