LT6370
RECOMMENDED FOR NEW DESIGNS25µV, 0.3µV/°C, Low Noise Instrumentation Amplifier
- Part Models
- 16
- 1ku List Price
- Starting From $3.02
Part Details
- Single Gain Set Resistor: G = 1 to >1000
- Excellent DC Precision
- Input Offset Voltage: 25μV Max
- Input Offset Voltage Drift: 0.3μV/°C Max
- Low Gain Error: 0.01% Max (G = 1)
- Low Gain Drift: 30ppm/°C Max (G > 1)
- High DC CMRR: 94dB Min (G = 1)
- Input Bias Current: 400pA Max
- 3.1MHz –3dB Bandwidth (G = 1)
- Low Noise:
- 0.1Hz to 10Hz Noise: 0.2μVP-P
- 1kHz Voltage Noise: 7nV/√Hz
- Integrated Input RFI Filter
- Wide Supply Range 4.75V to 35V
- Specified Temperature Ranges:
–40°C to 85°C, –40°C to 125°C - MS8, S8E and 10-pin 3mm × 3mm DFN Packages
The LT6370 is a gain programmable, high precision instrumentation amplifier that delivers industry leading DC precision. This high precision enables smaller signals to be sensed and eases calibration requirements, particularly over temperature.

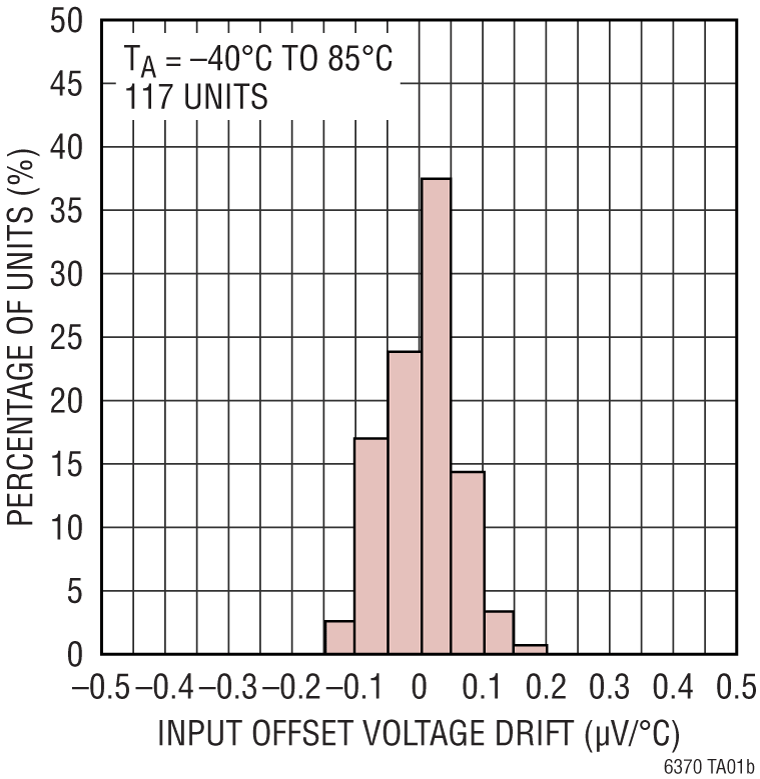

The LT6370 uses a proprietary high performance bipolar process which enables industry leading accuracy coupled with exceptional long-term stability. The LT6370 is laser trimmed for very low input offset voltage (25µV) and high CMRR (94dB, G = 1). Proprietary on-chip test capability allows the input offset voltage drift (0.3µV/°C) and gain drift (30ppm/°C) to be guaranteed with automated testing on the S8E package.
In addition to excellent DC specifications, the LT6370’s wide bandwidth (3.1MHz, G = 1) and fast settling time allow it to operate well in multiplexed applications. EMI filtering is integrated on the LT6370’s inputs to maintain accuracy in the presence of harsh RF interference.

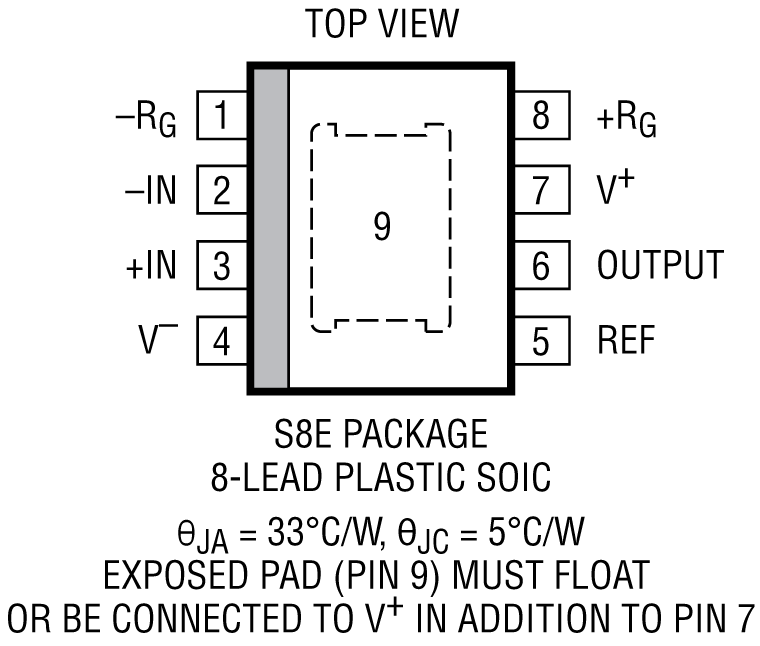

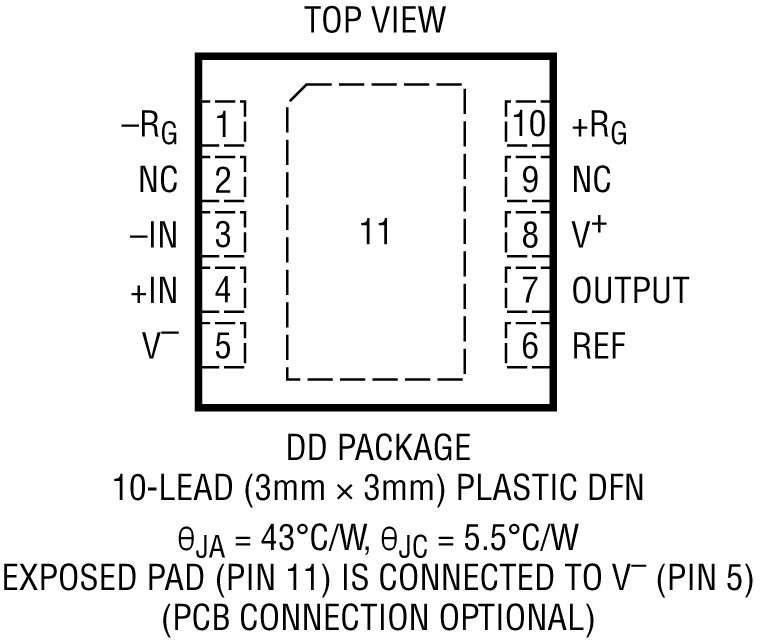

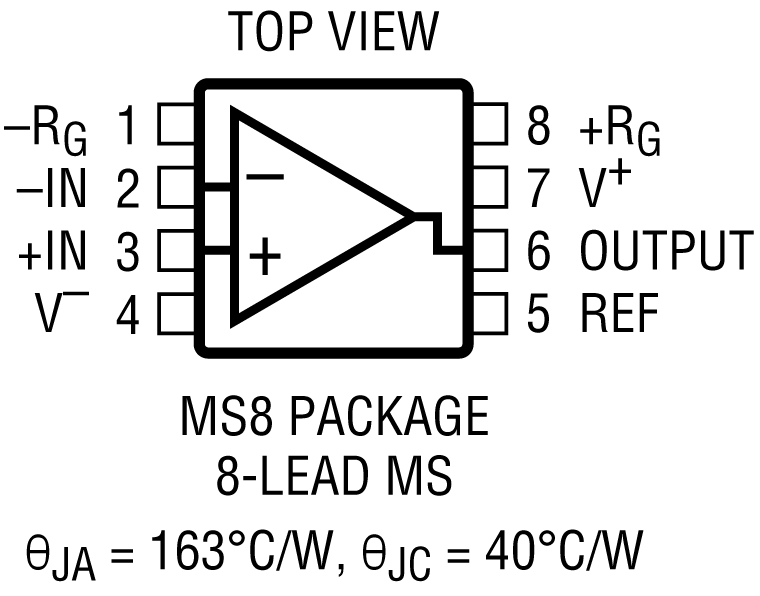

The LT6370 is available in a compact 8-pin MSOP or S8E which use the conventional instrumentation amplifier pin-out as well as a 10-pin 3mm × 3mm DFN. The S8E package is also offered as an A grade which has superior DC specifications. The LT6370 is fully specified over the –40°C to 85°C and –40°C to 125°C temperature ranges.
Applications

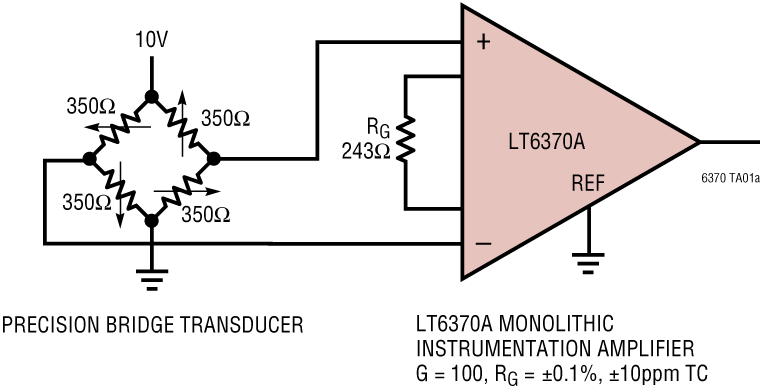

- Bridge Amplifier
- Data Acquisition
- Multiplexed Signals
- Thermocouple Amplifier
- Strain Gauge Amplifier
- Medical Instrumentation
- Transducer Interfaces
- Differential to Single-Ended Conversion
Documentation
Video 1
Analog Dialogue 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LT6370AHS8E#PBF | 8-Lead SOIC (Narrow 0.15 Inch w/ EP) | ||
| LT6370AHS8E#TRPBF | 8-Lead SOIC (Narrow 0.15 Inch w/ EP) | ||
| LT6370AIS8E#PBF | 8-Lead SOIC (Narrow 0.15 Inch w/ EP) | ||
| LT6370AIS8E#TRPBF | 8-Lead SOIC (Narrow 0.15 Inch w/ EP) | ||
| LT6370HDD#PBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LT6370HDD#TRPBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LT6370HMS8#PBF | 8-Lead MSOP | ||
| LT6370HMS8#TRPBF | 8-Lead MSOP | ||
| LT6370HS8E#PBF | 8-Lead SOIC (Narrow 0.15 Inch w/ EP) | ||
| LT6370HS8E#TRPBF | 8-Lead SOIC (Narrow 0.15 Inch w/ EP) | ||
| LT6370IDD#PBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LT6370IDD#TRPBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LT6370IMS8#PBF | 8-Lead MSOP | ||
| LT6370IMS8#TRPBF | 8-Lead MSOP | ||
| LT6370IS8E#PBF | 8-Lead SOIC (Narrow 0.15 Inch w/ EP) | ||
| LT6370IS8E#TRPBF | 8-Lead SOIC (Narrow 0.15 Inch w/ EP) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Feb 14, 2025 - 25_0017 Bond Wire Change from Gold to Copper |
||
| LT6370HDD#PBF | PRODUCTION | |
| LT6370HDD#TRPBF | PRODUCTION | |
| LT6370HMS8#PBF | PRODUCTION | |
| LT6370HMS8#TRPBF | PRODUCTION | |
| LT6370IDD#PBF | PRODUCTION | |
| LT6370IDD#TRPBF | PRODUCTION | |
| LT6370IMS8#PBF | PRODUCTION | |
| LT6370IMS8#TRPBF | PRODUCTION | |
|
Feb 3, 2020 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC |
||
| LT6370HMS8#PBF | PRODUCTION | |
| LT6370HMS8#TRPBF | PRODUCTION | |
| LT6370IMS8#PBF | PRODUCTION | |
| LT6370IMS8#TRPBF | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Hardware Ecosystem
-
10kHz Bridge Measurement -
1kHz Filtered Strain Gauge Measurement
Tools & Simulations
LTspice
Models for the following parts are available in LTspice:
- LT6370
In-Amp Diamond Plot Tool
The Diamond Plot Tool is a web application that generates a configuration-specific Output Voltage Range vs. Input Common-Mode Voltage graph, also known as the Diamond Plot, for Analog Devices Instrumentation Amplifiers. Based on user inputs such as supply voltage, gain, and input signal range, the tool detects saturation and recommends in-amps for which the input signal is in-range and the configuration is valid. Avoid saturation, find the best in-amp for your design, and save time.
Open ToolSignal Chain Designer - BETA
Signal Chain Designer is a web-based tool designed to create and simulate complex precision signal chains. See your circuit’s performance before you commit to your PCB: transfer function, noise, power consumption, input range, and DC error. Quickly experiment with different parts and architectures. Signal chains can be exported to LTspice for further analysis.
Open ToolLTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Evaluation Kits
AD62x, AD822x, AD842x Series InAmp Evaluation Board
