MAXREFDES178: Artificial Intelligence Applications

设计、搭建、测试

图示的电路板已装配完成且经过测试。

概览

设计资源

设计与集成文件

原理图
物料清单
PCB布局
Fab Package

下载设计文件 12.92 M

评估硬件

产品型号带"Z"表示符合RoHS标准。评估此电路需要下列选中的电路板

MAXREFDES178# ($169.00) EV Kit

查询库存和在线购买

器件驱动器

软件（如C代码和/或FPGA代码等）用于与元件的数字接口通信。

AI Tools

MAX78000 GitHub no-OS Driver Source Code

描述

MAX78000是一款集成卷积神经网络(CNN)加速器装置的Arm Cortex M4F微控制器。MAX78000采用特别的节能架构，支持面部识别和关键词识别等边缘应用的电池供电AI。MAXREFDES178是基于MAX78000和MAX32666微控制器的摄像头模块参考设计，可帮助边缘AI器件设计人员加速推进概念验证，更快投向市场。

MAXREFDES178硬件包括基于MAX32666的连接板以及基于两个MAX78000芯片的AI板。通过较短的33位柔性电缆将这些电路板连接在一起。

优势和特点

两个集成CNN加速器的MAX78000 ARM Cortex M4F微控制器
BLE5无线连接
锂离子电池供电
彩色图像传感器
数字麦克风
多个具有立体声音频输入和输出的音频编解码器
彩色TFT电容式触摸LCD
Micro SD连接器
板载QSPI FLASH和QSPI SRAM

重要通知及免责声明

请阅读关于ADI设计信息和资源的参考设计免责声明。

产品类别

处理器和微控制器

所用产品

详情

Box Content

X +

MAXREFDES178 Box Contents

MAXREFDES178 Cube Camera Contains the MAXREFDES178_CONNECTIVITY_BOARD, MAXREFDES178_AI_BOARD, Enclosure, LCD, Battery and Buttons.
MAXDAP-TYPE-C USB Type-C Based DAPLink Debugger, Programmer.
MAX32625PICO DAPLink Debugger with 10-Pin SWD Ribbon Cable.
USB Type-A to Micro USB Type-B USB Cable.

Figures 1 and 2 show the main components, inputs, and outputs of the MAXREFDES178.

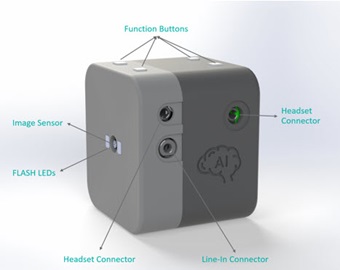

Figure 1. MAXREFDES178 front view.

The front of the device has a microphone, image sensor (camera), and flash LED windows. There are two flash LEDs on both sides of the image sensor.

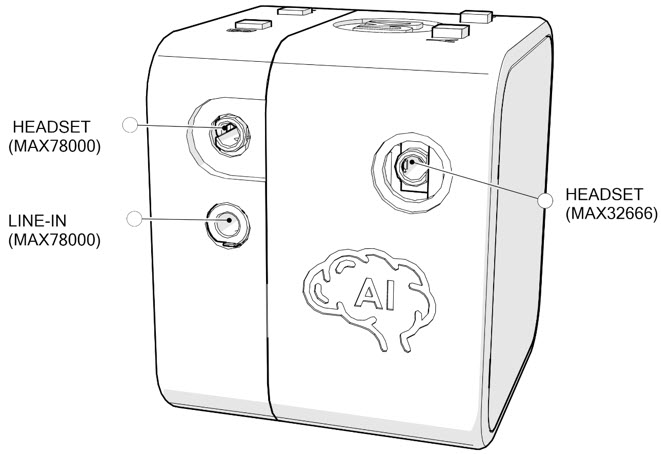

Figure 2. MAXREFDES178 right side view.

There are three 2.5 mm audio connectors on the right side of the device.

Table 1. Audio Connector Functions of the MAXREFDES178

Connector	Function
Headset (MAX78000)	This is a stereo audio output connector with a mono microphone input. It is connected to the MAX9867 (U5) Low-Power Stereo Audio Codec IC on the MAXREFDES178_AI_BOARD. The MAX9867 (U5) is controlled by the MAX78000 (U6), which is dedicated for audio processing applications. Regular headsets with 2.5 mm jack can be directly connected to this connector. The wiring of this connector follows the Open Mobile Terminal Platform (OMTP) standard. For 3.5mm headsets, a 2.5mm to 3.5mm adapter is needed.
Line-in (MAX78000)	Line input for external audio. This connector is connected to the MAX9867 (U5) Low-Power Stereo Audio Codec IC on the MAXREFDES178_AI_BOARD. The MAX9867 (U5) is controlled by the MAX78000 (U6), which is dedicated for audio processing applications. For 3.5mm audio cables, a 2.5mm to 3.5mm adapter is needed
Headset (MAX32666)	This is a stereo audio output connector with a mono microphone input. It is connected to the MAX9867 (U13) Low-Power Stereo Audio Codec IC on the MAXREFDES178_CONNECTIVITY_BOARD. The MAX9867 (U13) is controlled by the MAX32666 (U5) microcontroller. Regular headsets with 2.5 mm jack can be directly connected to this connector. The wiring of this connector follows the OMTP standard. For 3.5mm headsets, a 2.5mm to 3.5mm adapter is needed.

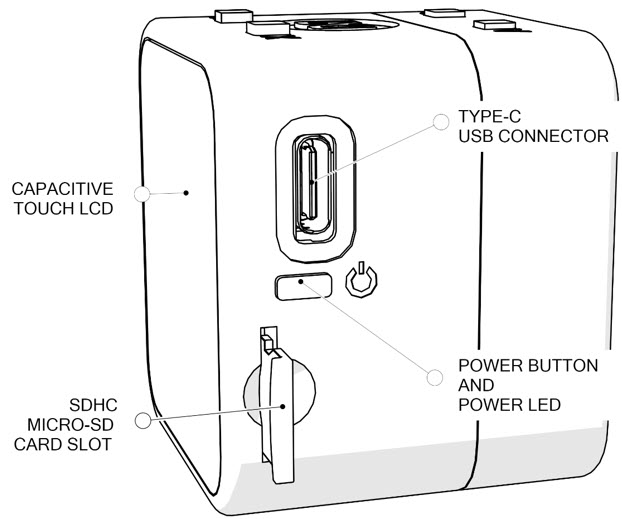

Figure 3. MAXREFDES178 left side view.

There is a USB Type-C connector for powering, charging, programming, and debugging on the left side of the device.

There is also a Micro-SD card slot to store data, neural network models, etc.

The main power button of the device is connected to the MAX20303 (U2) PMIC IC. This button can be used as both power on/off function and user button. Under the button cap, there is also an RGB LED connected to the MAX20303 PMIC LED outputs. This RGB LED can be controlled by PMIC or user firmware through I²C commands sent to the MAX20303 PMIC.

Table 2. Power Button and RGB LED Functions

Signal	Designator	Function/Connection
Power Button	SW1 (Connectivity Board)	Power button and user-programmable button. Connected to the MAX20303 PFN1 input. The MAX20303 PFN2 is the buffered version of this button line and it is connected to MAX32666 P1.9. Internal pullup of this GPIO pin on MAX32666 must be enabled to read the status of this button.
RGB LED	D1 (Connectivity Board)	MAX20303 LED0 Output: Blue MAX20303 LED1 Output: Red MAX20303 LED2 Output: Green

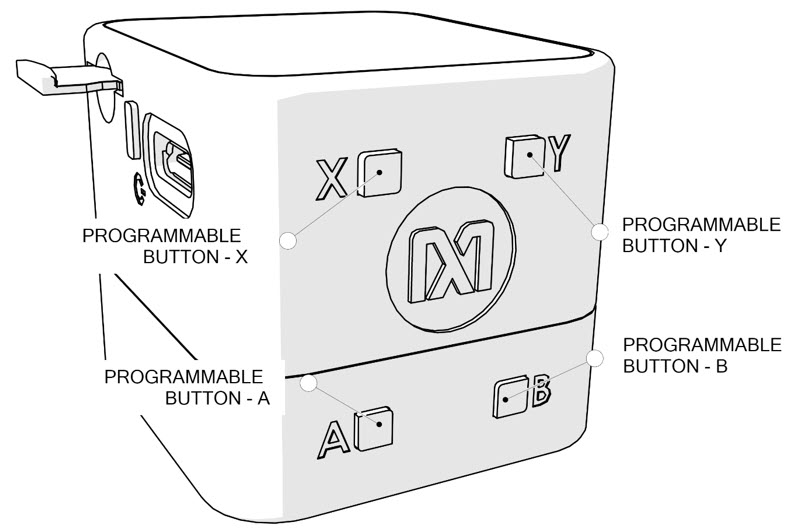

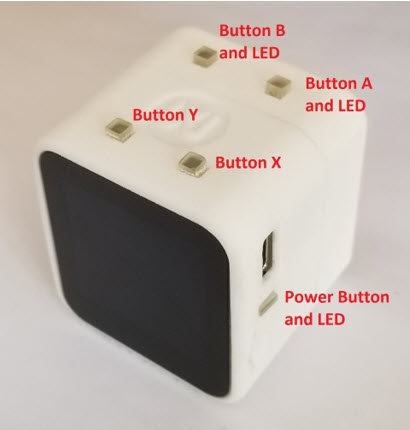

Figure 4. MAXREFDES178 top view.

There are four user-programmable buttons on the top side of the MAXREFDE178. All buttons are connected through MAX6817 ESD Protected Switch Debouncer ICs.

Table 3. Function Buttons of the MAXREFDES178

Button	Designator	Function/Connection
X	SW2 (Connectivity Board)	User-programmable button. Connected to MAX32666 P1.6.
Y	SW3 (Connectivity Board)	User-programmable button. Connected to the MAX7325 I2C IO Expander IC P7. The MAX32666 microcontroller can read the status of this button through the I2C bus.
A	SW2 (AI Board)	User-programmable button. Connected to the MAX78000 Image (U4) P0.2
B	SW3 (AI Board)	User-programmable button. Connected to the MAX78000 Audio (U6) P0.2.

There are user-programmable RGB LEDs under button A and button B caps.

LED	Matching Button	Function/Connection
D1	A (SW2)	RED: MAX78000 Image (U4) P2.0 GREEN: MAX78000 Image (U4) P2.1 BLUE: MAX78000 Image (U4) P2.2
D2	B (SW3)	RED: MAX78000 Audio (U6) P2.0 GREEN: MAX78000 Audio (U6) P2.1 BLUE: MAX78000 Audio (U6) P2.2

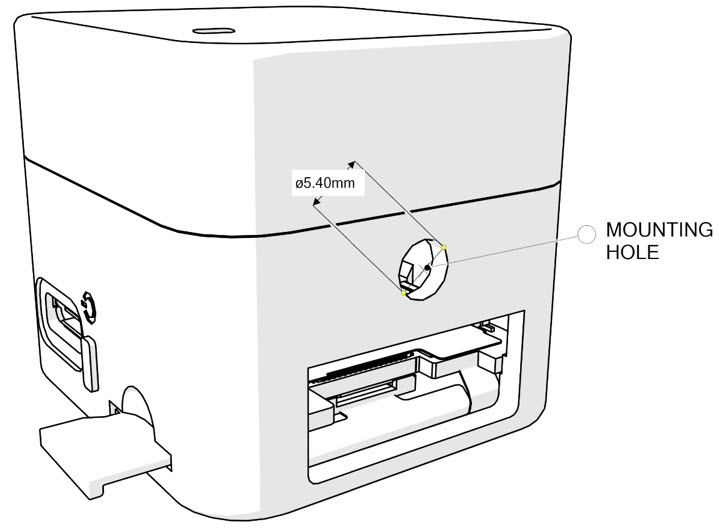

Figure 5. Bottom view of the MAXREFDES178.

There is circular general purpose mounting hole at the bottom side of the MAXREFDES178. The diameter of the hole is 5.40mm. There are no screw threads on this hole.

There is also a rectangular window at this side to assemble the enclosure and boards. This window is normally covered with a sticker.

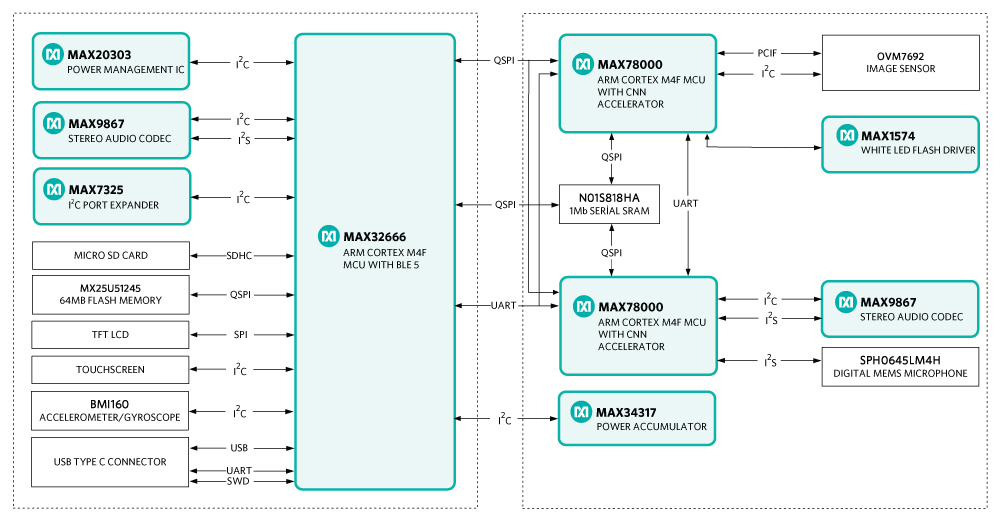

Figure 6. MAXREFDES178 block diagram.

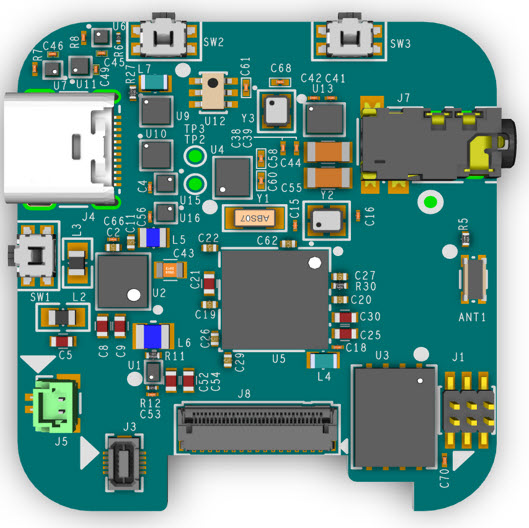

Connectivity Board

X +

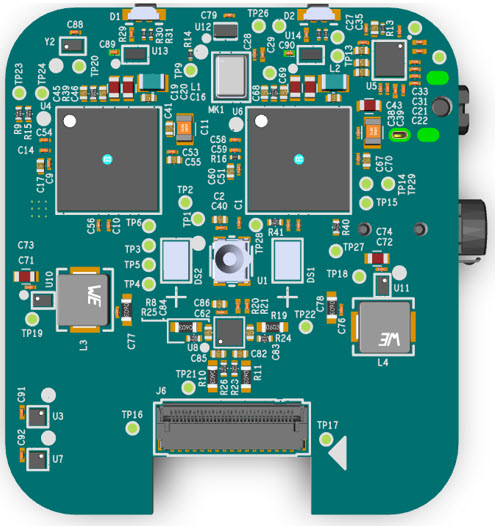

AI Board

X +

Programming and Debugging

X +

Programming and Debugging

The MAXREFDES178 uses the MAXDAP-Type-C DAPLink based debugger for debugging and programming. The OpenOCD tool gets installed among the development toolchain.

The MAXDAP-TYPE-C board has two Micro USB connectors. One Micro USB connector is directly connected to MAX32666 Microcontroller on the MAXREFDES178 Connectivity Board. This connector can be used for data transfer with the MAX32666 Microcontroller. The other Micro USB connector is present on the MAX32625PICO sub-board of MAXDAP-TYPE-C board. This connector is dedicated for debugging/programming operations. In Figure 9, the white Micro-USB cable is connected for debugging/programming and the black cable allows data transfer with MAX32666 Microcontroller.

Both cables can power the MAXREFDES178 and charge the battery. If there is no data transfer needed, connecting only the DAPLink Micro USB cable is sufficient.

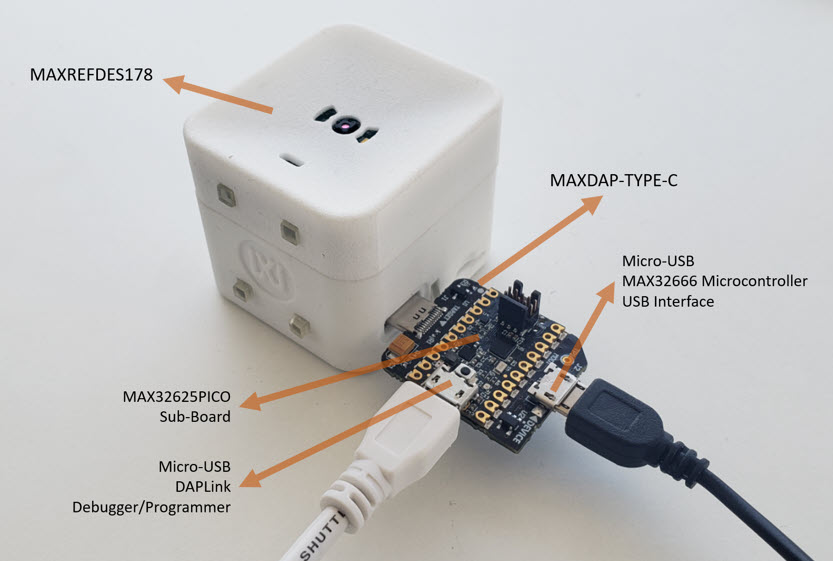

Figure 9. MAXREFDES178 and MAXDAP-Type-C connection.

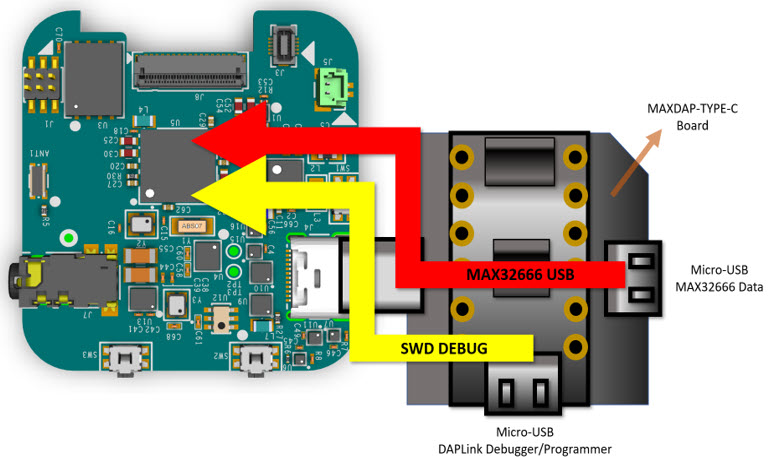

The MAXDAP-TYPE-C board is a carrier board for the MAX32625PICO. It interfaces SWD interface to program/debug the MAX32666 Microcontroller and MAX78000 ICs using USB Type-C pins. The MAXREFDES178 uses several pins to physically carry SWD and UART signals. Figure 10 shows the interface diagram of MAXDAP-TYPE-C when connected to the MAXREFDES178 Connectivity Board.

Figure 10. MAXDAP-TYPE-C interfaces.

If there is no programming and debugging needed, for data transfer or powering the MAX78000, a regular USB Type C cable can be used (Figure11).

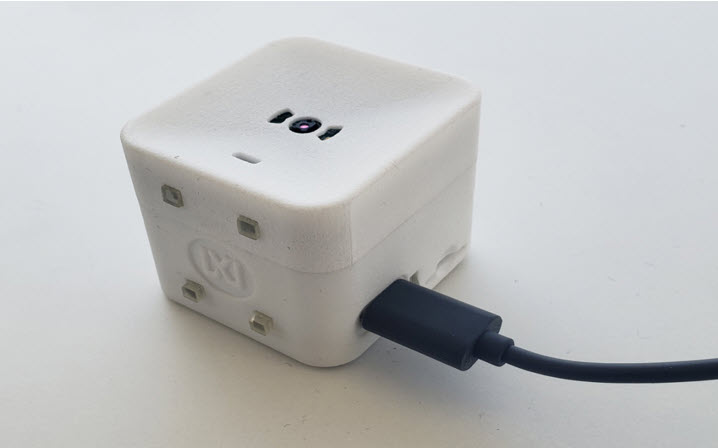

Figure 11. MAXREFDES178 with USB Type-C cable.

a. Programming and Debugging the MAX32666 Microcontroller

The MAX32666 Microcontroller on the Connectivity Board can be programmed through the MAXDAP-TYPE-C board. Connect MAXDAP-TYPE-C to MAXREFDES178 (Figure 12).

There are two Micro-USB connectors on the MAXDAP-TYPE-C board. One connector is for the on-board MAX32625PICO board for programming and debugging. The other Micro-USB connector connects the MAX32666 USB peripheral to a host.

For programming and debugging, the on-board MAX32625PICO board (embedded into the MAXDAP-TYPE-C board) must be connected.

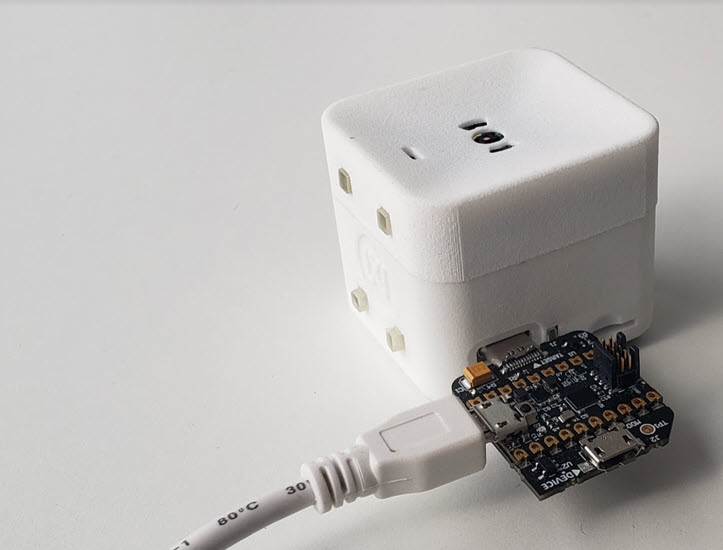

Figure 12. Programming the MAX32666 microcontroller on the connectivity board.

To start programming, the Maxim Integrated MSDK programming and debugging, on-board MAX32625PICO board (embedded into MAXDAP-TYPE-C board) must be connected.

b. Programming and Debugging MAX78000 ICs

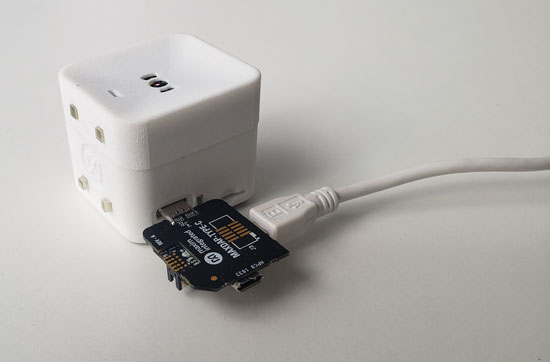

The MAX78000 ICs on the MAXREFDES178 AI Board can also be programmed using the MAXDAP-TYPE-C board through the USB Type-C connector. To access the SWD interface of MAX78000 ICs instead of programming/debugging the MAX32666 microcontroller, plug the MAXDAP-TYPE-C board in reverse alignment Figure 13.

Figure 13. MAXDAP-TYPE-C connection for MAX78000 ICs.

There are two MAX78000 ICs on the MAXREFDES178 AI Board and only one of them can be connected to MAXDAP-TYPE-C through the SWD interface at once. The MAX32666 can control the analog switches on the MAXREFDES178 AI Board using the SLAVE_DEBUG_SEL signal.

The MAX32666 can set the state of this signal by accessing the MAX7325 I2C IO expander. Table 5 describes the SLAVE_DEBUG_SEL signal to select and which MAX78000 IC to connect to the MAXDAP-TYPE-C board through the SWD interface.

Table 5. SLAVE_DEBUG_SEL Signal

SLAVE_DEBUG_SEL STATE	Connection
0	MAX78000 Video is connected to SWD
1	MAX78000 Audio is connected to SWD

Running the Preloaded Demo

X +

Running the Preloaded Demo

The MAXREFDES178 is shipped with preloaded face identification and keyword spotting demos. The source code and binaries of this demo can also be found on the MAXREFDES178 product page

The face identification demo can recognize celebrity faces mentioned in the Face Identification Using MAX78000 application note:

The keyword spotting function is also executed in parallel to celebrity face identification in the second MAX78000 IC on the AI board.

Use the following steps to run the demo:

Plug a USB-C cable to charge the device (Figure 11).
Press power button for one second to turn on the device.
Power LED starts blinking blue.
Maxim Integrated logo, BLE MAC, serial number, and firmware version appear on the LCD.
Device starts with:
- Video and FaceID disabled state.
- Audio and KWS20 (keyword spotting) enabled state.

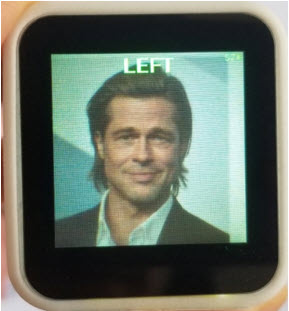

KWS20 classification results appear on top of the LCD.
- KWS20 keywords are: ['up', 'down', 'left', 'right', 'stop', 'go', 'yes', 'no', 'on', 'off', 'one', 'two', 'three', 'four', 'five', 'six', 'seven', 'eight', 'nine', 'zero'].
- KWS20 classification result text changes color according to KWS20 classification confidence:
  - Red → Unknown keyword.
  - Yellow → Keyword detected with low confidence.
  - Green → Keyword detected with high confidence.
- 'On' and 'Off' voice commands (high confidence) enable and disable LCD.

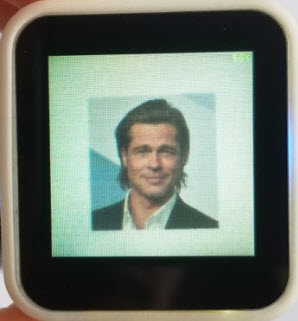

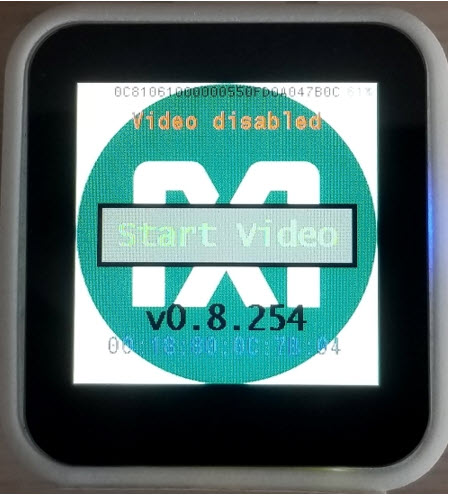

- Click 'Start Video' on LCD to start video capturing.
- 'Go' and 'Stop' voice commands (high confidence) enable and disable FaceID.

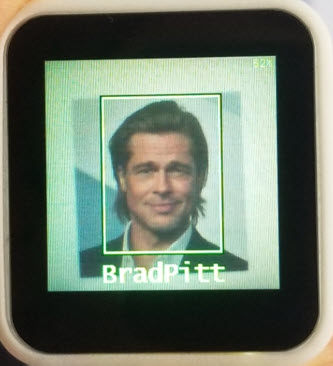

- FaceID frame appears in the center of the LCD when FaceID is enabled.

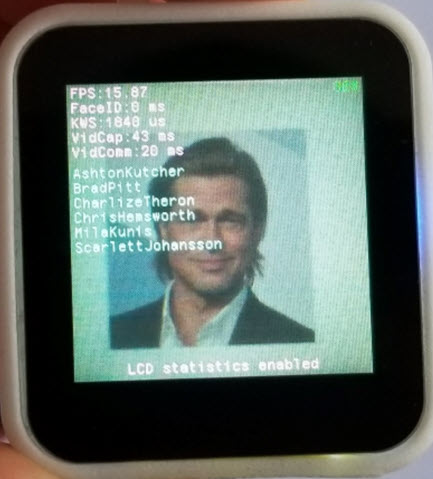

- FaceID classification results appear on bottom of the LCD.
- Battery State of Charge (SOC) is shown in right top corner of the LCD. SOC changes color according to charge state:
- Button behavior:
- If inactivity timer is enabled (enabled by default):
- Power LED turns solid blue when BLE peer is connected
