MAXREFDES106
Health Sensor Platform 4.0
顶部
概览
设计资源
设计与集成文件
- MRD106 Ambient Temperature

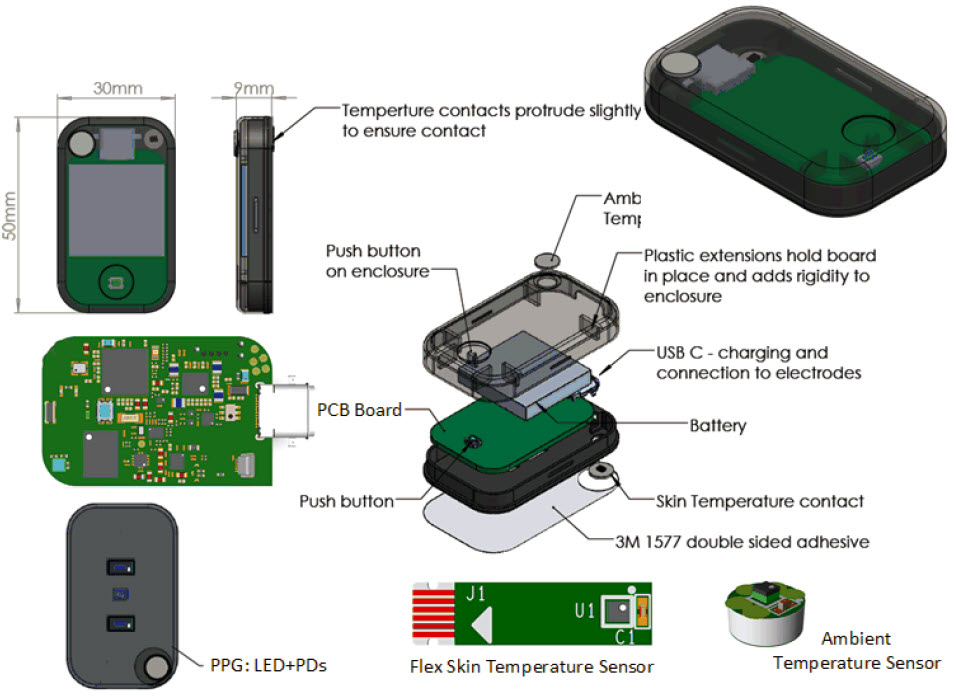

- MRD106 Enclosure Mechanical Design
- MRD106 Evkit Board
- MRD106 Skin Temperature
评估硬件
产品型号带"Z"表示符合RoHS标准。评估此电路需要下列选中的电路板
- MAXREFDES106# ($650.00) Health Sensor Platform 4.0
描述
Description

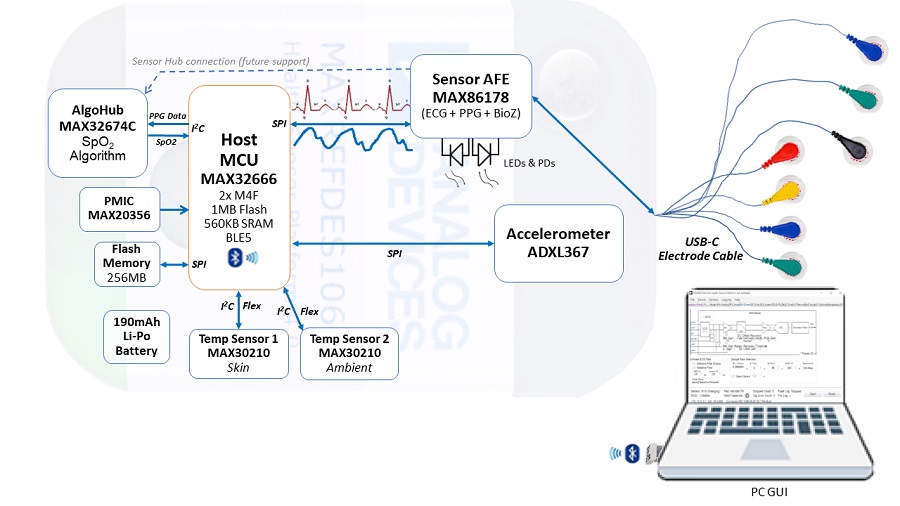

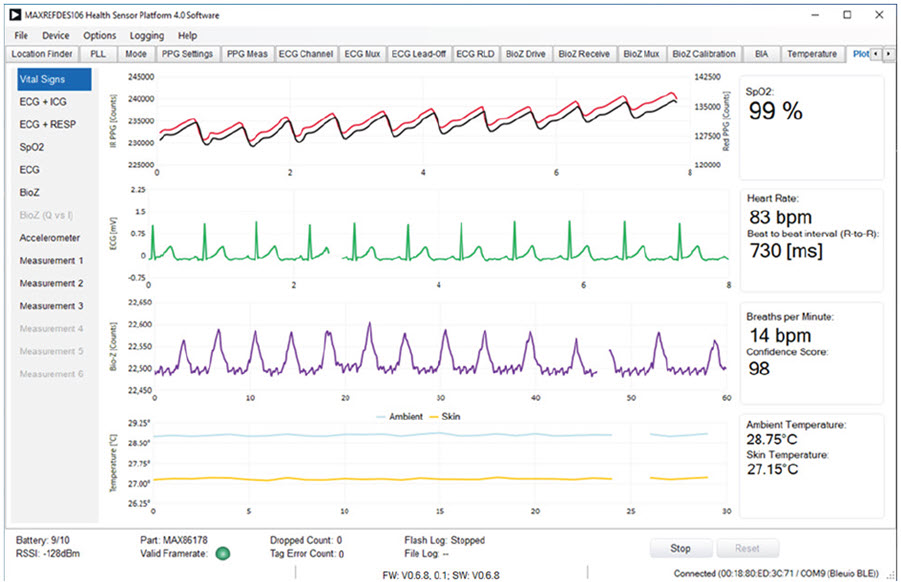

The MAXREFDES106# Health System Platform 4.0 is a chest patch reference design that performs vital sign monitoring (VSM). The system uses high sensitivity photoplethysmography (PPG), electrocardiogram (ECG), and bioimpedance (BioZ), Temperature biosensors and algorithms measure blood oxygenation (SpO2), heart rate (HR), respiration rate (RR), impedance cardiography (ICG), body impedance analysis (BIA), and skin/ambient temperatures. The vital signs data can be streamed through low-energy Bluetooth® to a PC graphical user interface (GUI) for demonstration, evaluation, and customized development.
优势和特点
Features
- Photoplethysmography (PPG)
- Biopotential Measurement (ECG)
- Bioimpedance Measurement (BioZ)
- Skin and Ambient Temperature
- Embedded Heart Rate (HR), Respiration Rate (RR), Oxygen Saturation (SpO2), Impedance Cardiography (ICG), and Body Impedance Analysis (BIA) Algorithms
- Location Finder to Determine the Optimal Placement Location on the Chest
- Motion and Acceleration

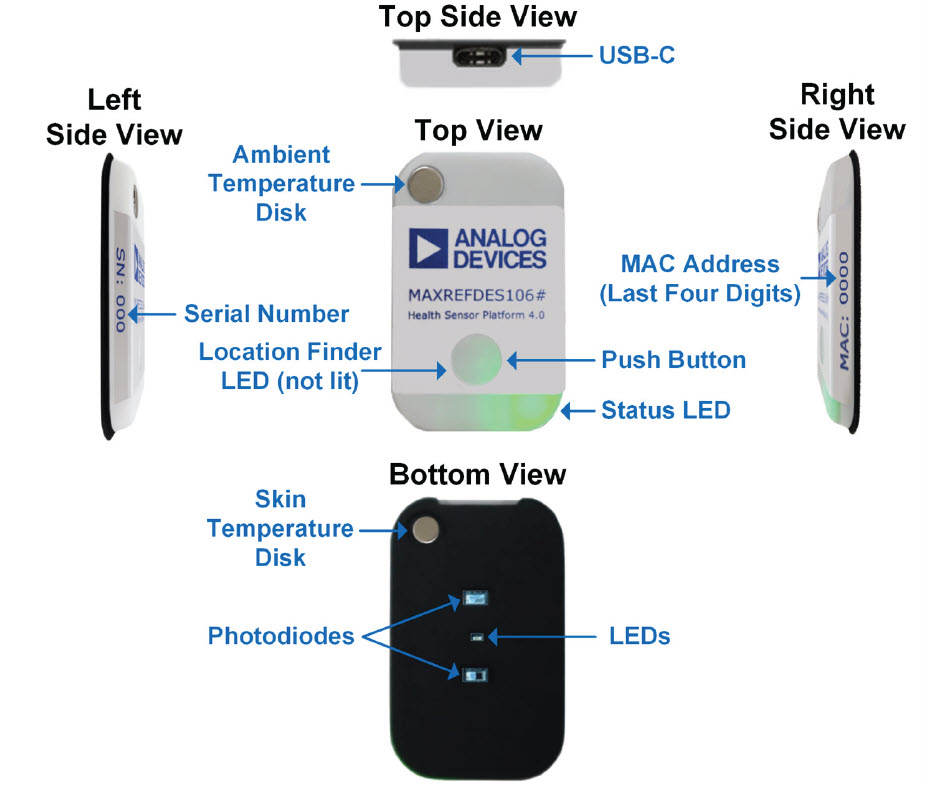

- Chest-Worn Form Factor
Application
- Remote Patient Monitoring/Vital Sign Patch
重要通知及免责声明
请阅读关于ADI设计信息和资源的参考设计免责声明。
详情
Tools & Simulations
Software Development
文件和资源
-
MAXREFDES106 Design Files2022/12/15ZIP12 M
-
MAXREFDES106: Health Sensor Platform 4.0 User Guide (Rev. 2)2024/9/3PDF9 M
-
Unboxing MAXREFDES1062024/12/12 -
ADI´s Health Sensor Platform 4.02024/12/12 -
Body Vitals on Wearables: Your Body, Talking to You2024/12/12 -
ADI健康传感器平台4.02024/12/12
